3
Menus and Functions
EN

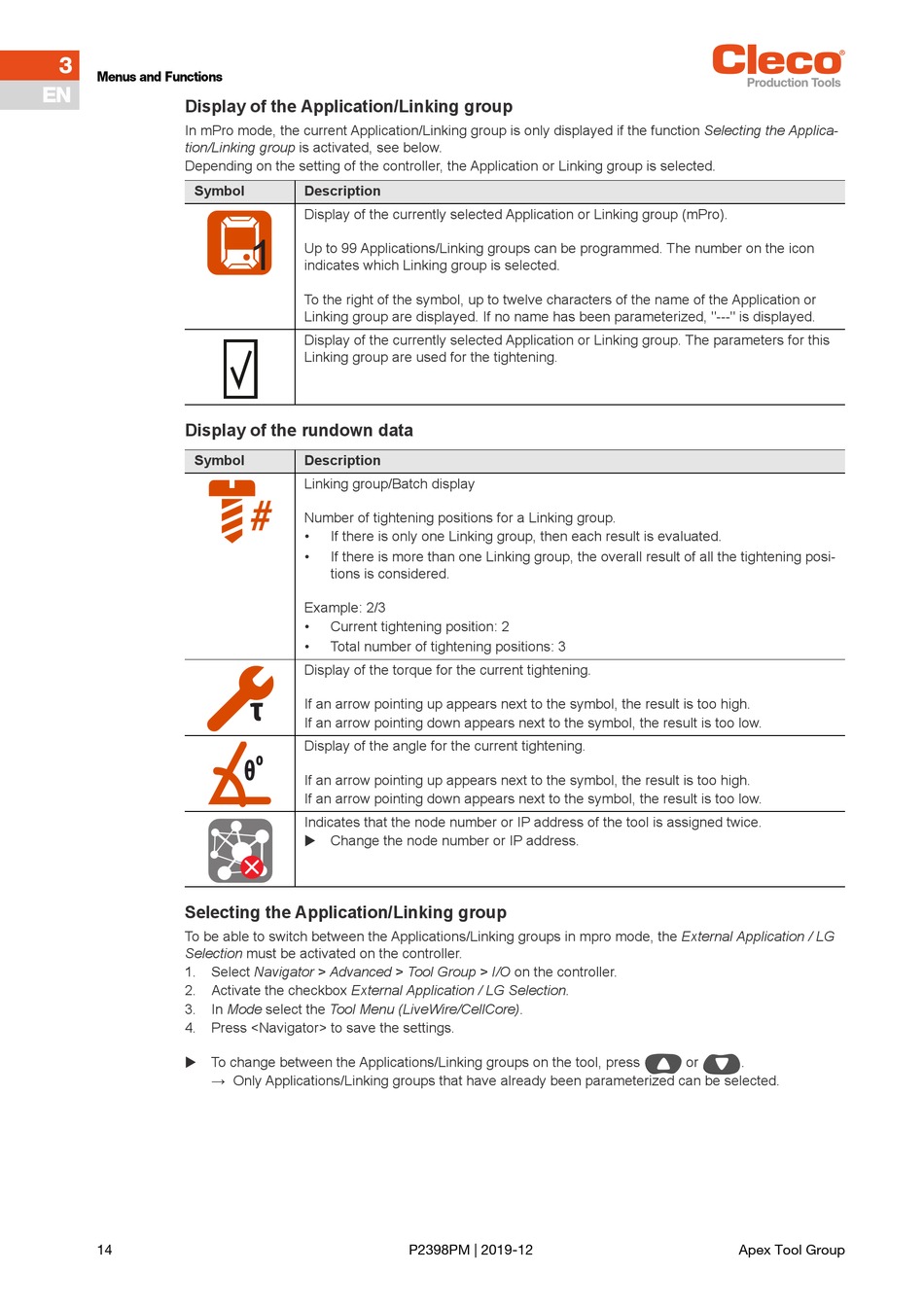

Display of the Application/Linking group
In mPro mode, the current Application/Linking group is only displayed if the function Selecting the Applica-
tion/Linking group is activated, see below.
Depending on the setting of the controller, the Application or Linking group is selected.
Symbol
Display of the rundown data
Symbol
Selecting the Application/Linking group
To be able to switch between the Applications/Linking groups in mpro mode, the External Application / LG
Selection must be activated on the controller.
1.
Select Navigator > Advanced > Tool Group > I/O on the controller.
2.
Activate the checkbox External Application / LG Selection.
3.
In Mode select the Tool Menu (LiveWire/CellCore).
4.
Press <Navigator> to save the settings.
To change between the Applications/Linking groups on the tool, press
→ Only Applications/Linking groups that have already been parameterized can be selected.
14
Description
Display of the currently selected Application or Linking group (mPro).
Up to 99 Applications/Linking groups can be programmed. The number on the icon
indicates which Linking group is selected.
To the right of the symbol, up to twelve characters of the name of the Application or
Linking group are displayed. If no name has been parameterized, "---" is displayed.
Display of the currently selected Application or Linking group. The parameters for this
Linking group are used for the tightening.
Description
Linking group/Batch display
Number of tightening positions for a Linking group.
•
If there is only one Linking group, then each result is evaluated.
•
If there is more than one Linking group, the overall result of all the tightening posi-
tions is considered.
Example: 2/3
•
Current tightening position: 2
•
Total number of tightening positions: 3
Display of the torque for the current tightening.
If an arrow pointing up appears next to the symbol, the result is too high.
If an arrow pointing down appears next to the symbol, the result is too low.
Display of the angle for the current tightening.
If an arrow pointing up appears next to the symbol, the result is too high.
If an arrow pointing down appears next to the symbol, the result is too low.
Indicates that the node number or IP address of the tool is assigned twice.
Change the node number or IP address.
P2398PM | 2019-12
or
.
Apex Tool Group
