3.4

Run screen

The run screen displays the rundown data for the tightening sequence. The appearance of the run screen
differs depending on whether the mPro mode or the FastApps mode is selected.
3/10

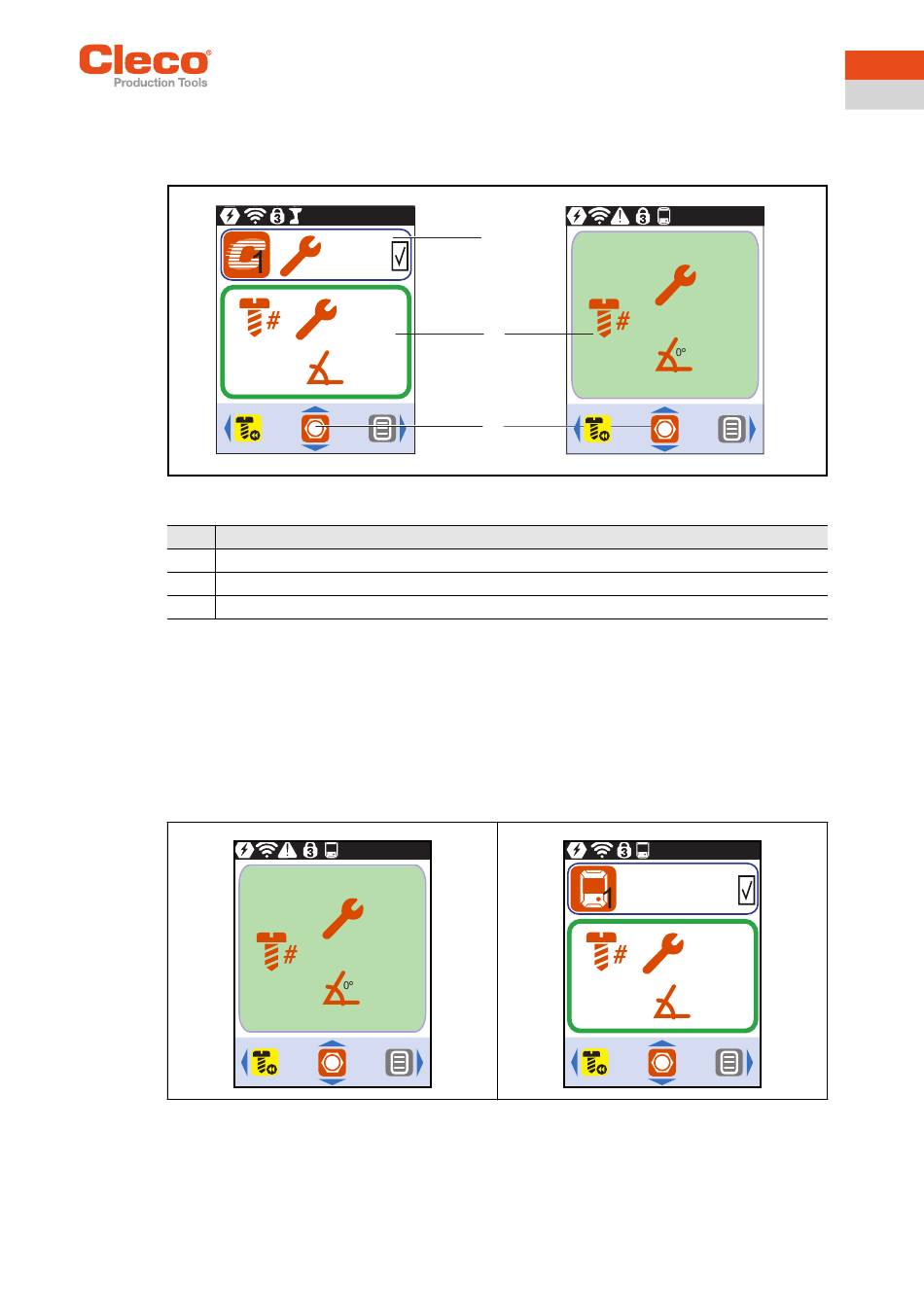

Abb. 3-2: Run screen in FastApps or mPro mode
Item Description
1 Display of the Application/Linking group/FastApp
2 Display of the rundown data
3 Change Application/Linking group/FastApp
For both modes, the following applies:
• Green background: The result of a tightening sequence is OK.
• Green-blue flashing: The overall result for all the tightening positions (batch) is OK.
• Red background: The result of a tightening sequence is NOK.
• Flashing red: The overall result of all the tightening sequences is NOK. This is the case if at least one
tightening position is NOK.
3.4.1

Run screen in the mPro mode

The linking group for the tightening sequence is selected in the mPro mode on the controller.
Abb. 3-3: Run screen in the mPro mode without
External Application / LG Selection
Apex Tool Group
15 Nm
τ
15.7 Nm
τ
270°
12 Nm
τ
3/3
27°
P2398PM | 2019-12
1
2
3/3
3
123456789
2/5
Abb. 3-4: Run screen in the mPro mode with
External Application / LG Selection
Menus and Functions
12 Nm
τ
27°
25 Nm
τ
190°
