Lcd Setup; Header - Cleco CellCore CCBA Programming Manual

3
Menus and Functions
EN
3.2

LCD setup

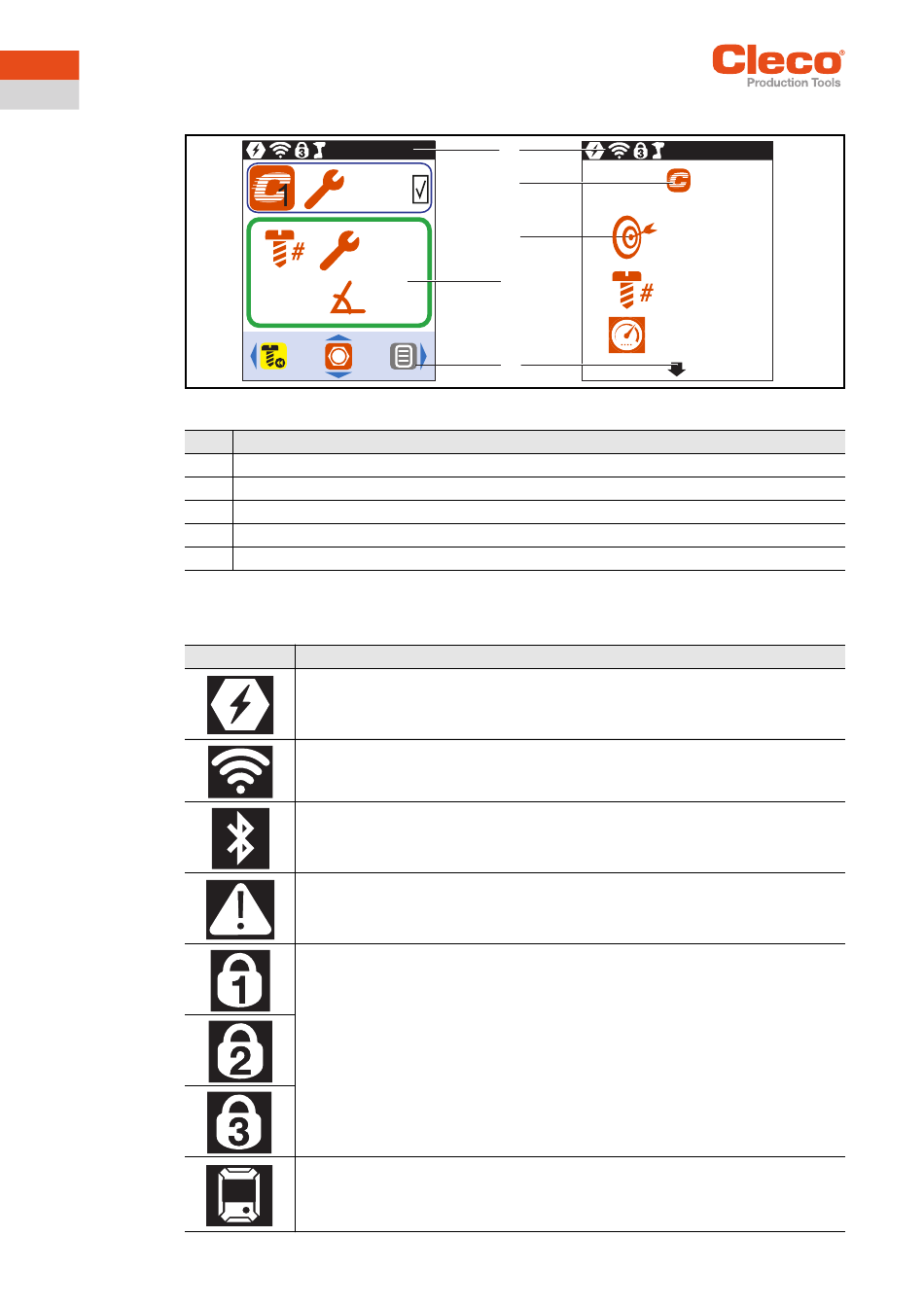

Fig. 3-1: Setup of the menus using the run screen and a submenu as an example
Item
1
2
3
4
5
3.2.1

Header

The symbols in the header indicate which functions are activated.
Symbol
10
15 Nm
τ
15.7 Nm
τ
3/10
270°
Description
Header
Symbol of the current menu
Submenus and parameters
Run schreen
Footer
Description
Battery is plugged in.
WLAN connection is available.
Bluetooth connection is available.
Displayed in the Diagnostics menu and with warnings.
PIN is required.
The number on the lock indicates the active access level.
mPro mode is activated.
