Service and Maintenance

4.4.3 Lubricant Volume

The recommended lubricant quantity for the particular
mounting position is indicated on the motor nameplate.
When filling, ensure that the upper gear unit components
are also well lubricated.
P1

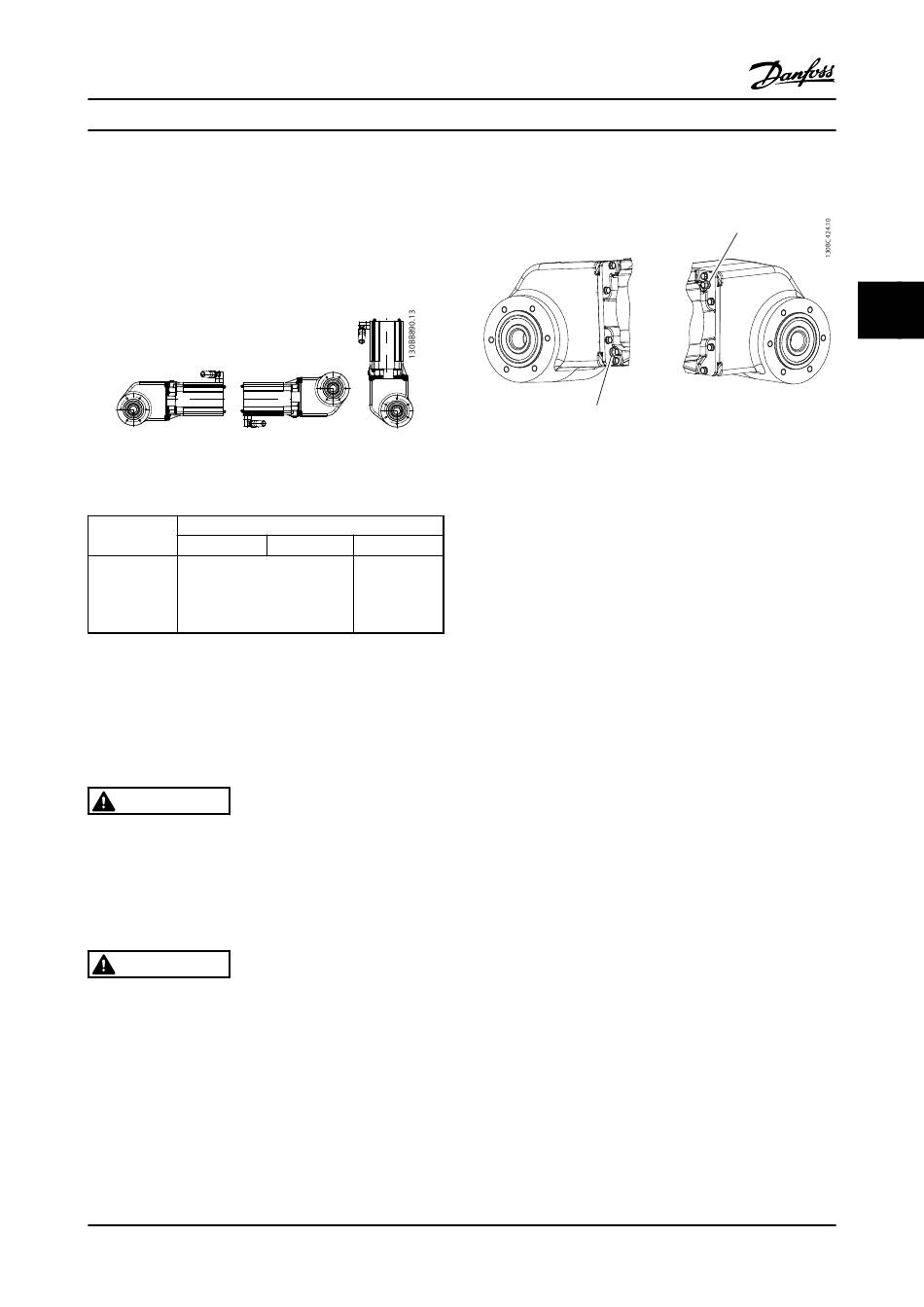

Figure 4.2 Mounting Positions
Mounting Position
P1 1)
Lubricant
Volume for
2.2 l
®
VLT
OneGearDrive
Table 4.6 Lubricant Volume in Litres
1) P1 is no longer available in the Danfoss DRIVECAT configurator.
Use P2 also for P1 installations.

4.4.4 Changing the Oil

CAUTION
Danger of burns
®
The surface of the VLT OneGearDrive can reach high
temperatures during operation.
•
Do not touch the VLT
cooled down.
CAUTION
Danger of burns
®
The oil in the VLT OneGearDrive reaches high temper-
atures during operation.
•
Do not carry out the oil change until the oil has
cooled down sufficiently.
®
VLT OneGearDrive Instruction Manual
P2 P3
P2 P3
2.9 l
®
OneGearDrive until it has
®
MG75C322 - VLT is a registered Danfoss trademark
1
®
Figure 4.3 VLT OneGearDrive Oil Screws 1 and 2
Draining the oil
®
1.
Once the VLT OneGearDrive has cooled down,
remove it from your system
®
2.
Bring the VLT OneGearDrive into a vertical
position and remove oil screws 1 and 2
3. ®
Turn the VLT OneGearDrive into a horizontal
position and drain the oil through screw hole 1
into a suitable container
4. ®
Turn the VLT OneGearDrive back into a vertical
position
2
4 4
