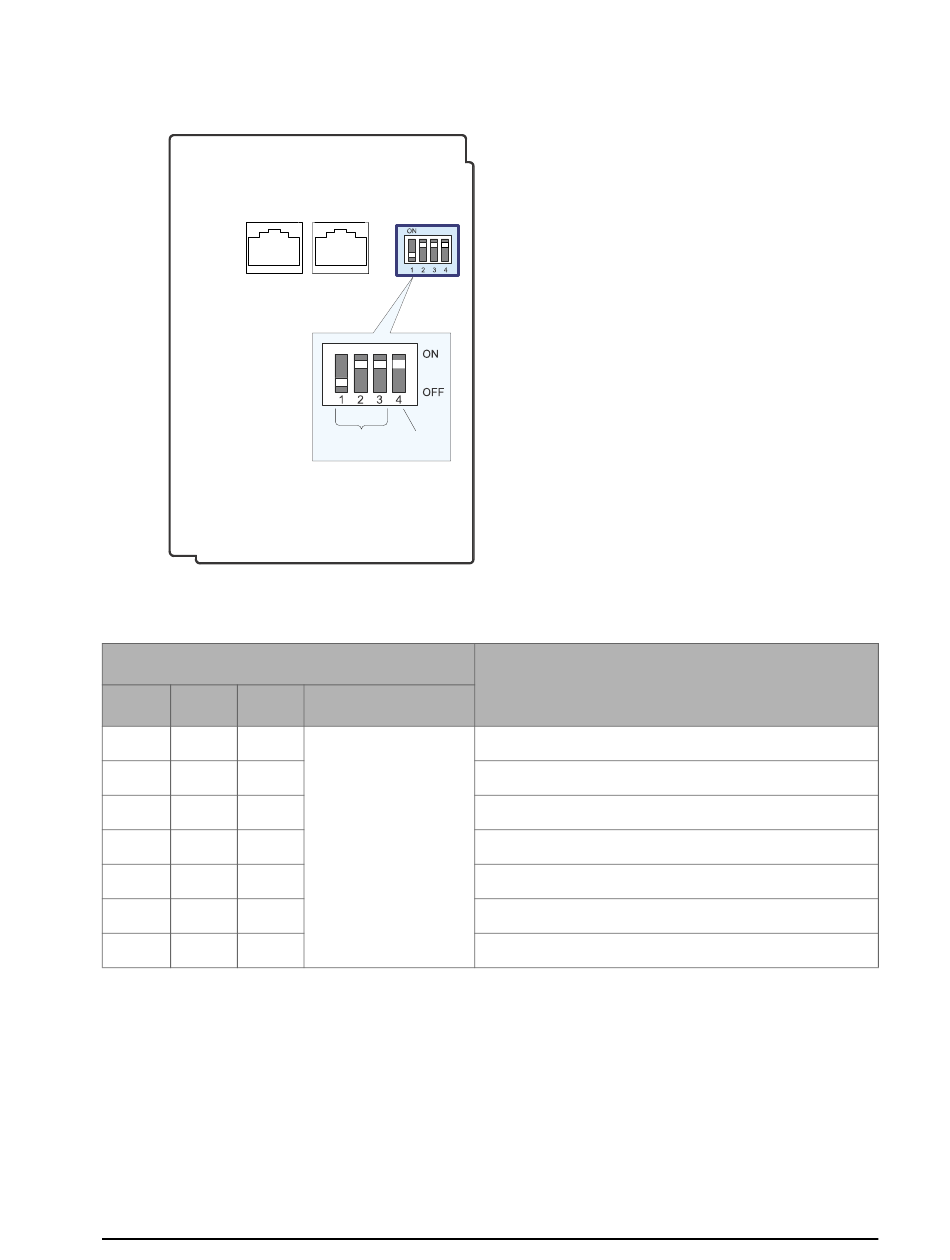

Figure 55: Setting the Allure EC-Smart-Air or EC-Smart-Comfort communicating sensor's Subnet ID
Address
Allure EC-Smart-Comfort / EC-Smart-Air
Front Cover, Interior View
RJ-45 S ubnetwork P as s -
Through Connec tors
Table 20: Allure EC-Smart-Air or EC-Smart-Comfort communicating sensor's Subnet ID Address DIP Switch
Settings
Switch Position
1 2 3
OFF OFF OFF
ON OFF OFF
OFF ON OFF
ON ON OFF
OFF OFF ON
ON OFF ON
OFF ON ON
Figure 55 shows an example of how to set the Allure EC-Smart-Air or EC-Smart-Comfort com-
municating sensor's Subnet ID address DIP switch to 6 and how to set the EOL termination to
ON.
Network Guide
S et the S ubnet E OL
ID A ddress Termination
Allure EC-Smart-Air or EC-Smart-Comfort
communicating sensor's Subnet ID Address
4
OFF: EOL disabled 1
ON: EOL enabled
1
2
3
4
5
6
