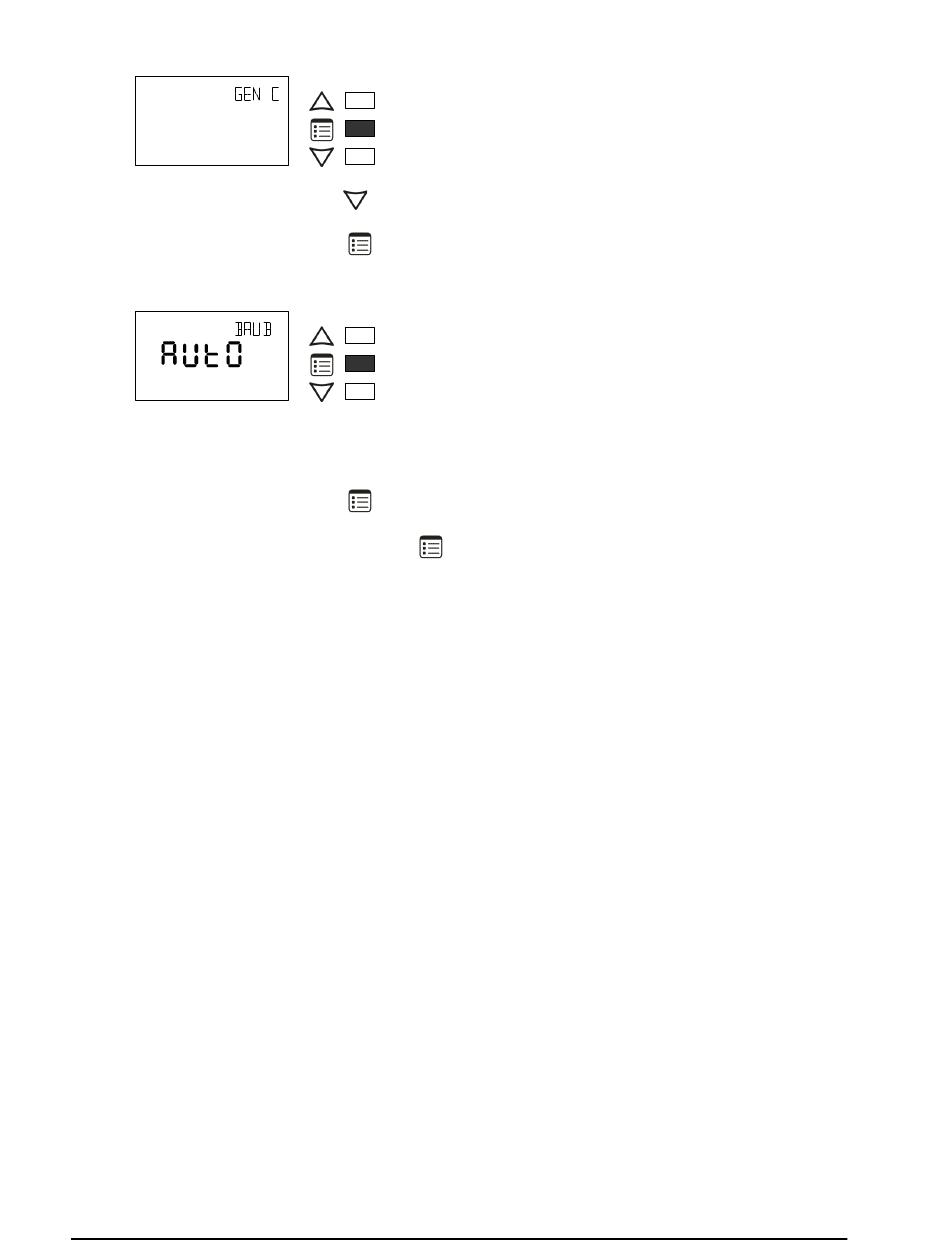

5. Press the down button
6. Press the Menu button
current controller's baud rate is shown.
7. Use the up and down buttons to set the controller's baud rate. AUTO detects and uses the
baud rate currently being used by the BACnet MS/TP network.
8. Press the Menu button
9. Press and hold the Menu button
Connecting to the LAN through an Allure EC-Smart-Vue Sen-
sor
The Cat 5e Cable subnetwork data bus extends the LAN to the Allure EC-Smart-Vue sensor to
provide convenient network access for maintenance and troubleshooting purposes.
The next sections explain how to bring to the L
Allure EC-Smart-Vue sensor. Both are handled slightly differently since there can only be a
limited number of enabled controllers on a L
itations.
