Network Architecture

EC-Net Network Architecture

The following EC-Net architecture diagrams show the typical network connections for L
W controllers.
ORKS

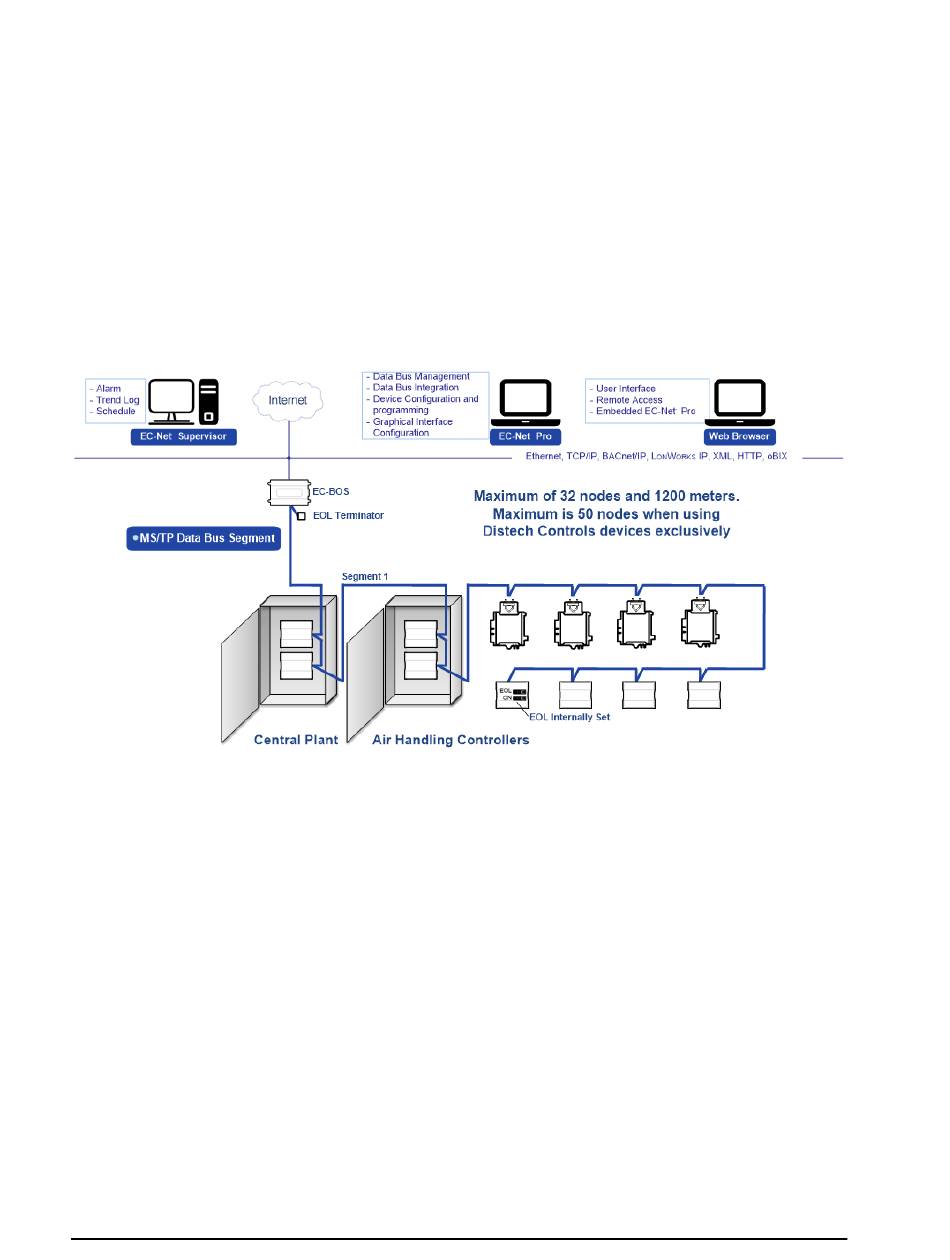

Single-Segment EC-Net Network
A single-segment EC-Net Network shown with EC-Net Supervisor and EC-Net Pro.
Figure 30: Single-Segment EC-Net Network
Inter-Building L
L W network connections between buildings must be made using TCP/IP with FOX as
ON ORKS
shown below.
52
W Connection
ON ORKS
-
ON
Network Guide
