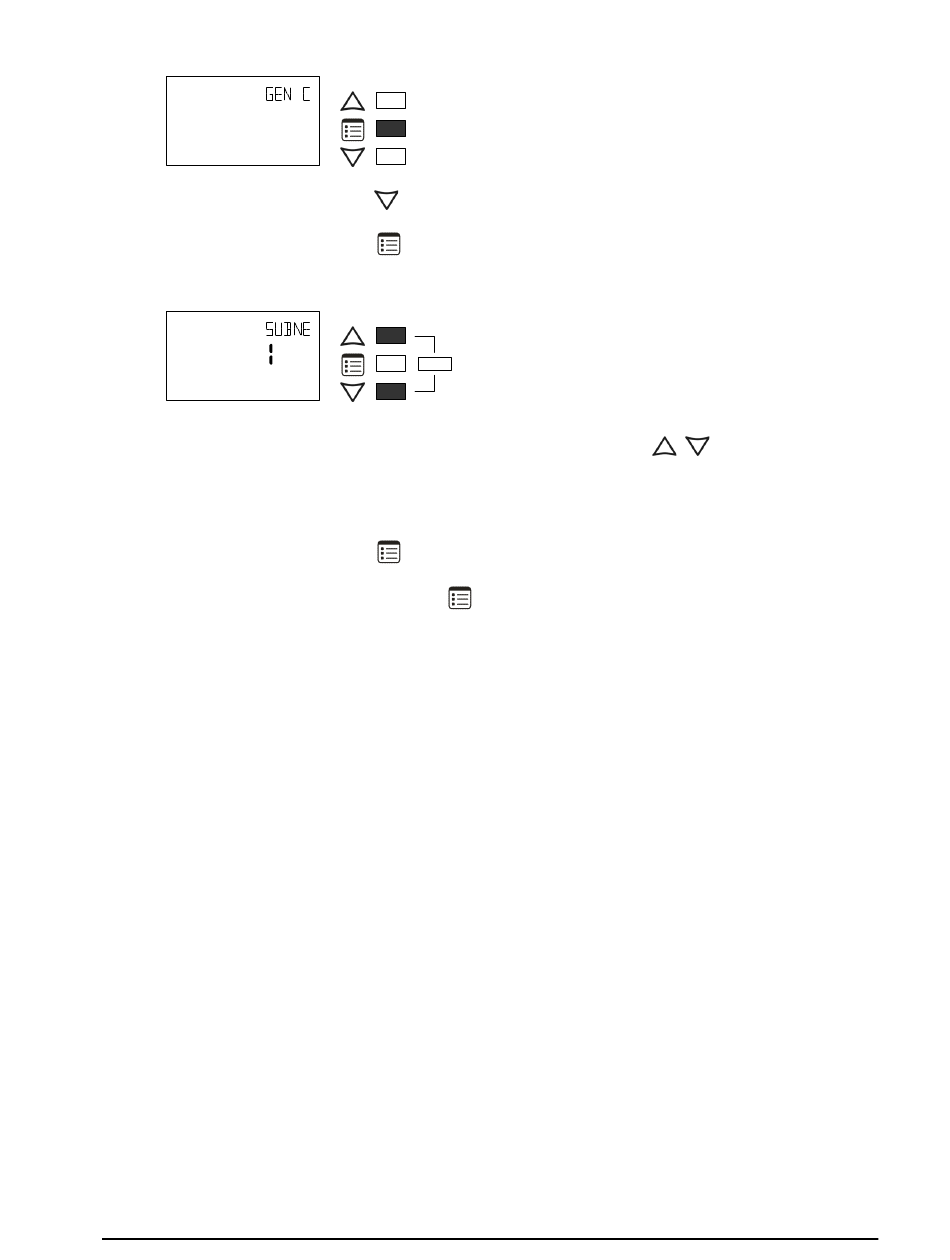

5. Press the down button
6. Press the Menu button
current controller's Subnet ID is shown.
7. For commissioning purposes, use the up and down buttons
Subnet ID to 1. Tip: Hold down either the up or down button to fast-advance the display
value. Otherwise use the up and down buttons to set the controller's Subnet ID to the
ComSensor block instance value programmed in the controller with EC-gfxProgram.
8. Press the Menu button
9. Press and hold the Menu button
The Allure EC-Smart-Vue sensor can now be used to go from one ECB/ECL Series controller
to the next for commissioning purposes.
When the controller has been programmed, each connected Allure EC-Smart-Vue's Sensor
must be assigned a unique Subnet ID.

Commissioning Controllers

To commission a controller with a MAC Address DIP switch located on the faceplate or under
the cover (in the case of an ECB-103 or ECB-VAV Series controller - when equipped), first set
the DIP switch to 0 (all off - this is the factory default setting when the controller is shipped).
When using an Allure EC-Smart-Vue sensor for commissioning a controller (before code is
downloaded to the controller from EC-gfxProgram), connect an Allure EC-Smart-Vue sensor
to the controller with its Subnet ID set to 1.
For ECB-VAV and ECL-VAV Series controllers, commissioning can be used to perform appli-
cation selection if needed. Applications are preloaded programs that enable the ECB-VAV and
ECL-VAV to control a typical VAV box. See the ECL-VAV or ECB-VAV Preloaded Application
User Guide for more Information.
Network Guide
Controller Installation and Maintenance Tasks with an Allure EC-Smart-Vue Sensor
Screen Timeout: 30 seconds
OR
once to enter the GEN CFG submenu
several times until SUBNET ID appears on the display. The
Screen Timeout: 30 seconds
OR
once to apply the value.
for 5 seconds to exit the configuration menu.
to set the controller's
