Commissioning a Controller with an Allure EC-
Smart-Vue Sensor
Commissioning a controller with an Allure EC-Smart-Vue sensor involves the following tasks:
• Set the Allure EC-Smart-Vue sensor's Subnet ID.
• For BACnet controllers: Optionally set the controller's MAC address.
• For controllers that support preloaded applications: Select the controller's preloaded appli-
cation to use. See the ECL-VAV or ECB-VAV Preloaded Application User Guide for more
Information.
• For BACnet controllers: Set the controller's baud rate, if necessary.
• For maintenance and troubleshooting purposes, the Allure EC-Smart-Vue sensor can be
used to temporarily connect to the LAN.

Setting the Allure EC-Smart-Vue Sensor's Subnet ID Address

An Allure EC-Smart-Vue sensor's Subnet ID corresponds to the ComSensor block instance
programmed in the controller with EC-gfxProgram. The Allure EC-Smart-Vue sensor's Subnet
ID can be set in the procedure below.
ECB and ECL Series controllers can be commissioned with an Allure EC-Smart-Vue sensor.
The default Subnet ID for an Allure EC-Smart-Vue sensor is 1. To commission an ECB / ECL
Series controller, the Allure EC-Smart-Vue sensor's Subnet ID must be set to 1. If the Allure
EC-Smart-Vue sensor's Subnet ID has been set to another value (for example, the display
flashes error code 1 with the Bell icon when the Allure EC-Smart-Vue sensor is connected to a
controller for commissioning), change the Subnet ID to 1 as follows:
1. Connect an Allure EC-Smart-Vue sensor to the controller with a Cat 5e patch cable. Wait
for the Bell icon and the number 1 to flash on the display.

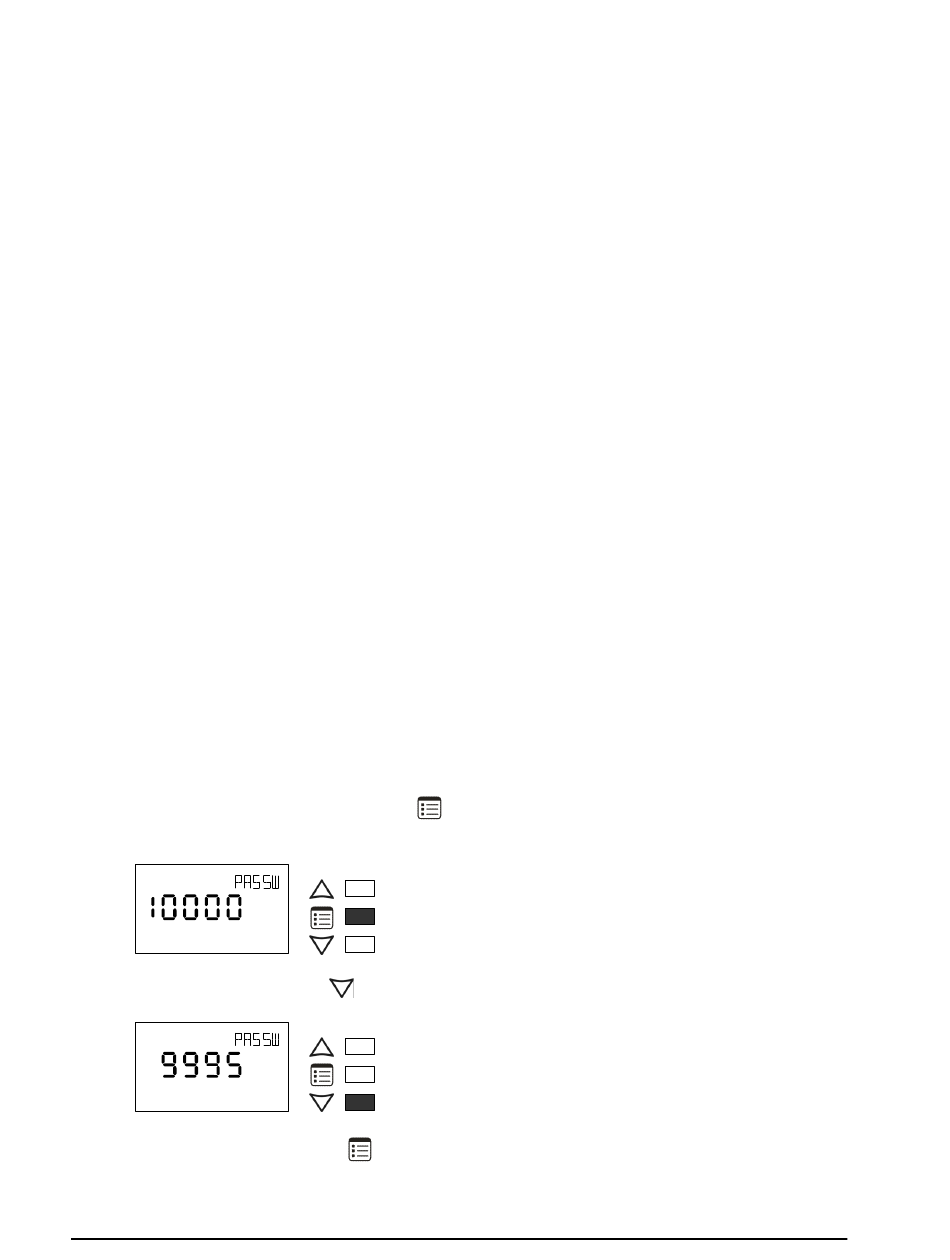

2. Press and hold the Menu button
shown on the display.
3. Use the down button
4. Press the Menu button
GEN CFG menu appears on the display.
98
for 5 seconds to enter the password menu. 10000 is
Screen Timeout: 15 seconds
OR
to set the number to 9995 (this is the default password).
Screen Timeout: 15 seconds
OR
to submit the password. Upon submitting the password, the
