Below is a graphical representation of the Alarm Matrix Pass/Fail view settings:
Overall Inspection
Results for Repeat
Number
PASS Output
FAIL Output
Within the Alarm Matrix Pass/Fail view, additional functionality is available when the following settings are enabled
in the LVS7000.ini file: UsePassFailMethod=1 and UseAcknowledgementIO=1. Example:
[Alarm matrix]
UseAcknowledgementIO=1
UsePassFailMethod=1

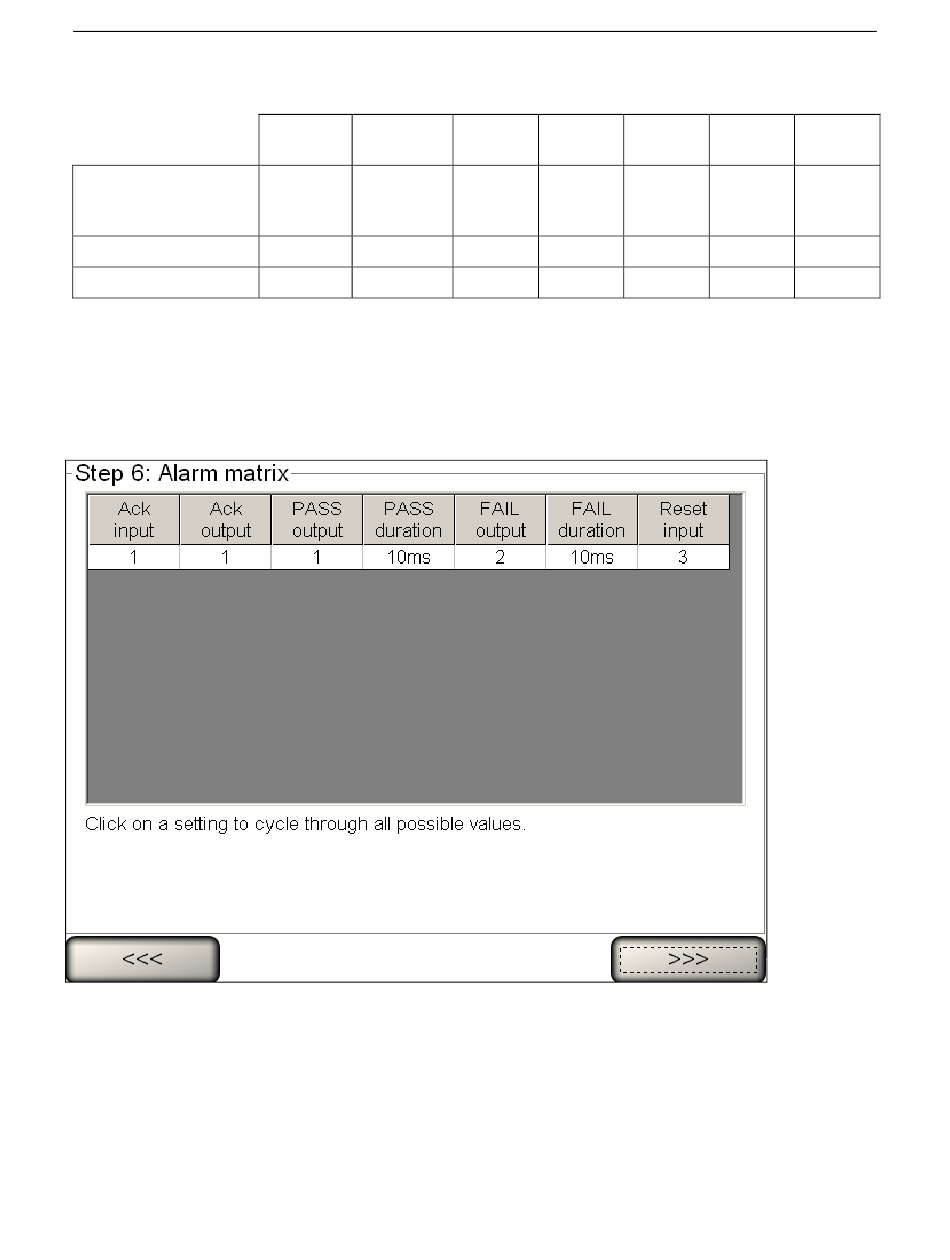

When the above settings are enabled, the Alarm Matrix appears as shown below.
Each column is described in the following table:
LVS-7000 Operations Manual Version 5.6.X
Repeat Repeat
1 2
PASS FAIL
On Off
Off On
LVS-7000 Operations Manual Version 5.6.X
Repeat Repeat Repeat
3 4
PASS PASS PASS
On On
Off Off
Repeat Repeat
5 6 7
FAIL PASS
On Off On
Off On Off
