b. Set Image Location

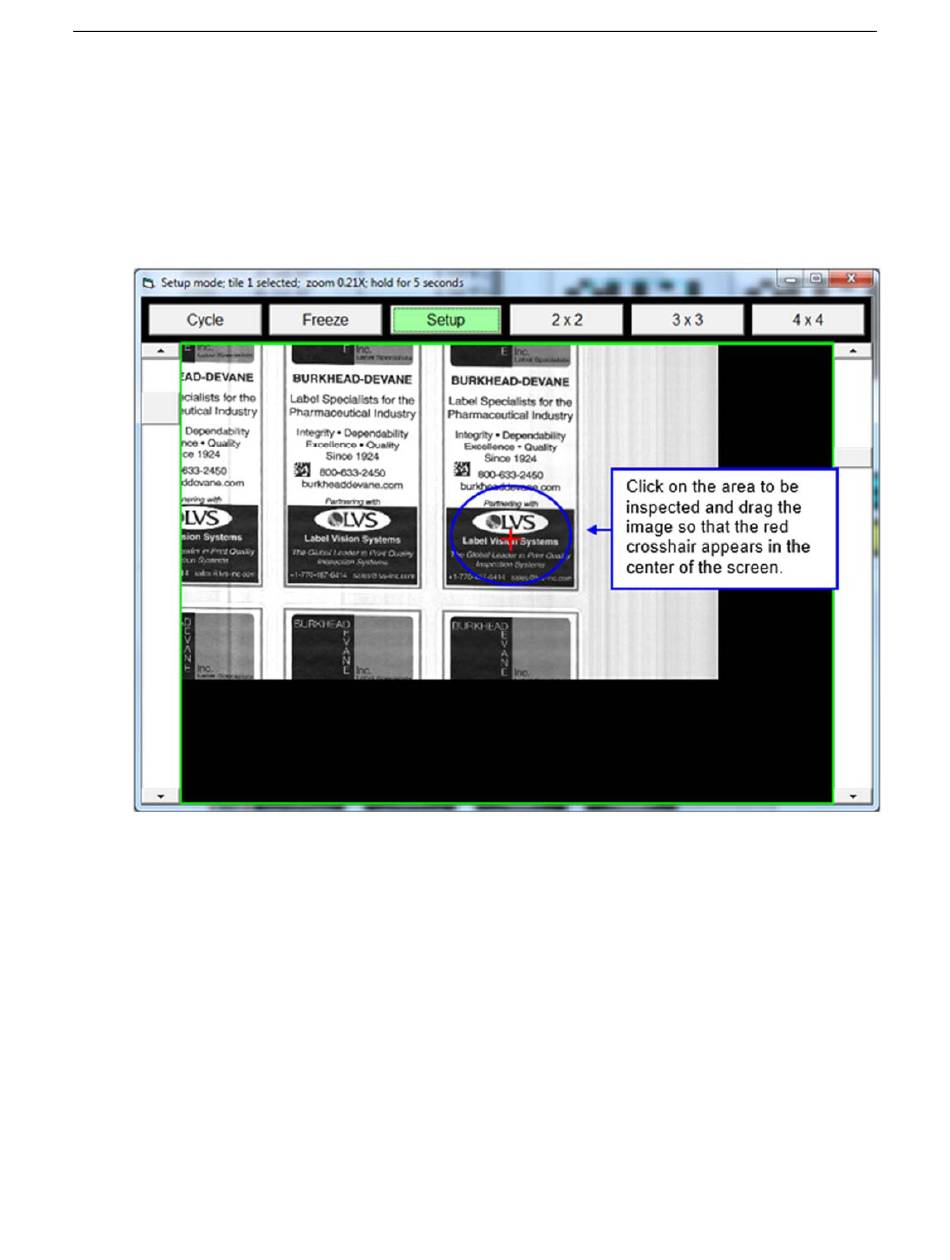

Set the image location (the area of the image to be inspected and displayed in "Cycle" mode) by left
clicking your mouse on the area of interest in the image (the red crosshair will move to that area) and
while pressing down the left mouse button, drag the image so that the red crosshair appears in the
center of the AutoScan screen. Then, release the left mouse button.
The zoom function (which is configured in the next step) will center and zoom in on the red crosshair.
