Sector Type 5: Blemish
To use the Blemish sector type, follow the steps below.

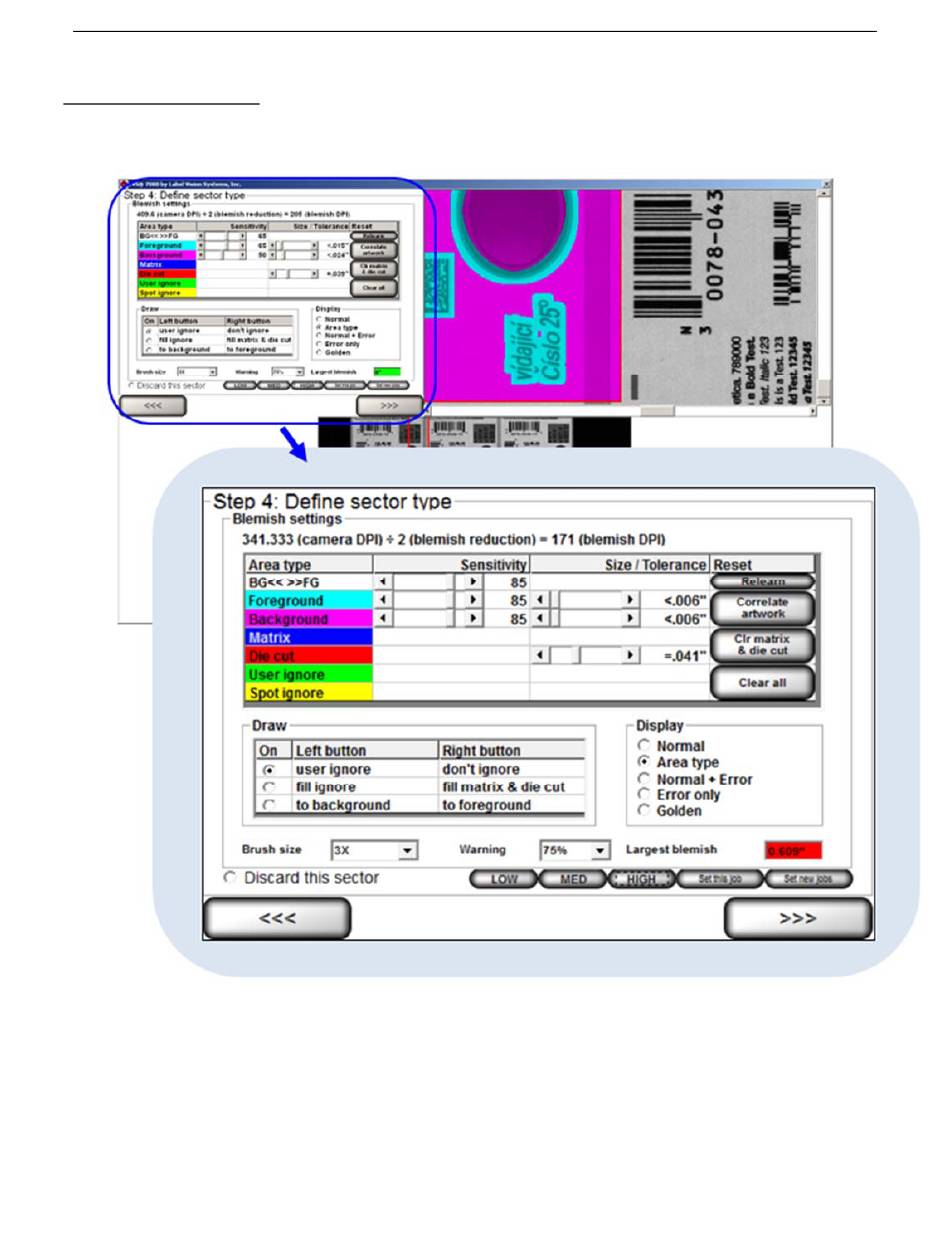

1. Select Blemish on the Step 4: Define Sector Type screen; the following screen appears.
2. The software automatically learns the first image it sees after the first sector has been drawn. If the image is
not the correct one, or you would like to put a different image into the field of view, click the Relearn button
and the software will accept the next image it sees within that sector. This saved image is called the "Golden
image". The entire process of understanding blemishes is done by comparing the "Golden image" to the Job
image.
