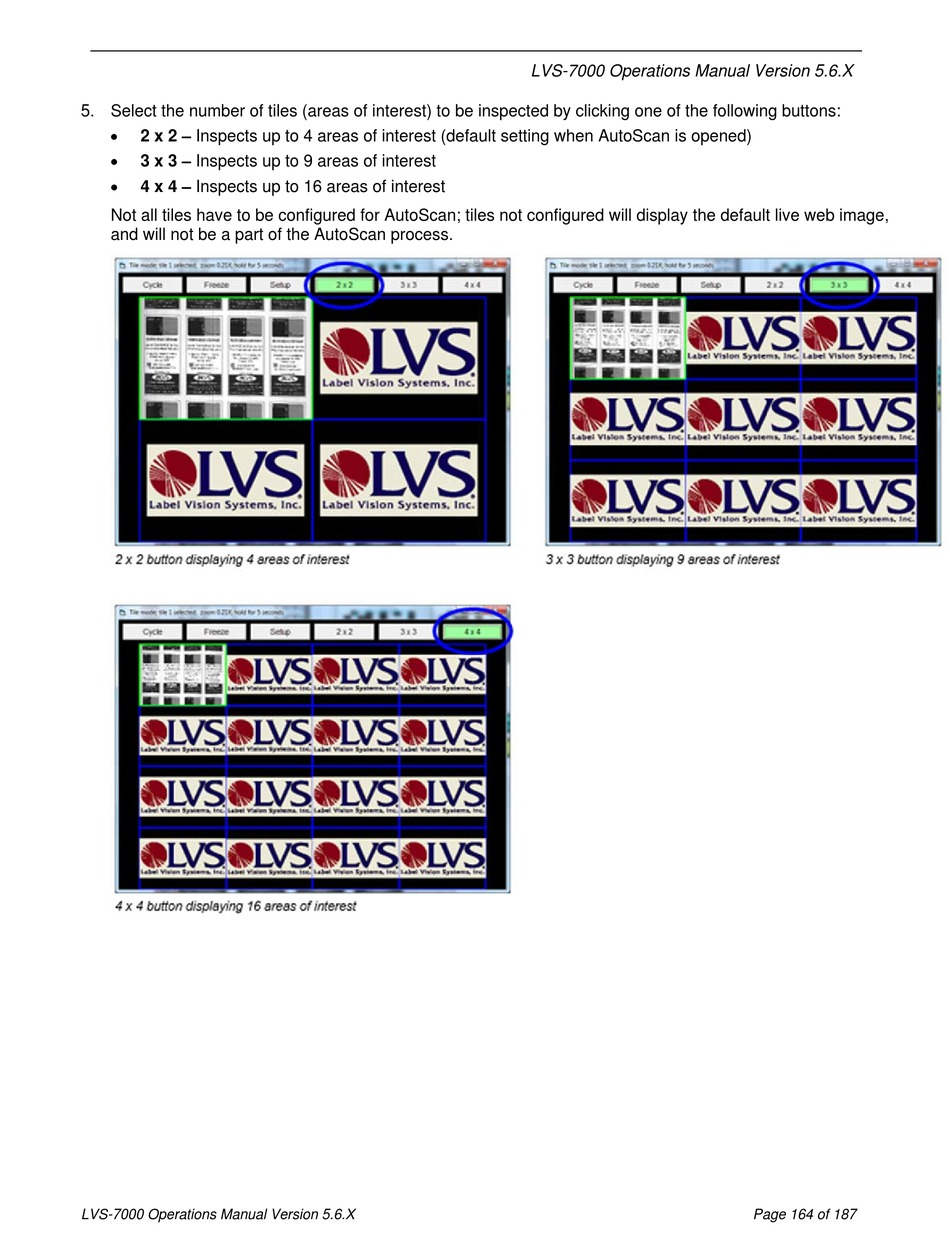

5. Select the number of tiles (areas of interest) to be inspected by clicking one of the following buttons:

2 x 2 – Inspects up to 4 areas of interest (default setting when AutoScan is opened)

3 x 3 – Inspects up to 9 areas of interest

4 x 4 – Inspects up to 16 areas of interest
Not all tiles have to be configured for AutoScan; tiles not configured will display the default live web image,
and will not be a part of the AutoScan process.
