Calibration
The Calibration feature allows you to calibrate the LVS-7000. Calibration is required to keep the LVS-7000 in a
standard imaging configuration.
To calibrate the LVS-7000, you need an Omron Microscan Calibration Card in perfect condition with all of the
calibration information filled out on the card.

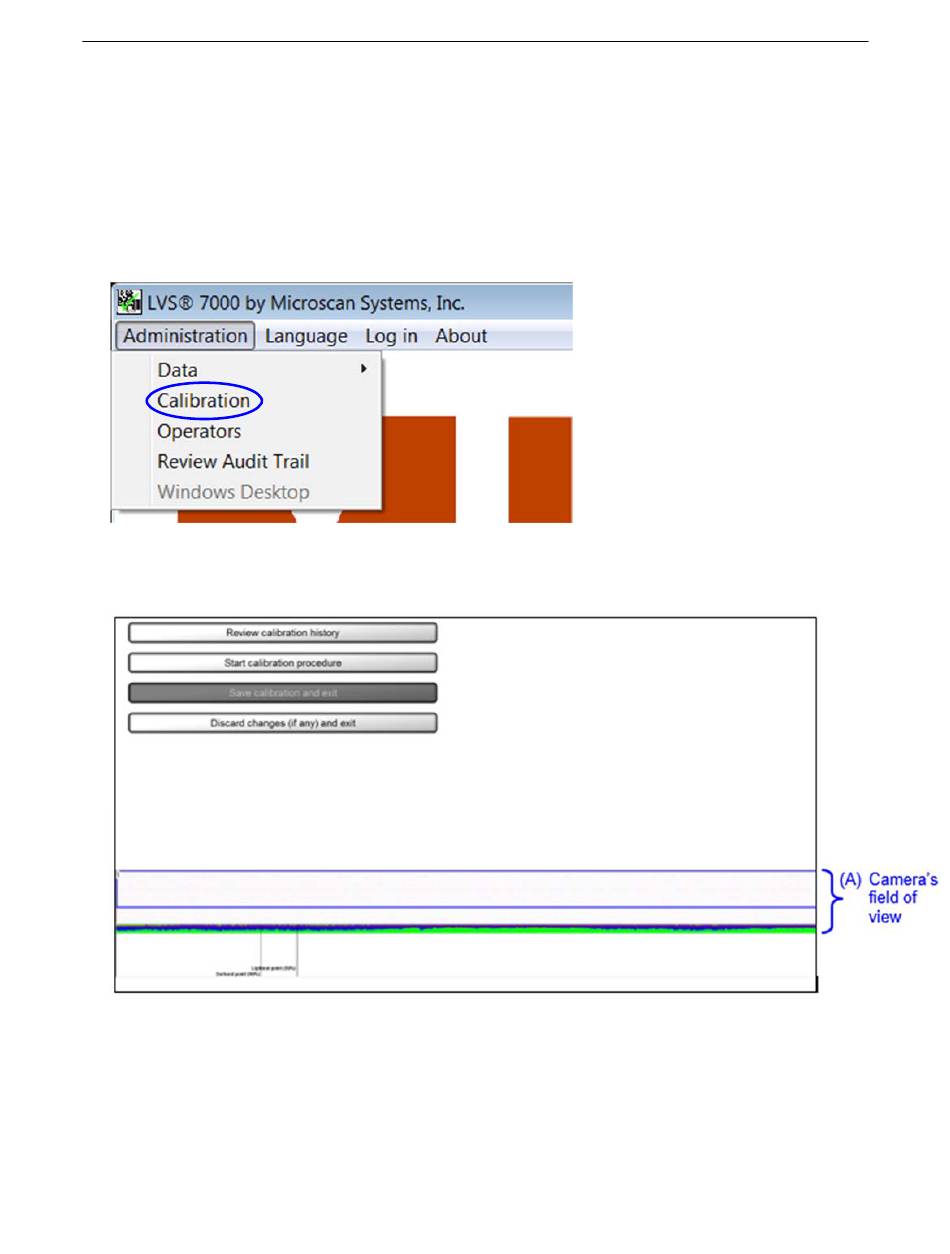

1. Select Administration, and then Calibration from the menu bar:
2. The following screen appears:
The shaded area as noted in "A" above is the camera's field of view; this is what the camera is seeing. This
area may look differently on your screen depending on what is in the camera's field of view. See examples
below.
