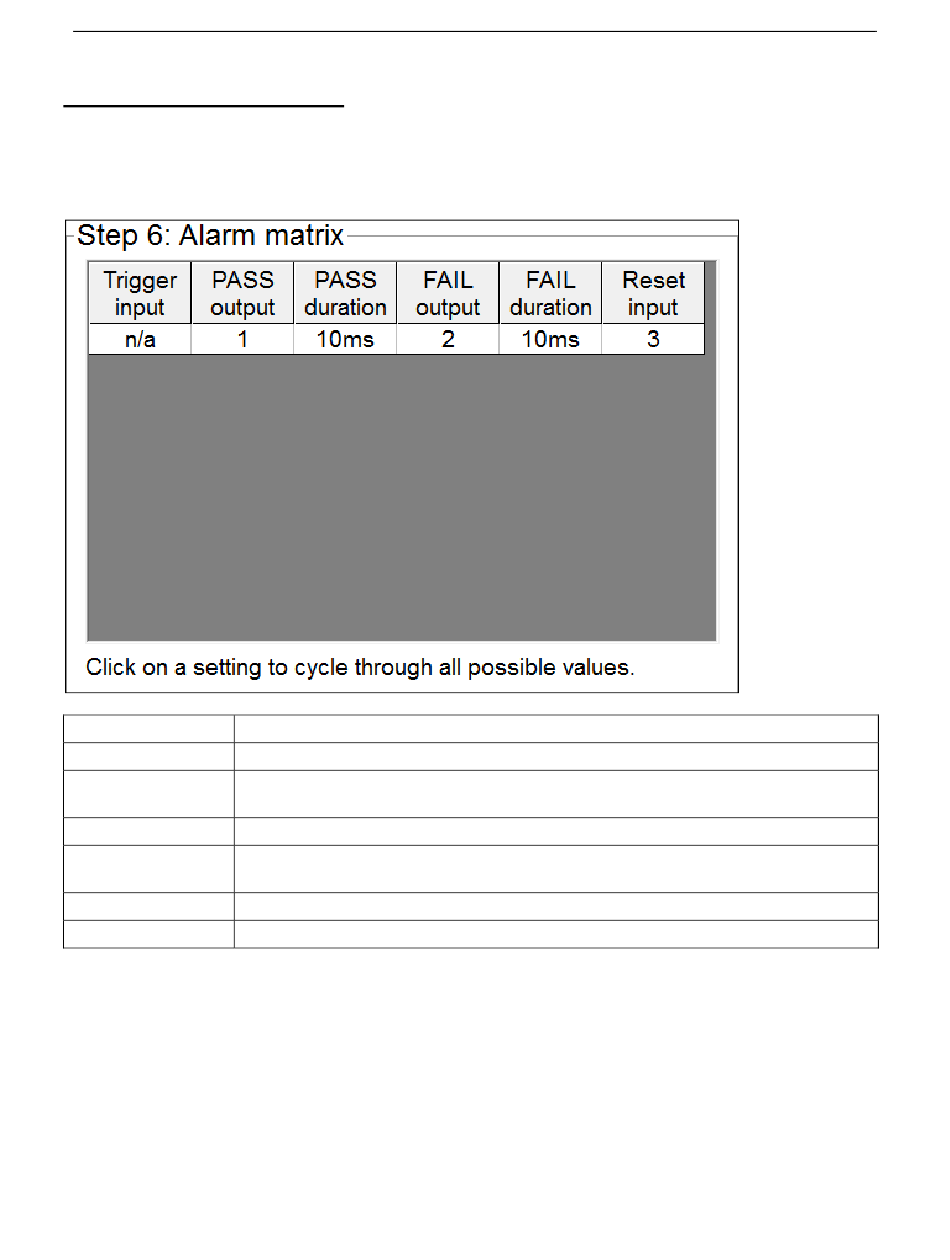

Alarm Matrix: Pass/Fail View
The Alarm Matrix Pass/Fail view displays the pass/fail status of the entire inspection. Click on a setting to cycle
through all possible values. Each setting is described in the table below.
The Alarm Matrix Pass/Fail view is configured in the LVS7000.ini file > [Alarm matrix] section >
UsePassFailMethod=1.
Setting
Trigger input
PASS output
PASS duration
FAIL output
FAIL duration
Reset input
LVS-7000 Operations Manual Version 5.6.X
This feature is currently unavailable.
If the inspection passes, it will output on the specified I/O line for the specified
duration.
The dwell time of the PASS output.
If any sector in the inspection fails for any reason, it will output a FAIL output on
the specified channel for the specified duration.
The dwell time of the FAIL output.
If a pulse is detected on this channel, all outputs are deactivated.
LVS-7000 Operations Manual Version 5.6.X
Description
