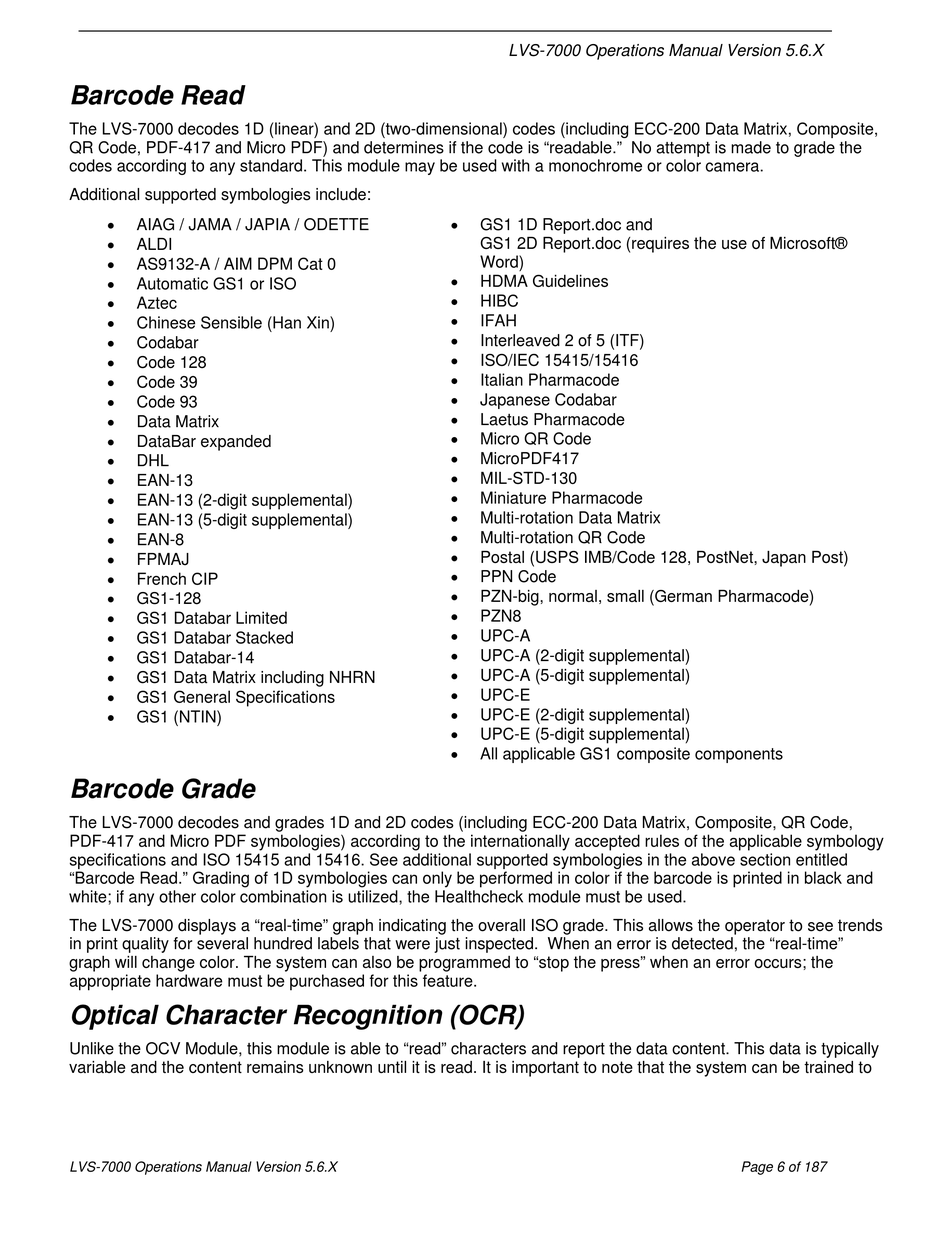

Barcode Read

The LVS-7000 decodes 1D (linear) and 2D (two-dimensional) codes (including ECC-200 Data Matrix, Composite,
QR Code, PDF-417 and Micro PDF) and determines if the code is "readable." No attempt is made to grade the
codes according to any standard. This module may be used with a monochrome or color camera.
Additional supported symbologies include:

AIAG / JAMA / JAPIA / ODETTE

ALDI

AS9132-A / AIM DPM Cat 0

Automatic GS1 or ISO

Aztec

Chinese Sensible (Han Xin)

Codabar

Code 128

Code 39

Code 93

Data Matrix

DataBar expanded

DHL

EAN-13

EAN-13 (2-digit supplemental)

EAN-13 (5-digit supplemental)

EAN-8

FPMAJ

French CIP

GS1-128

GS1 Databar Limited

GS1 Databar Stacked

GS1 Databar-14

GS1 Data Matrix including NHRN

GS1 General Specifications

GS1 (NTIN)

Barcode Grade

The LVS-7000 decodes and grades 1D and 2D codes (including ECC-200 Data Matrix, Composite, QR Code,
PDF-417 and Micro PDF symbologies) according to the internationally accepted rules of the applicable symbology
specifications and ISO 15415 and 15416. See additional supported symbologies in the above section entitled
"Barcode Read." Grading of 1D symbologies can only be performed in color if the barcode is printed in black and
white; if any other color combination is utilized, the Healthcheck module must be used.
The LVS-7000 displays a "real-time" graph indicating the overall ISO grade. This allows the operator to see trends
in print quality for several hundred labels that were just inspected. When an error is detected, the "real-time"
graph will change color. The system can also be programmed to "stop the press" when an error occurs; the
appropriate hardware must be purchased for this feature.

Optical Character Recognition (OCR)

Unlike the OCV Module, this module is able to "read" characters and report the data content. This data is typically
variable and the content remains unknown until it is read. It is important to note that the system can be trained to
LVS-7000 Operations Manual Version 5.6.X
LVS-7000 Operations Manual Version 5.6.X

GS1 1D Report.doc and
GS1 2D Report.doc (requires the use of Microsoft®
Word)

HDMA Guidelines

HIBC

IFAH

Interleaved 2 of 5 (ITF)

ISO/IEC 15415/15416

Italian Pharmacode

Japanese Codabar

Laetus Pharmacode

Micro QR Code

MicroPDF417

MIL-STD-130

Miniature Pharmacode

Multi-rotation Data Matrix

Multi-rotation QR Code

Postal (USPS IMB/Code 128, PostNet, Japan Post)

PPN Code

PZN-big, normal, small (German Pharmacode)

PZN8

UPC-A

UPC-A (2-digit supplemental)

UPC-A (5-digit supplemental)

UPC-E

UPC-E (2-digit supplemental)

UPC-E (5-digit supplemental)

All applicable GS1 composite components
