10.7.2. Profibus Master Configuration
The latest applicable GSD file may be downloaded from the HMS website, www.anybus.com.
The actual configuration process will differ for different Profibus Master Systems and is not possible to explain in this document.
Example configurations for Siemens PLC are provided on the HMS website.
When configuring the communication between the Master System and the gateway, 4 words of Input Process Data and 4 words
of Output Process Data should be allocated per drive connected the gateway, up to a maximum of 32 Input and Output words. If
necessary, a configuration may be chosen in the Profibus Master which supports more than the connected number of drives, e.g. if 3
drives are connected to the gateway, the Master System can be configured for 12, 16 or even 32 words of Input and Output process
data. The additional words will simply not contain any data.

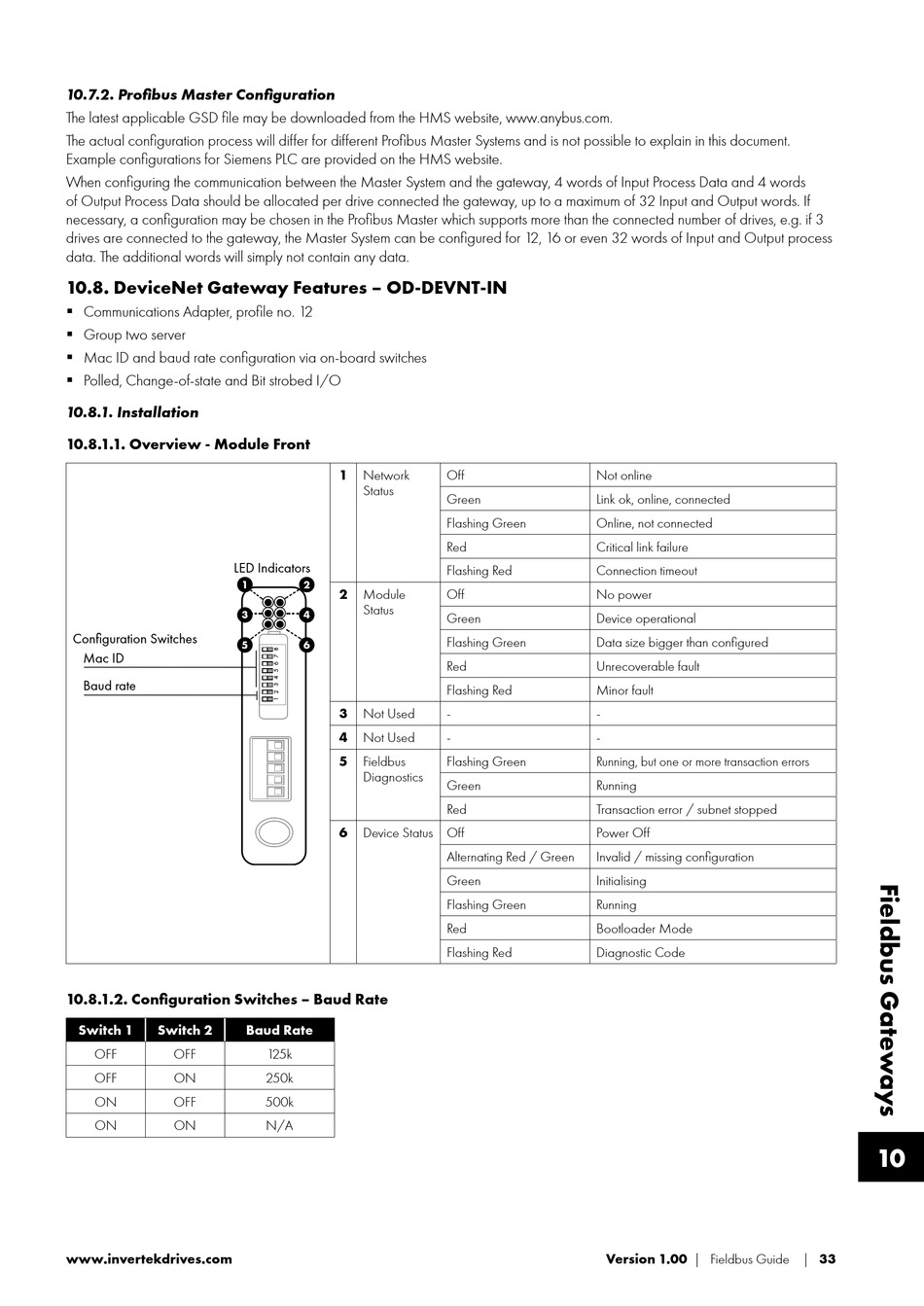

10.8. DeviceNet Gateway Features – OD-DEVNT-IN
 C ommunications Adapter, profile no. 12
 G roup two server
 M ac ID and baud rate configuration via on-board switches
 P olled, Change-of-state and Bit strobed I/O
10.8.1. Installation
10.8.1.1. Overview - Module Front
LED Indicators
Configuration Switches
Mac ID
Baud rate
10.8.1.2. Configuration Switches – Baud Rate
Switch 1 Switch 2
OFF OFF
OFF ON
ON OFF
ON ON
www.invertekdrives.com
1
Network
Status
1 2
2
Module
Status
3 4
5 6
3
Not Used
4
Not Used
5
Fieldbus
Diagnostics
6
Device Status Off
Baud Rate
125k
250k
500k
N/A
Off Not online
Green Link ok, online, connected
Flashing Green Online, not connected
Red Critical link failure
Flashing Red Connection timeout
Off No power
Green Device operational
Flashing Green Data size bigger than configured
Red Unrecoverable fault
Flashing Red Minor fault
- -
- -
Flashing Green Running, but one or more transaction errors
Green Running
Red Transaction error / subnet stopped
Power Off
Alternating Red / Green Invalid / missing configuration
Green Initialising
Flashing Green Running
Red Bootloader Mode
Flashing Red Diagnostic Code
Version 1.00 | Fieldbus Guide | 33
