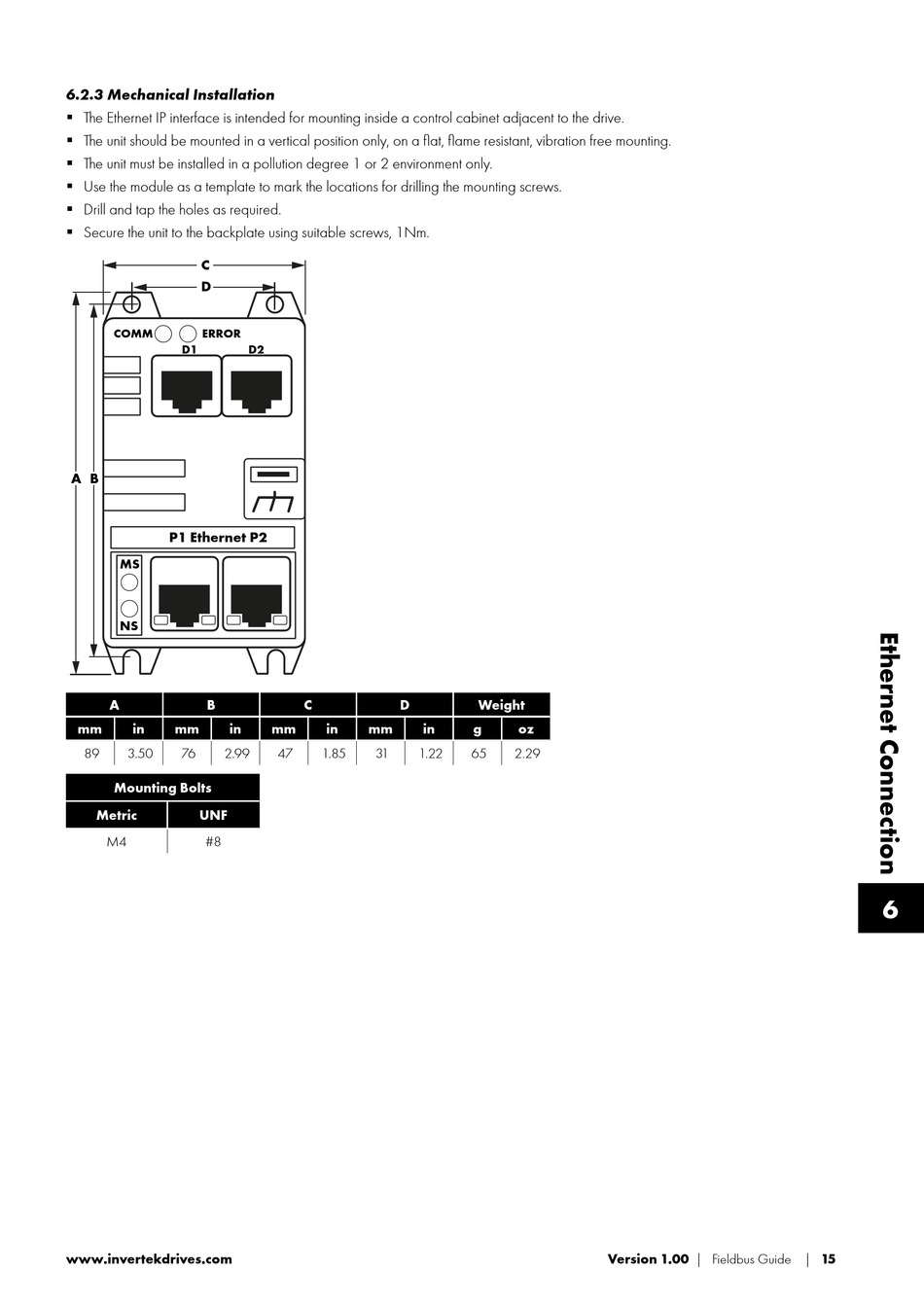

6.2.3 Mechanical Installation
 The Ethernet IP interface is intended for mounting inside a control cabinet adjacent to the drive.
 The unit should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting.
 The unit must be installed in a pollution degree 1 or 2 environment only.
 Use the module as a template to mark the locations for drilling the mounting screws.
 Drill and tap the holes as required.
 Secure the unit to the backplate using suitable screws, 1Nm.
C
D
COMM ERROR
D1
A B
P1 Ethernet P2
MS
NS
A B
mm in mm in
89 3.50 76 2.99
Mounting Bolts
Metric UNF
M4 #8
www.invertekdrives.com
D2
C D
mm in mm in
47 1.85 31 1.22
Weight
g oz
65 2.29
