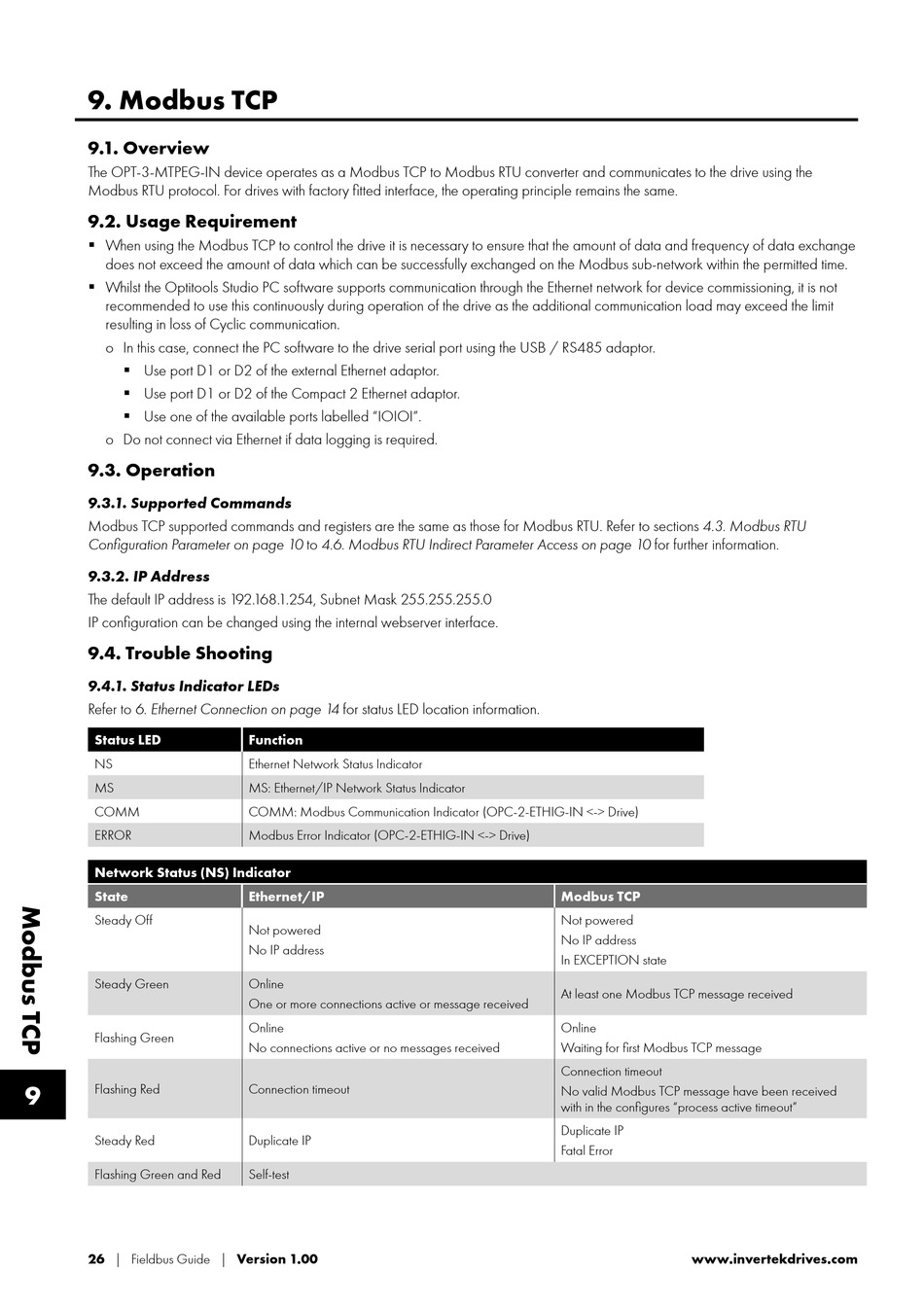

9. Modbus TCP

9.1. Overview

The OPT-3-MTPEG-IN device operates as a Modbus TCP to Modbus RTU converter and communicates to the drive using the
Modbus RTU protocol. For drives with factory fitted interface, the operating principle remains the same.

9.2. Usage Requirement

 W hen using the Modbus TCP to control the drive it is necessary to ensure that the amount of data and frequency of data exchange
does not exceed the amount of data which can be successfully exchanged on the Modbus sub-network within the permitted time.
 W hilst the Optitools Studio PC software supports communication through the Ethernet network for device commissioning, it is not
recommended to use this continuously during operation of the drive as the additional communication load may exceed the limit
resulting in loss of Cyclic communication.
o In this case, connect the PC software to the drive serial port using the USB / RS485 adaptor.
  U se port D1 or D2 of the external Ethernet adaptor.
  U se port D1 or D2 of the Compact 2 Ethernet adaptor.
  U se one of the available ports labelled "IOIOI".
o Do not connect via Ethernet if data logging is required.

9.3. Operation

9.3.1. Supported Commands
Modbus TCP supported commands and registers are the same as those for Modbus RTU. Refer to sections 4.3. Modbus RTU
Configuration Parameter on page 10 to 4.6. Modbus RTU Indirect Parameter Access on page 10 for further information.
9.3.2. IP Address
The default IP address is 192. 1 68. 1 .254, Subnet Mask 255.255.255.0
IP configuration can be changed using the internal webserver interface.
9.4. Trouble Shooting
9.4.1. Status Indicator LEDs
Refer to 6. Ethernet Connection on page 14 for status LED location information.
Status LED
NS
MS
COMM
ERROR
Network Status (NS) Indicator
State
Steady Off
Steady Green
Flashing Green
9
Flashing Red
Steady Red
Flashing Green and Red
26 | Fieldbus Guide | Version 1.00
Function
Ethernet Network Status Indicator
MS: Ethernet/IP Network Status Indicator
COMM: Modbus Communication Indicator (OPC-2-ETHIG-IN <-> Drive)
Modbus Error Indicator (OPC-2-ETHIG-IN <-> Drive)
Ethernet/IP
Not powered
No IP address
Online
One or more connections active or message received
Online
No connections active or no messages received
Connection timeout
Duplicate IP
Self-test
Modbus TCP
Not powered
No IP address
In EXCEPTION state
At least one Modbus TCP message received
Online
Waiting for first Modbus TCP message
Connection timeout
No valid Modbus TCP message have been received
with in the configures "process active timeout"
Duplicate IP
Fatal Error
