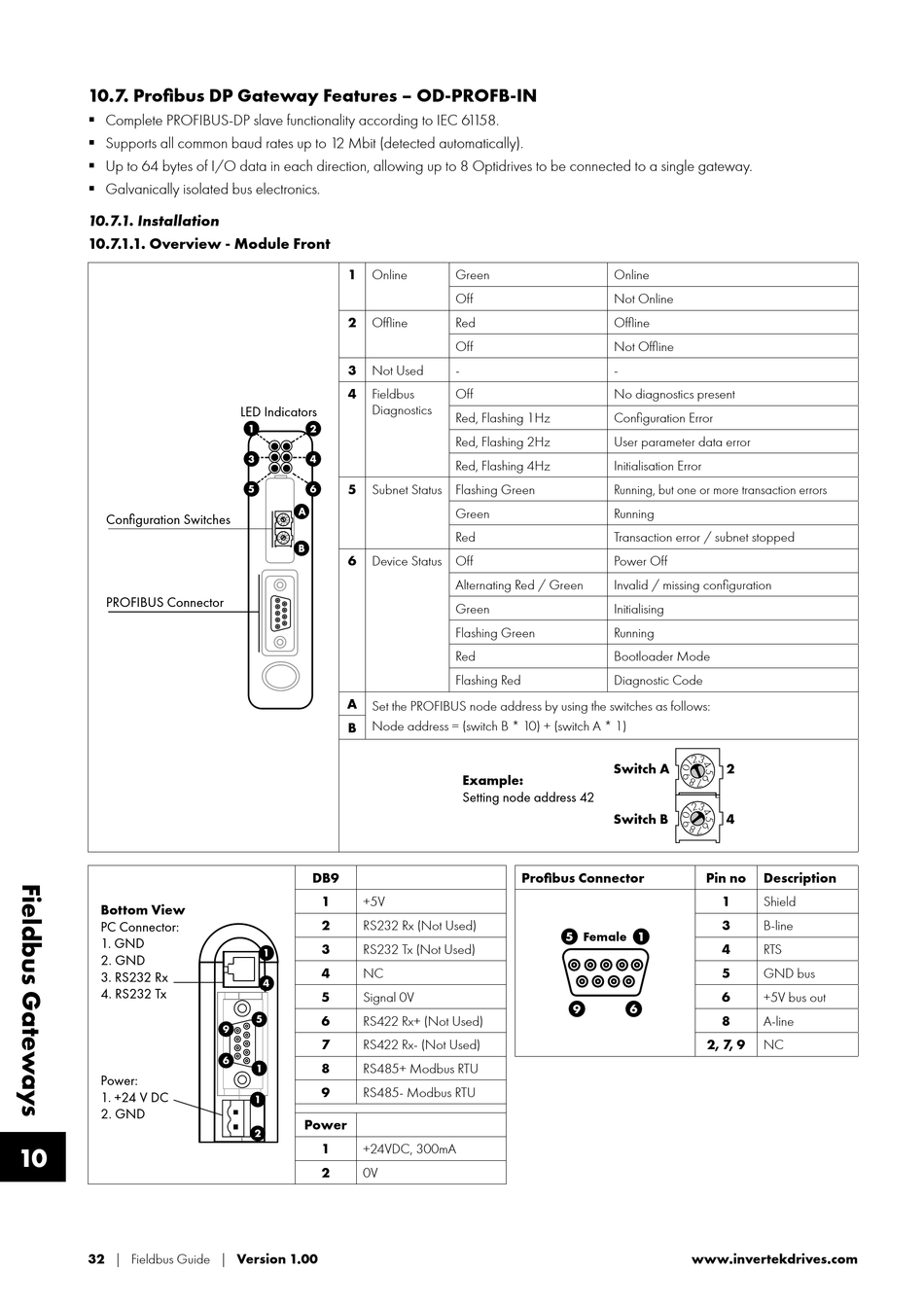

10.7. Profibus DP Gateway Features – OD-PROFB-IN
 C omplete PROFIBUS-DP slave functionality according to IEC 61 158.
 S upports all common baud rates up to 12 Mbit (detected automatically).
 U p to 64 bytes of I/O data in each direction, allowing up to 8 Optidrives to be connected to a single gateway.
 G alvanically isolated bus electronics.
10.7.1. Installation
10.7.1.1. Overview - Module Front
Configuration Switches
PROFIBUS Connector
Bottom View
PC Connector:
1. GND
2. GND
3. RS232 Rx
4. RS232 Tx
Power:
1. +24 V DC
2. GND
10
32 | Fieldbus Guide | Version 1.00
1
Online
2
Offline
3
Not Used
4
Fieldbus
Diagnostics
LED Indicators
1 2
3 4
5
5 6 Subnet Status Flashing Green
A
B
6
Device Status Off
A
Set the PROFIBUS node address by using the switches as follows:
Node address = (switch B * 10) + (switch A * 1)
B
DB9
1
+5V
2
RS232 Rx (Not Used)
3
RS232 Tx (Not Used)
1
4
NC
4
5
Signal 0V
5 6
RS422 Rx+ (Not Used)
9
7
RS422 Rx- (Not Used)
6
8
1 RS485+ Modbus RTU
9
RS485- Modbus RTU
1
Power
2
1
+24VDC, 300mA
2
0V
Green Online
Off Not Online
Red Offline
Off Not Offline
- -
Off No diagnostics present
Red, Flashing 1Hz Configuration Error
Red, Flashing 2Hz User parameter data error
Red, Flashing 4Hz Initialisation Error
Running, but one or more transaction errors
Green Running
Red Transaction error / subnet stopped
Power Off
Alternating Red / Green Invalid / missing configuration
Green Initialising
Flashing Green Running
Red Bootloader Mode
Flashing Red Diagnostic Code
Switch A
Example:
Setting node address 42
Switch B
Profibus Connector
5 Female
9 6
2
4
Pin no Description
1
Shield
3
B-line
1
4
RTS
5
GND bus
6
+5V bus out
8
A-line
2, 7, 9
NC
