3.5.2 CONNECTOR B (I/O)

Terminology Meaning
QC00x Output
IC00x Input
H Output, High when active.
L Output, Low when active.
PWM, High during 'Mark'.
PWM
AIN, FREQ Input configurable to accept signals as positive digital, negative digital, 0 V to 5 V,
0 V to 10 V, 0 V to 32 V, 0 mA to 20 mA, 4 mA to 20 mA, ratiometric or resistive
and frequency measuring
NOTE: GND Pins are internally connected. Multiple connections are provided to give a
separate return for each output if required. Ensure to connect at least one GND terminal for
each I/O Supply +ve that is used.

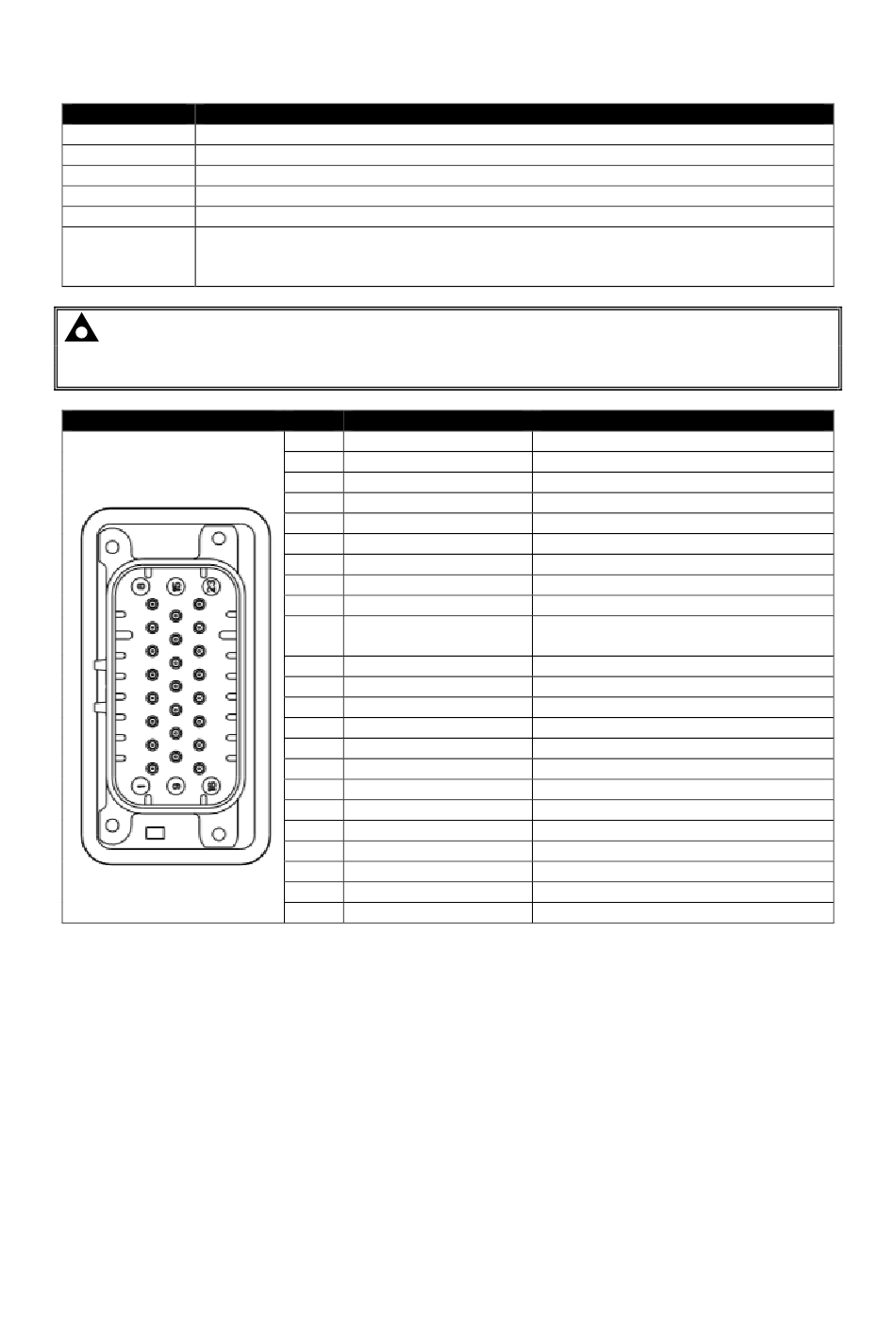

Connector B
057-317 ISSUE: 1.1
Installation
Pin Description
1 I/O Supply +ve
2 QB001
3 QB002
4 GND
5 GND
6 QB003
7 QB004
8 GND
9 I/O Supply +ve
10 VREF OUT +
11 GND
12 GND
13 IB001
14 IB002
15 GND
16 DGND
17 IB003
18 IB004
19 QB005
20 QB006
21 IB005
22 IB006
23 GND
Page 30 of 50
Comments
Internally connected to B9
OUT H, PWM
OUT H, PWM
Return for Outputs
Return for Outputs
OUT H, L
OUT H, L
Return for Outputs
Internally connected to B1
Used to Supply External Devices
(Max 100 mA)
Return for Outputs
Return for Outputs
AIN, FREQ
AIN, FREQ
Return for Outputs
Analogue / Sensor Ground
AIN, FREQ
AIN, FREQ
OUT H, L
OUT H, L
AIN, FREQ
AIN, FREQ
Return for Outputs
