3.1.3 RAM MOUNTING
DSEM812 has four holes on the rear face, suitable
for fitting of a RAM type mount with the AMPS hole
pattern. The spacing for the mounting holes is

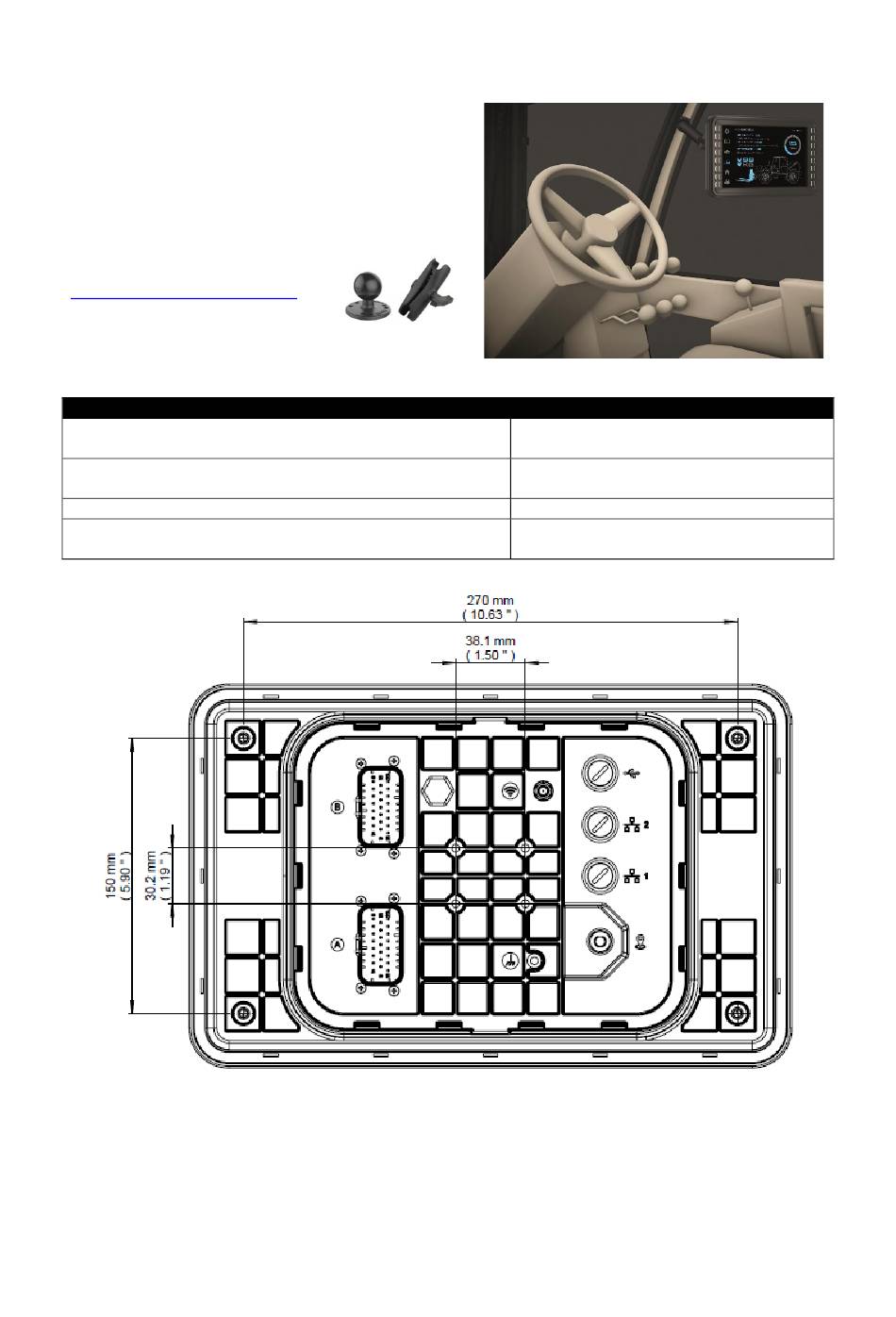

detailed in the image below.
For RAM mount components,
visit:
https://www.ram-mount.co.uk/
Description
RAM Mounting Holes
RAM Mounting Hole Centres
RAM Mounting Bolt Material Recommendation
RAM Mounting Bolt Tightening Torque
Installation
Specification
Suitable for M5 bolts
(0.3 " holes)
38.1 mm X 30.2 mm
(1.50 " X 1.19 ")
Steel or Stainless Steel
4 Nm Maximum
(2.95 ft. lb Maximum)
Page 25 of 50
057-317 ISSUE: 1.1
