Deviser SitePROFILER User Manual page 78

E7000L SitePROFILER
Handheld Cable/Antenna Analyzer
17-2.2 — File Types

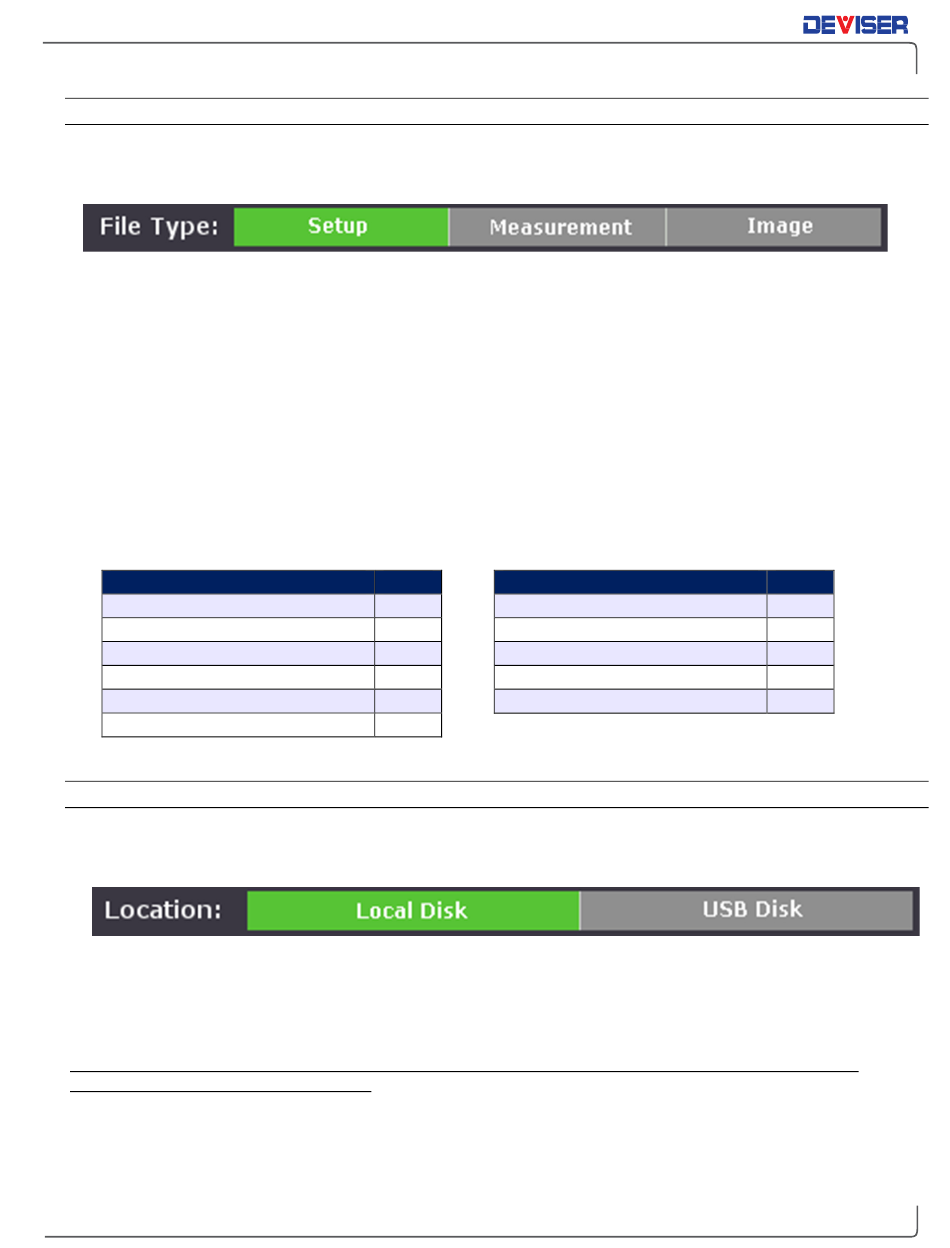

The file type bar contains two buttons: Setup and Image. Select the type of file you wish to save by tapping
a button; your current selection will be highlighted green.
Setup files – configurations of the current measurement mode of the instrument, frequency and
•
distance parameters, marker placement, etc..
NOTE: By using configuration files wisely, the user can restore the instrument to a previous state.
This feature reduces time spent repeating setup and calibration steps.
Measurement – measurement data, readable by compatible software. See below for formats.
•
Image files – screenshots of the display at the time the ScrnShot key was pressed.
•
File Extensions
The table below lists the various types of files that can be saved. Each type of file has a different suffix,
which will follow the filename you enter. (For example, an image named "my_measurement" will be
saved as "my_measurement.bmp".)
File Type
Measurement file – VSMR
Measurement file – return loss
Measurement file – cable loss
Measurement file – DTF-VSWR
Measurement file – DTF-return loss
Measurement file – fiber scope
17-2.3 — Location
The file location bar contains two buttons: Local Disk and USB Disk. Select where you wish to save the file by
tapping a button; your current selection will be highlighted green.
Local Disk – file will be saved to the instrument's internal memory.
•
USB Disk – file will be saved to the currently connected USB device. Must have a USB memory stick
•
inserted into the USB Type-A connector on the instrument's top panel.
Once you have successfully determined the filename, type, and location, press the Save softkey on the
right side of the File Save menu to finish.
78
Suffix File Type
.SWR Measurement file – phase
.RTL Measurement file – Smith Chart
.CBL Measurement file – power meter
.DVS Setup file
.DRL Image file
.FMI
Suffix
.PHA
.SMI
.PMM
.STP
.BMP
