4-4 Optical Power Meter Mode: Menus & Definitions
This section defines the Optical Power Meter measurement mode's menus and functions. Subsections 4-3.1
through 4-3.4 highlight the main menus available in this mode (Wavelength, Amplitude, Sweep, and Limit),
along with their corresponding submenus.
4-4.1 — Wavelength
From the Wavelength main menu, you can adjust the OPM's wavelength sensitivity.

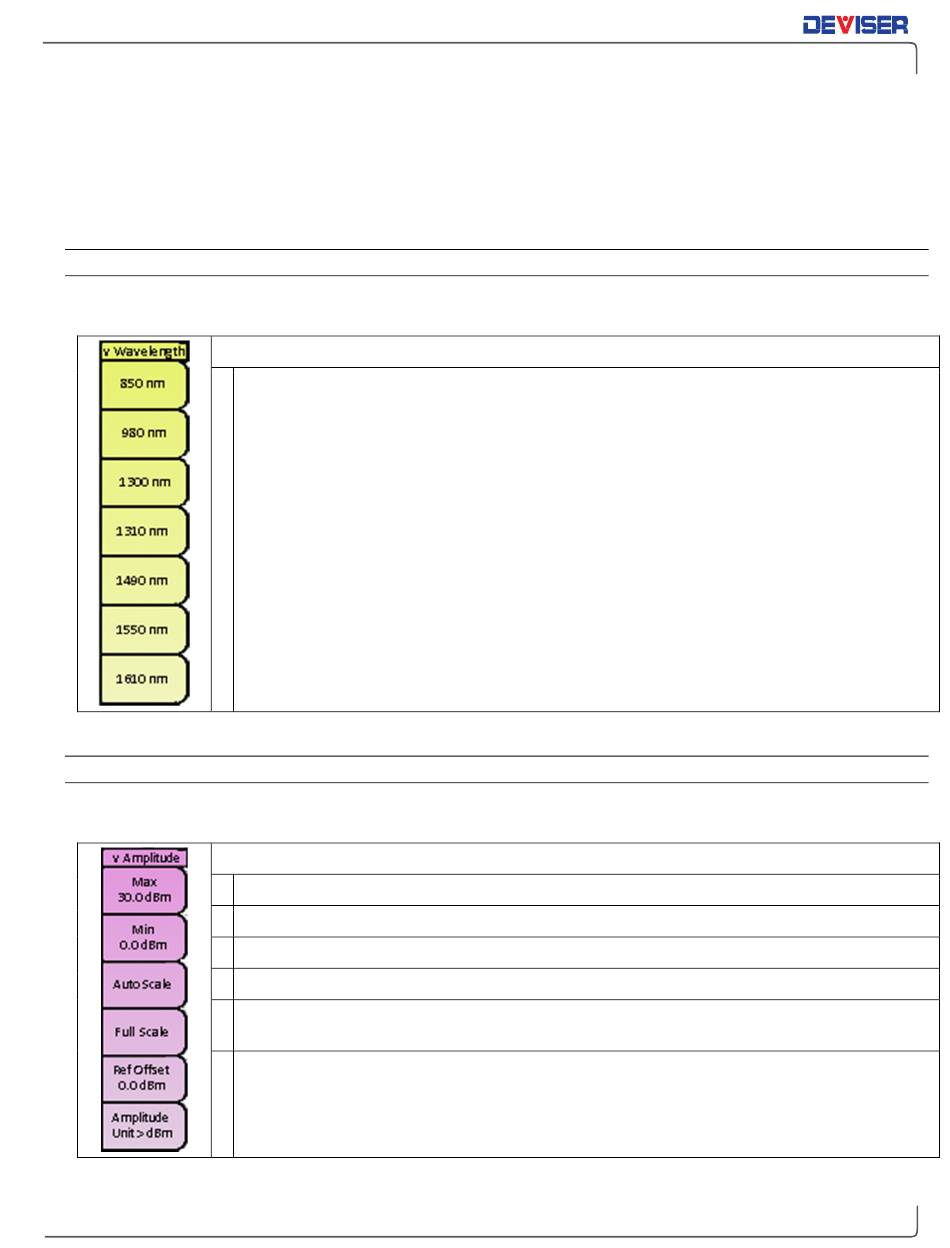

Wavelength Menu
4-4.2 — Amplitude Menu
The Amplitude main menu contains amplitude, scaling, and reference level offset parameters.
Amplitude Menu
42
Wavelength: Select a value to set the wavelength at which the optical power meter will conduct
measurements.
Seven different calibrated wavelengths are available.
Max: Sets the amplitude level at the top of the measurement display.
Min: Sets the amplitude level at the bottom of the measurement display.
Auto Scale: Automatically adjusts the scale to recommended range for the current measurement.
Full Scale: Automatically adjusts the scale to maximum range for the current measurement.
Ref Offset: Sets the reference level. Using the arrow keys, rotary knob, or data keypad, enter a
value to compensate for the presence of external input attenuation or gain.
Units: Tap to toggle the active amplitude unit between Watt and dBm.
