4-1.2 — Freq/Dist Menu

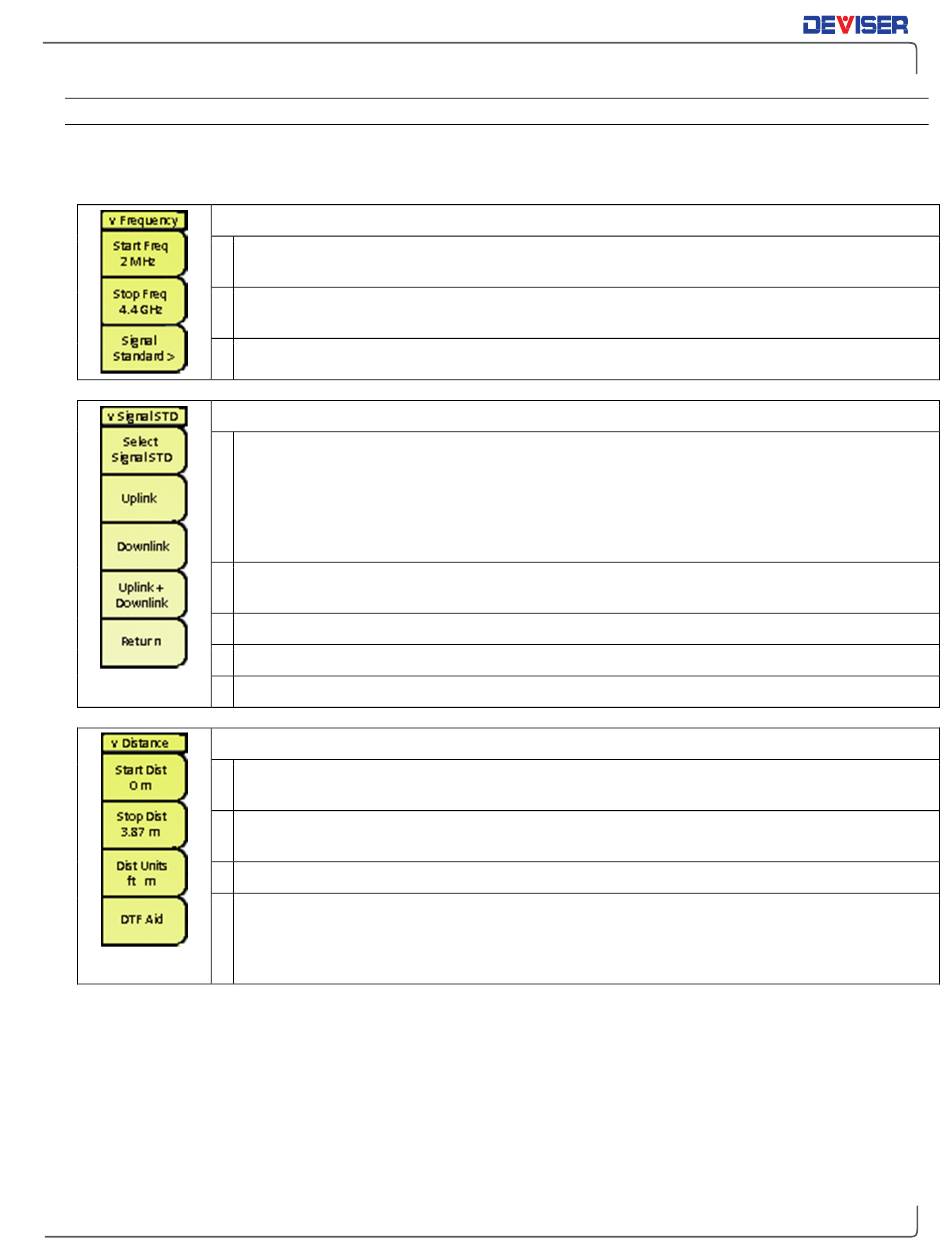

The Frequency and Distance main menu contains frequency range and signal standard parameters, as well
as distance-to-fault measurement options.
Frequency Submenu
Signal Standard Submenu
Distance Submenu
30
Start Freq: Sets the start frequency of the current measurement. Use the arrow keys, rotary knob,
or data keypad to input a value. If prompted, tap to select a unit (Hz, kHz, MHz or GHz).
Stop Freq: Sets the stop frequency of the current measurement. Use the arrow keys, rotary knob,
or data keypad to input a value. If prompted, tap to select a unit (Hz, kHz, MHz or GHz).
Signal Standard: Opens and closes the Signal Standard submenu. (See next table.)
Select Signal STD: Opens the Signal Standard selection dialog: a list of commonly-used signal
standards and their frequency ranges. Select standards using the arrow keys or rotary knob, then
tap the Select/Deselect softkey to place a star (*) next to them. You can view only starred signals
by toggling Display from All to Sltd. Tap Search to search for a given standard by name, using the
data keypad. If a USB storage device is connected to the instrument, you can also transfer saved
signal standard settings to and from USB. Press the Esc button to exit the dialog.
Uplink: Tap to indicate a signal being transmitted to the antenna.
Downlink: Tap to indicate a signal being received at the cell tower.
Uplink + Downlink: Tap to indicate both uplink and downlink signals.
Return: Tap to return to the Freq/Dist main menu.
Start Dist: Sets how far down the cable to start the measurement. Use the arrow keys, rotary knob,
or data keypad to input a value. If prompted, tap to select a unit (Hz, kHz, MHz or GHz).
Stop Freq: Sets how far down the cable to stop the measurement. Use the arrow keys, rotary knob,
or data keypad to input a value. If prompted, tap to select a unit (Hz, kHz, MHz or GHz).
Dist Units: Tap to toggle the default distance unit between feet (ft) and meters (m).
DTF Aid: Opens the DTF Aid screen. Here you can find information and helpful tips for Distance-
to-Fault measurements, as well as the current status of all DTF-related parameters. Double-tap
one of the tabs on the left side of the display to change its value or see advice on best settings.
Press the Esc button to cancel editing a value. Press Esc again to exit DTF Aid.
