Symbols and Indicators

The following symbols and indicators on the display indicate the instrument's current status.
Calibration Symbols
The current calibration status and type is displayed when in Cable & Antenna Analyzer mode.
Calibration status OFF
•
The 7000L has not been calibrated.
o
Calibration status Full Span ON
•
The E7000L has been calibrated with either Open, Short, and Load components or the
o
electronic ECAL calibration device. When measurement frequency or sweep data points
chance, the calibration will remain valid.
Calibration status Standard ON
•
The E7000L has been calibrated with discrete Open, Short, and Load components or the
o
electronic ECAL calibration device. When measurement frequency exceeds calibration
frequency range, the calibration data become invalid and the instrument must be re-
calibrated.
Battery Symbols
When either the AC-DC Adapter or the 12 VDC adapter is connected, the battery automatically receives
charge, and the battery symbol with the lightning bolt is displayed.
CAUTION: Use only Deviser-approved batteries, adapters, and chargers with this instrument.
When the instrument is connected to external power without a battery installed, the battery symbol is
replaced by a plug body.
When the instrument is connected to a computer and is transferring or receiving data, the battery symbol is
replaced by a USB icon.
E7000L SitePROFILER

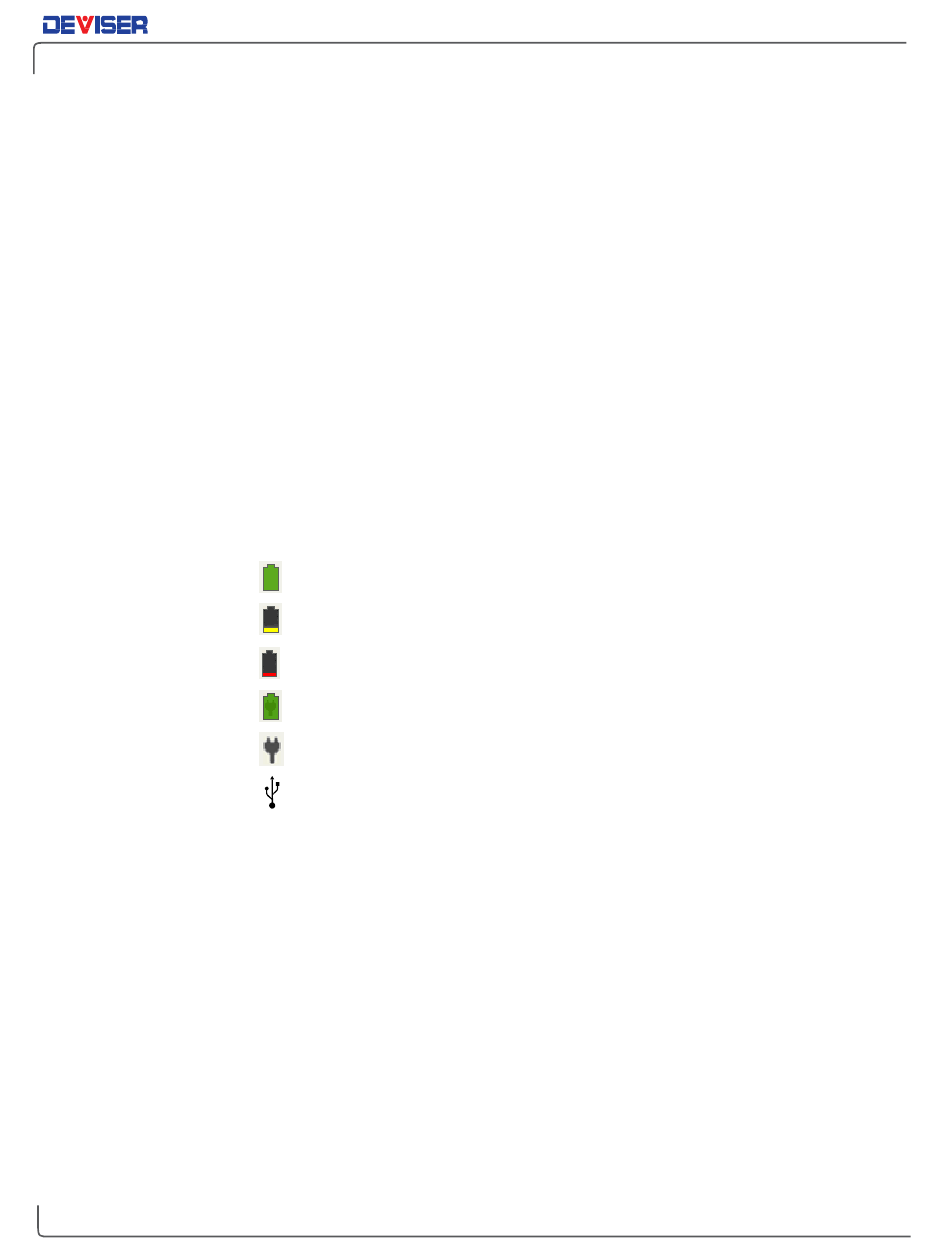

Green: Battery is 30% to 100% charged.
Yellow: Battery is 10% to 30% charged.
Red: Battery is 0% to 10% charged.
Green plug: Battery is currently charging.
Plug: Device running on external power. No battery installed.
USB connection: USB device is busy for data exchange.
