4-1.4 — Calibration Menu
The Calibration main menu allows the user to calibrate the E7000L SitePROFILER when either a "Y" OSL CAL
or eCAL device is connected to the instrument. You can also view or set calibration options here.

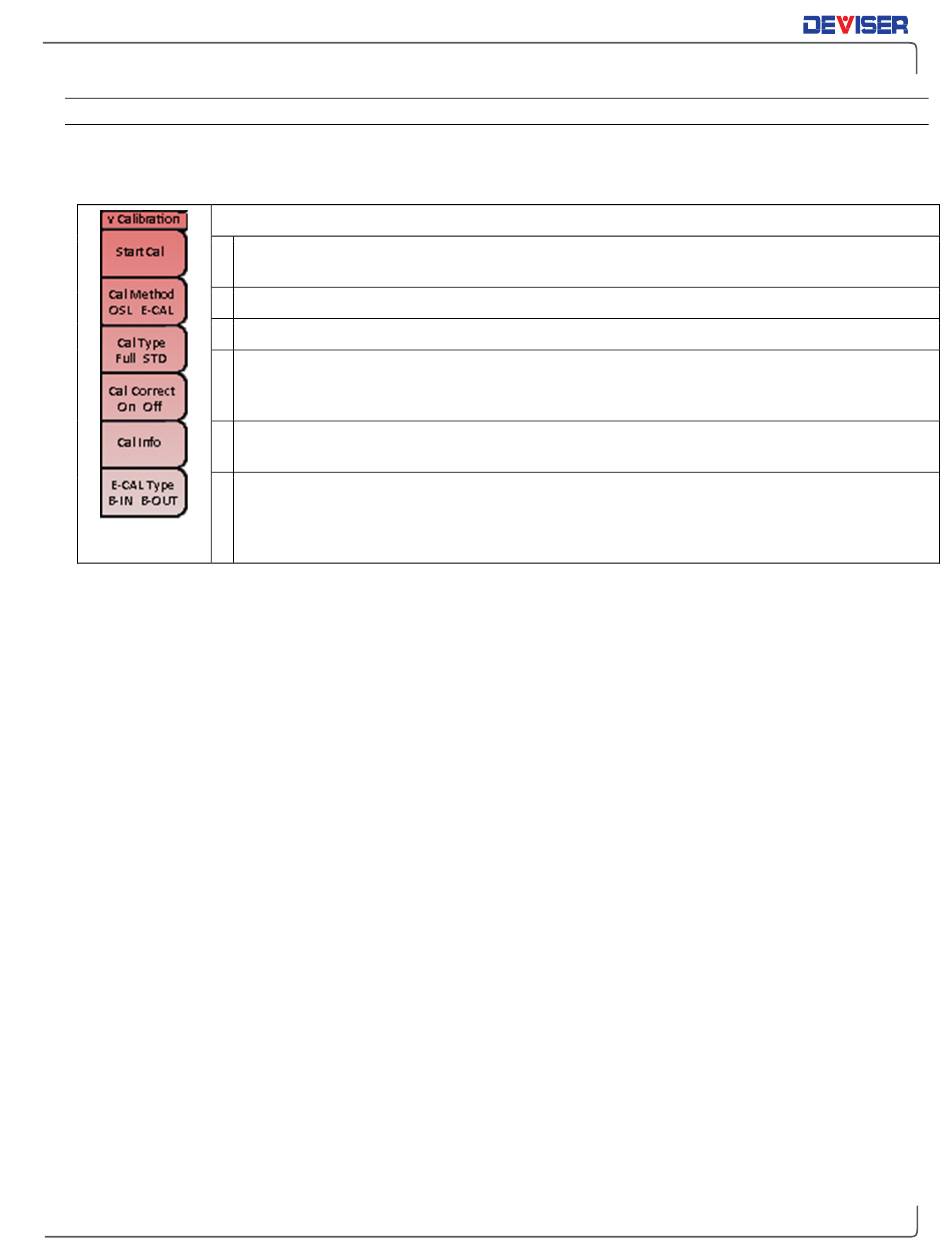

Calibration Menu
32
Start Cal: Initiates the calibration process. See Chapter 3 for more information on this procedure
and compatible calibration devices.
Cal Method: Tap to toggle between calibration methods, dependent on the connected device.
Cal Type: Tap to toggle between Full Span and Standard calibration. See Section 3-2.
Cal Correct: Tap to toggle the Calibration Correct function On/Off. Calibrate your instrument, then
toggle this function Off to view your measurement without the calibration's adjustments. Even when
Off, the calibration will remain valid; toggle On to re-apply it.
Cal Info: Opens the Calibration Info screen. This screen displays the current instrument settings
and active calibration details.
E-CAL Type: Toggles the E-CAL type.
• If it is connected via the RF Out and E-CAL/Power Meter ports, choose B-IN.
• If the E-CAL device is connected via the instrument's RF Out and USB ports, choose B-OUT.
This option only appears when Cal Method (above) is set to E-CAL.
