4-3 Internal Power Meter Mode: Menus & Definitions
This section defines the Internal Power Meter measurement mode's menus and functions. Subsections 4-3.1
through 4-3.4 highlight the main menus available in this mode (Frequency, Amplitude, Sweep, and Limit),
along with their corresponding submenus.

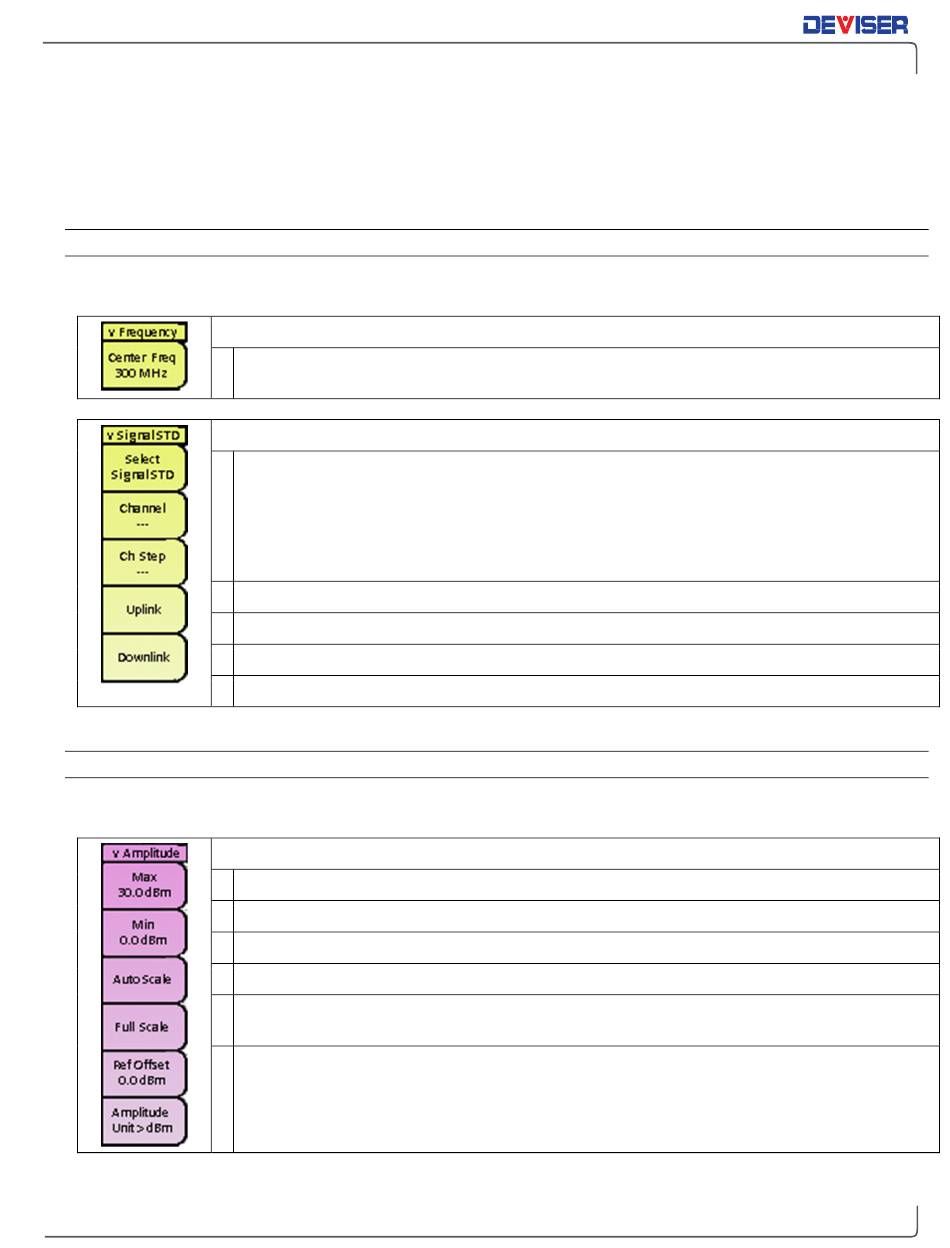

4-3.1 — Frequency Menu
The Frequency main menu contains the center frequency parameter, as well as signal standard selection.
Frequency Submenu
Signal Standard Submenu
4-3.2 — Amplitude Menu
The Amplitude main menu contains amplitude, scaling, and reference level offset parameters.
Amplitude Menu
40
Center Frequency: Sets the midpoint of the frequency range for the current measurement. Input a
value using the arrow keys, rotary knob, or data keypad, then select a unit (Hz, kHz, MHz or GHz).
Select Signal STD: : Opens the Signal Standard selection dialog: a list of commonly-used signal
standards and their frequency ranges. Select standards using the arrow keys or rotary knob, then
tap the Select/Deselect softkey to place a star (*) next to them. You can view only starred signals
by toggling Display from All to Sltd. Tap Search to search for a given standard by name, using
the data keypad. If a USB storage device is connected to the instrument, you can also transfer
saved signal standard settings to and from USB. Press the Esc button to exit the dialog.
Channel: Sets a specific channel to test.
Ch Step: Sets the channel step size. Enter "1" to test each channel one by one.
Uplink: Tap to indicate a signal being transmitted to the antenna.
Downlink: Tap to indicate a signal being received at the cell tower.
Max: Sets the amplitude level at the top of the measurement display.
Min: Sets the amplitude level at the bottom of the measurement display.
Auto Scale: Automatically adjusts the scale to recommended range for the current measurement.
Full Scale: Automatically adjusts the scale to maximum range for the current measurement.
Ref Offset: Sets the reference level. Using the arrow keys, rotary knob, or data keypad, enter a
value to compensate for the presence of external input attenuation or gain.
Units: Tap to toggle the active amplitude unit between Watt and dBm.
