Chapter 17 — File Management

Introduction

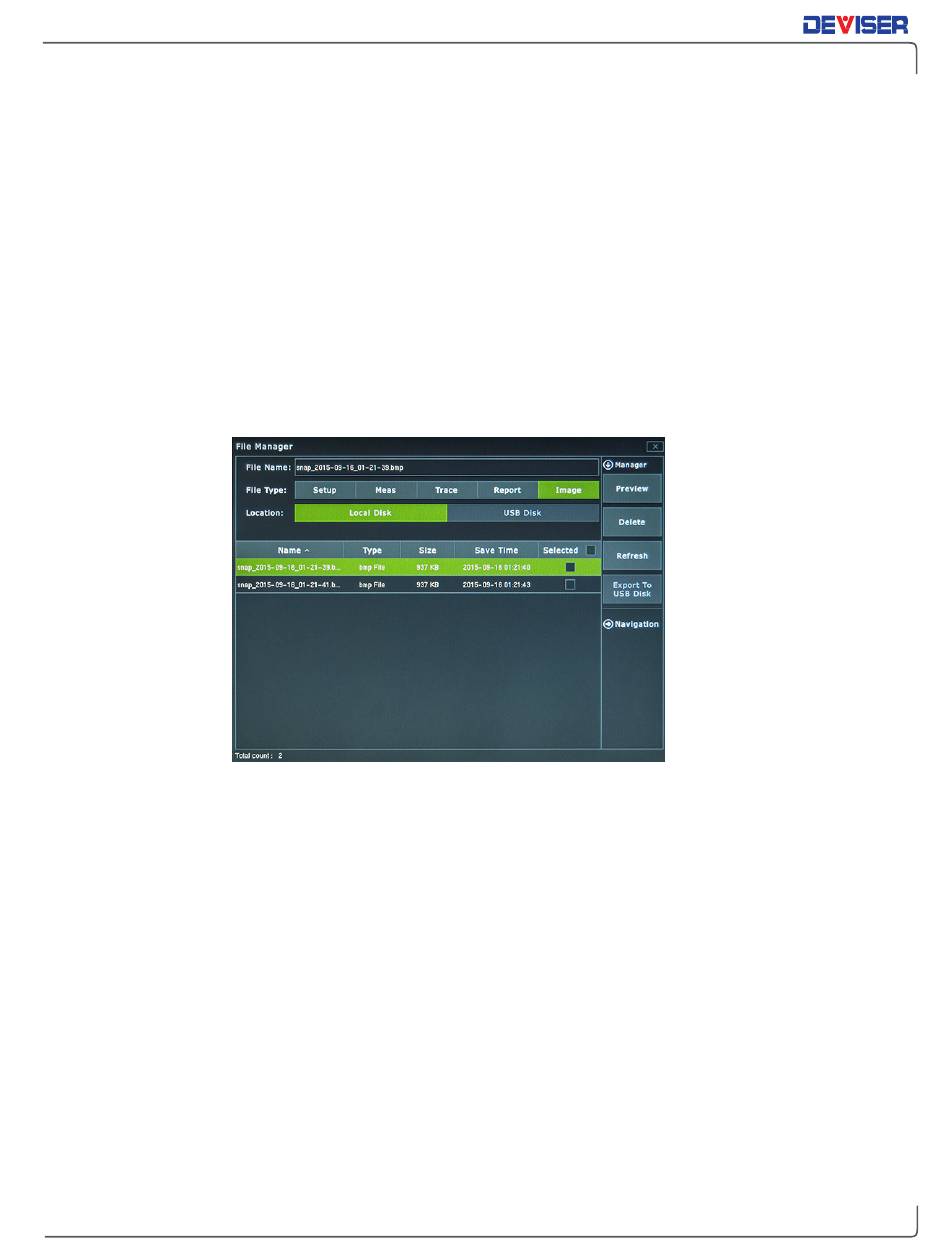

This chapter provides an overview of the E7000L SitePROFILER's file management features, and describes
the File Manager (shown below) and File Save menus.
The instrument can automatically store parameters. Once the instrument is powered on, it will automatically
recover the pre-shutdown state. This simplifies the setup process. The user can also set the instrument state
by saving configuration files that contain the instrument's measurement mode, frequency, distance,
markers, and other parameters and calibration data at a particular point in time.
Stored measurement files can be used for managing measurement results. Users can load previous
measurements into the instrument's internal memory to compare or calculate data; then import multiple
results into the PC management software for detailed analyses, data management, and report generation.
17-1

Overview

Remember the following tips when reviewing Chapter 17, "File Management":
Saved measurements also contain setup information.
•
Read measurements may change the current instrument settings (which will not be saved) in
•
order to display the read measurement.
Calibration information is read with setup files, but not recalled with measurement files.
•
Rename saved files under the file management (File > File Manager) menu.
•
Sort files by tapping the column headings.
•
Quickly move up or down long lists by using the buttons under the Navigation submenu.
•
Determine where files are saved (either Internal Memory or USB) with the Set Location button in
•
the File Save submenu (Save > Location).
Use the Right arrow key to visit a highlighted folder, and the Left arrow key to exit the folder.
•
Press Esc to return to the previous screen.
•
