Rekluse CoreEXP 3.0 Installation Manual page 13

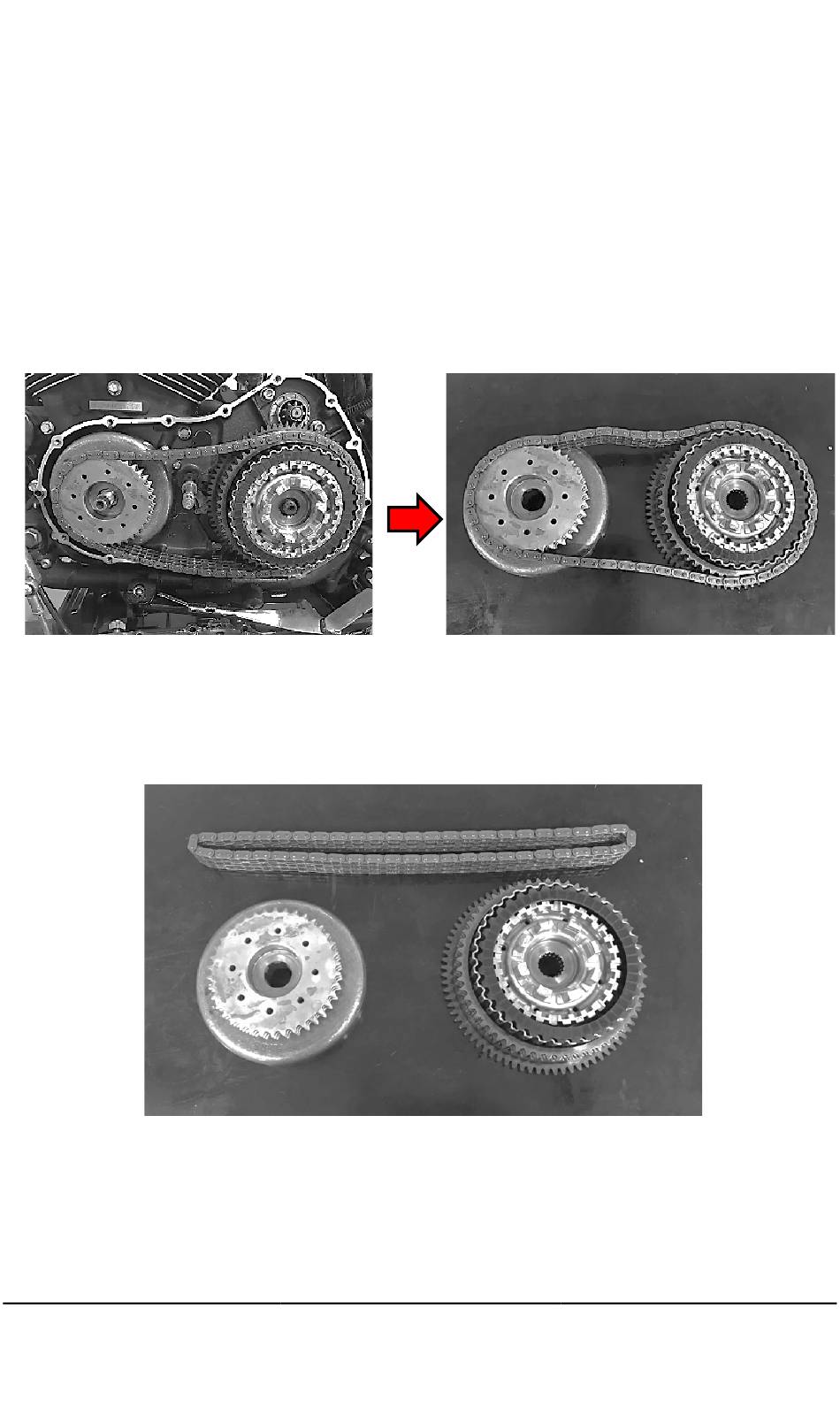

23. Remove the drive gear, clutch assembly, and chain
simultaneously. All three parts must be removed as one
unit.
• Do this by grasping the drive gear and clutch assembly in
separate hands, then firmly slide them off their respective
shafts. Carefully set this assembly on a work bench.
• If the drive gear is difficult to remove from the stator due
to the magnetism, use both hands to initially begin sliding
it off of the shaft before removing it as a unit.
24. Separate the drive gear from the clutch assembly by sliding
the chain off of each indexing gear and setting aside.
