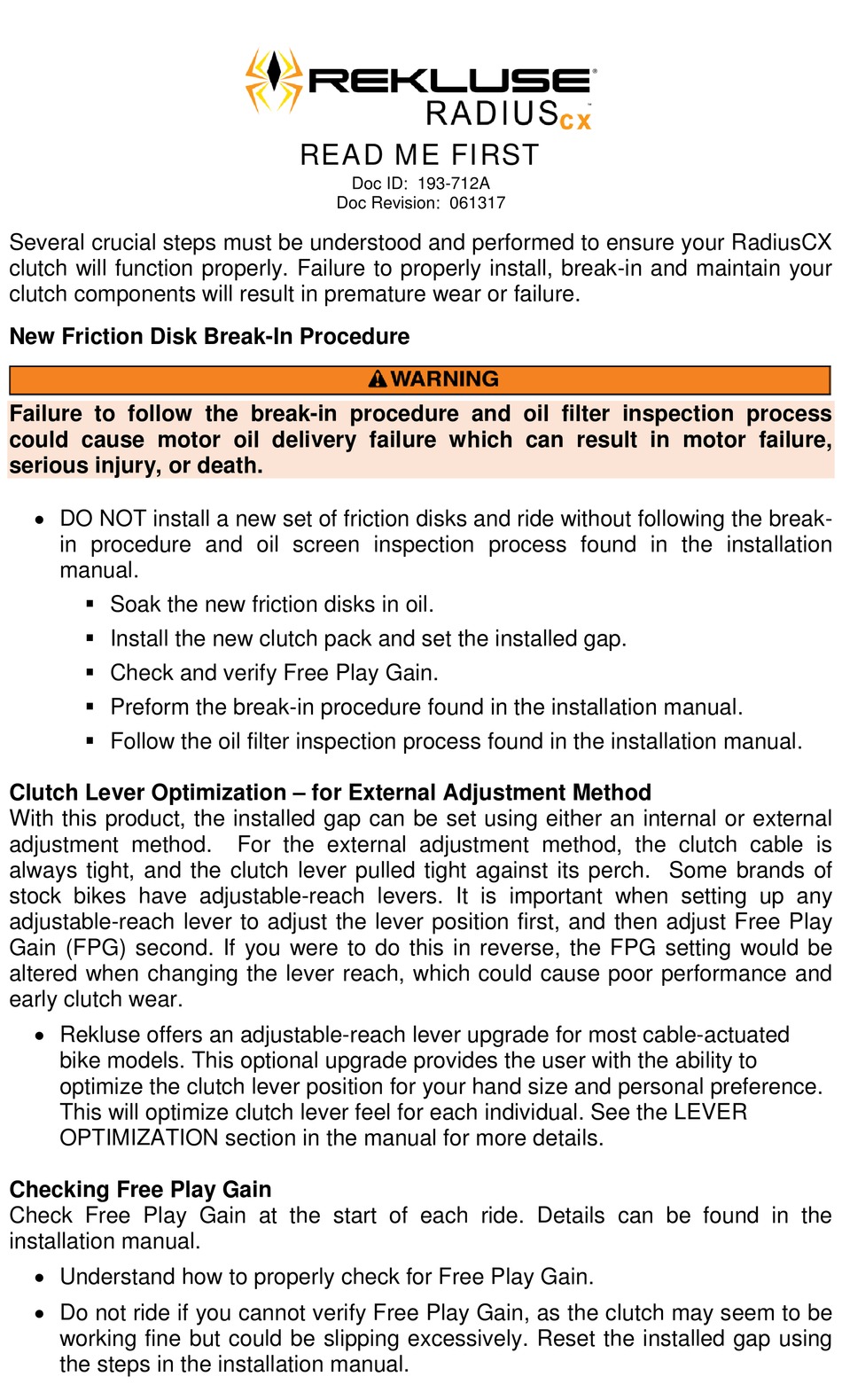

Rekluse RadiusCX Read Me First

Several crucial steps must be understood and performed to ensure your RadiusCX
clutch will function properly. Failure to properly install, break-in and maintain your
clutch components will result in premature wear or failure.

New Friction Disk Break-In Procedure

Failure to follow the break-in procedure and oil filter inspection process
could cause motor oil delivery failure which can result in motor failure,
serious injury, or death.
• DO NOT install a new set of friction disks and ride without following the break-
in procedure and oil screen inspection process found in the installation
manual.
 Soak the new friction disks in oil.
 Install the new clutch pack and set the installed gap.
 Check and verify Free Play Gain.
 Preform the break-in procedure found in the installation manual.
 Follow the oil filter inspection process found in the installation manual.
Clutch Lever Optimization – for External Adjustment Method
With this product, the installed gap can be set using either an internal or external
adjustment method.
always tight, and the clutch lever pulled tight against its perch. Some brands of
stock bikes have adjustable-reach levers. It is important when setting up any
adjustable-reach lever to adjust the lever position first, and then adjust Free Play
Gain (FPG) second. If you were to do this in reverse, the FPG setting would be
altered when changing the lever reach, which could cause poor performance and
early clutch wear.
• Rekluse offers an adjustable-reach lever upgrade for most cable-actuated
bike models. This optional upgrade provides the user with the ability to
optimize the clutch lever position for your hand size and personal preference.
This will optimize clutch lever feel for each individual. See the LEVER
OPTIMIZATION section in the manual for more details.

Checking Free Play Gain

Check Free Play Gain at the start of each ride. Details can be found in the
installation manual.
• Understand how to properly check for Free Play Gain.
• Do not ride if you cannot verify Free Play Gain, as the clutch may seem to be
working fine but could be slipping excessively. Reset the installed gap using
the steps in the installation manual.
READ ME FIRST
Doc ID: 193-712A
Doc Revision: 061317
For the external adjustment method, the clutch cable is
