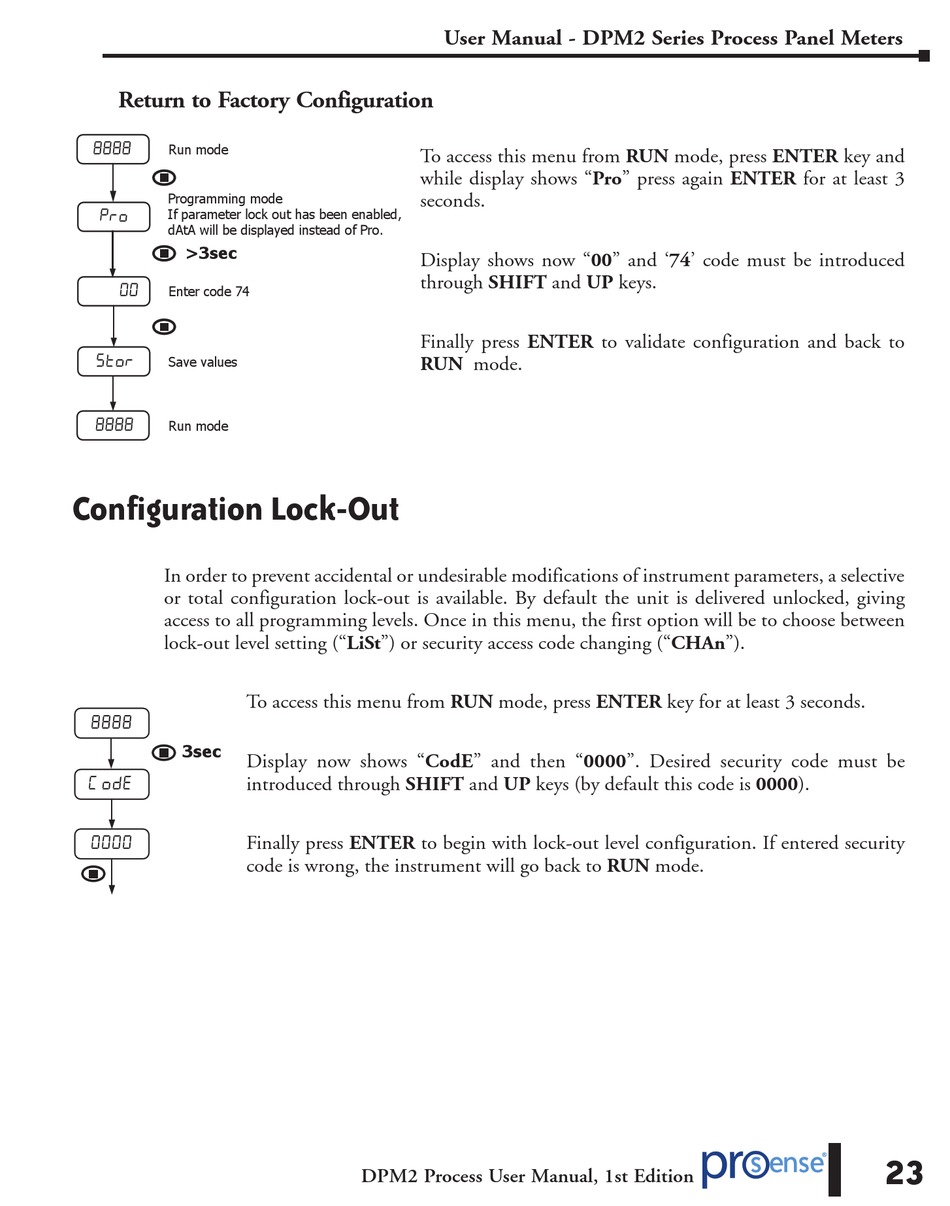

Return to Factory Configuration


Run mode
Programming mode
 If parameter lock out has been enabled,
dAtA will be displayed instead of Pro.
>3sec

Enter code 74

Save values

Run mode

Configuration Lock-Out

In order to prevent accidental or undesirable modifications of instrument parameters, a selective
or total configuration lock-out is available. By default the unit is delivered unlocked, giving
access to all programming levels. Once in this menu, the first option will be to choose between
lock-out level setting ("LiSt") or security access code changing ("CHAn").
To access this menu from RUN mode, press ENTER key for at least 3 seconds.

3sec
Display now shows "CodE" and then "0000". Desired security code must be
  introduced through SHIFT and UP keys (by default this code is 0000).
 Finally press ENTER to begin with lock-out level configuration. If entered security
code is wrong, the instrument will go back to RUN mode.
User Manual - DPM2 Series Process Panel Meters
To access this menu from RUN mode, press ENTER key and
while display shows "Pro" press again ENTER for at least 3
seconds.
Display shows now "00" and '74' code must be introduced
through SHIFT and UP keys.
Finally press ENTER to validate configuration and back to
RUN mode.
