User Manual - DPM2 Series Process Panel Meters
CN1
AC Supply DC Supply
1 Line 1 VDC
2 Neutral 2 VDC
Polarity insensitive for
DC power
CN2 Terminals
Warning Isolation:
1500Vrms for 1 minute to signal terminals (CN2) and power terminals (CN1).
2500Vrms for 1 minute to signal terminals (CN2) and relays terminals (CN3 or CN4).
2500Vrms for 1 minute to power terminals (CN1) and relays terminals (CN3 or CN4).
Refer to the instructions in this manual to preserve safety protections.
WARNING: If this instrument is not installed and used in accordance with these
instructions, the protection provided by it against hazards may be impaired.
To meet the requirements of EN 61010-1 standard, where the unit is permanently connected to
main supply, it is obligatory to install a circuit breaking device easily reachable by the operator
and clearly marked as the disconnecting device.
To guarantee electromagnetic compatibility, the following guidelines should be kept in mind:
• Power supply wires should be separately routed from signal wires and never run in the same conduit.
• Use shielded cable for signal wiring.
• Cables section should be ≥0.25 mm².
Before connecting signal wires, signal type and input range should be verified to be within the
right limits. Do not connect simultaneously more than one input signal to the meter.
8
CN2
1 Common / RTD B / -TC / Pot. Term. 1
2 RTD A / +TC / 10kΩ res. / Pot. center
3 50kΩ res. / Pot. Term. 2
4 RTD B Pt100
5 +20mA
6 Excitation +24V
7 +10/200VDC

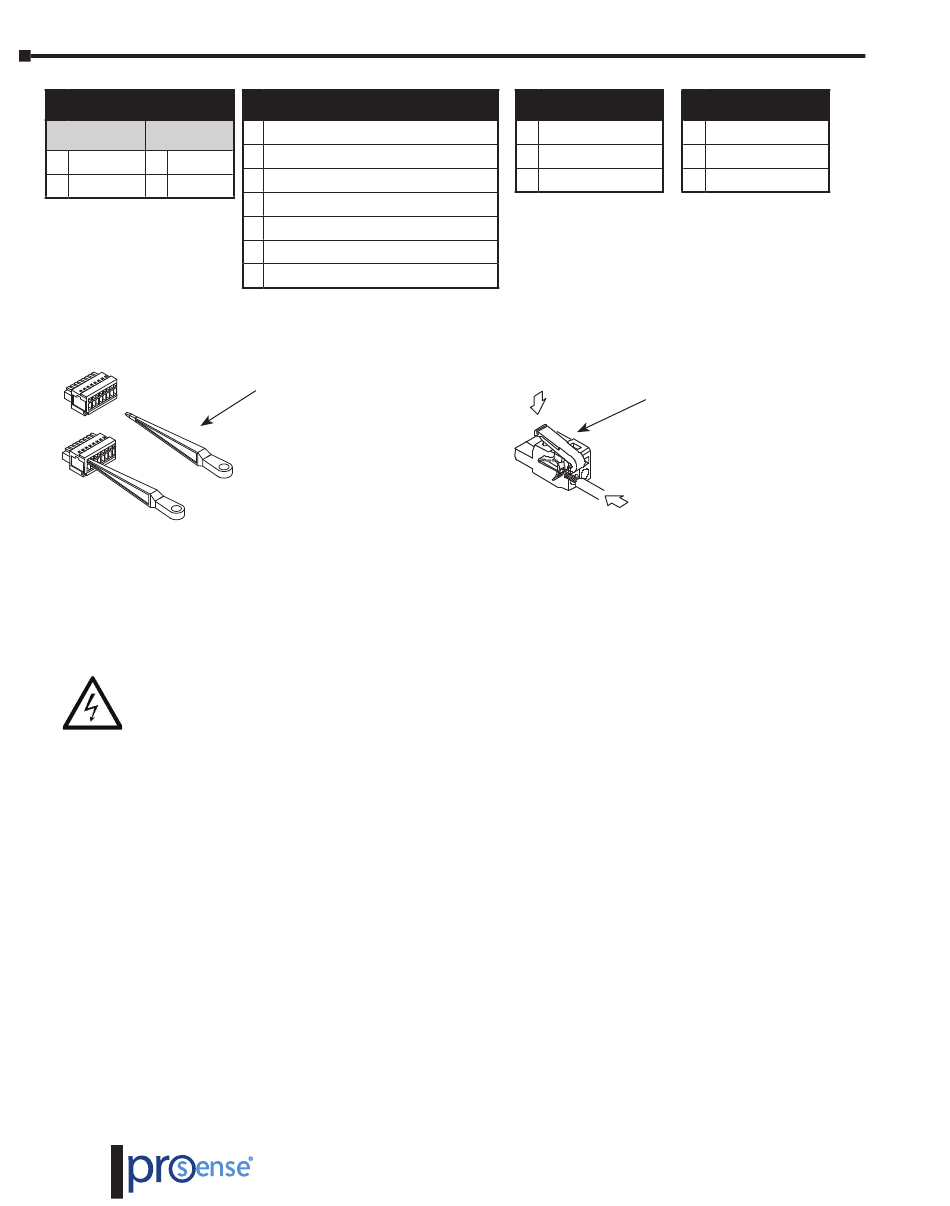

Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to
open the clip inside the connector.
Release the insertion tool to fix wire
to the terminal.
DPM2 Process User Manual, 1st Edition
CN4 (Relay 2)
4 NO2
5 CM2
6 NC2
(DPM2-AT-2R-HL and
DPM2L-AT-2R-HL only)
NO: Normally open contact
CM: Common
NC: Normally closed contact
CN1, CN3, CN4 Terminals
Insertion Tool (included with meter)
Insert wires into the proper terminal
while using the insertion tool to
open the clip inside the connector.
Release the insertion tool to fix wire
to the terminal.
CN3 (Relay 1)
1 NO1
2 CM1
3 NC1
