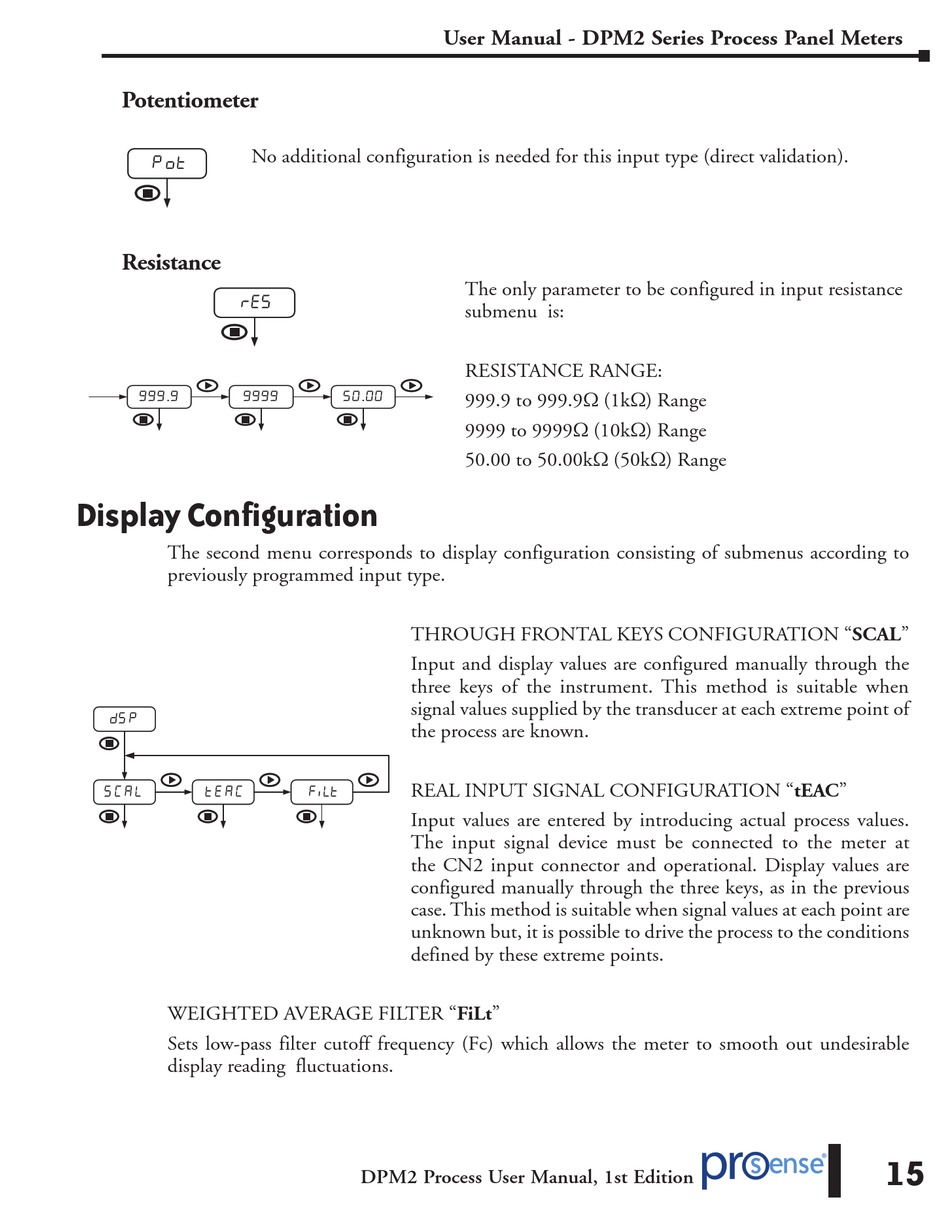

Potentiometer

No additional configuration is needed for this input type (direct validation).
 

Resistance


. 

Display Configuration

The second menu corresponds to display configuration consisting of submenus according to
previously programmed input type.
 
      
WEIGHTED AVERAGE FILTER "FiLt"
Sets low-pass filter cutoff frequency (Fc) which allows the meter to smooth out undesirable
display reading fluctuations.
User Manual - DPM2 Series Process Panel Meters
The only parameter to be configured in input resistance
submenu is:
RESISTANCE RANGE:
.
999.9 to 999.9Ω (1kΩ) Range
9999 to 9999Ω (10kΩ) Range
50.00 to 50.00kΩ (50kΩ) Range
THROUGH FRONTAL KEYS CONFIGURATION "SCAL"
Input and display values are configured manually through the
three keys of the instrument. This method is suitable when
signal values supplied by the transducer at each extreme point of
the process are known.
REAL INPUT SIGNAL CONFIGURATION "tEAC"
  
Input values are entered by introducing actual process values.
The input signal device must be connected to the meter at
the CN2 input connector and operational. Display values are
configured manually through the three keys, as in the previous
case. This method is suitable when signal values at each point are
unknown but, it is possible to drive the process to the conditions
defined by these extreme points.
DPM2 Process User Manual, 1st Edition
15
