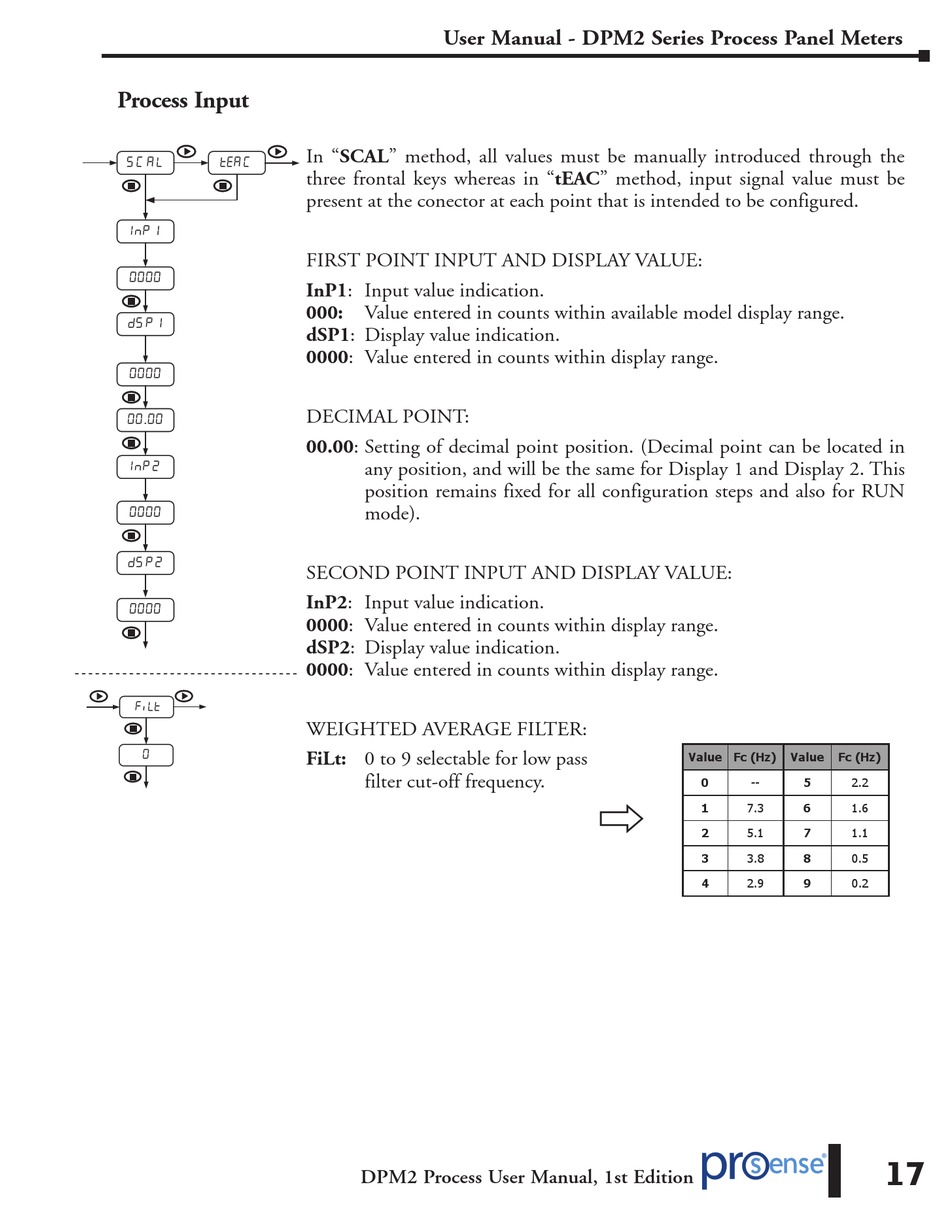

Process Input

     
  

  

.
  

  

  

User Manual - DPM2 Series Process Panel Meters
In "SCAL" method, all values must be manually introduced through the
three frontal keys whereas in "tEAC" method, input signal value must be
present at the conector at each point that is intended to be configured.
FIRST POINT INPUT AND DISPLAY VALUE:
InP1: Input value indication.
000: Value entered in counts within available model display range.
dSP1: Display value indication.
0000: Value entered in counts within display range.
DECIMAL POINT:
00.00: Setting of decimal point position. (Decimal point can be located in
any position, and will be the same for Display 1 and Display 2. This
position remains fixed for all configuration steps and also for RUN
mode).
SECOND POINT INPUT AND DISPLAY VALUE:
InP2: Input value indication.
0000: Value entered in counts within display range.
dSP2: Display value indication.
0000: Value entered in counts within display range.
WEIGHTED AVERAGE FILTER:
FiLt: 0 to 9 selectable for low pass
filter cut-off frequency.
DPM2 Process User Manual, 1st Edition
Value Fc (Hz) Value Fc (Hz)
0 -- 5 2.2
1 6
7.3 1.6
2 7
5.1 1.1
3 8
3.8 0.5
4 2.9 9 0.2
