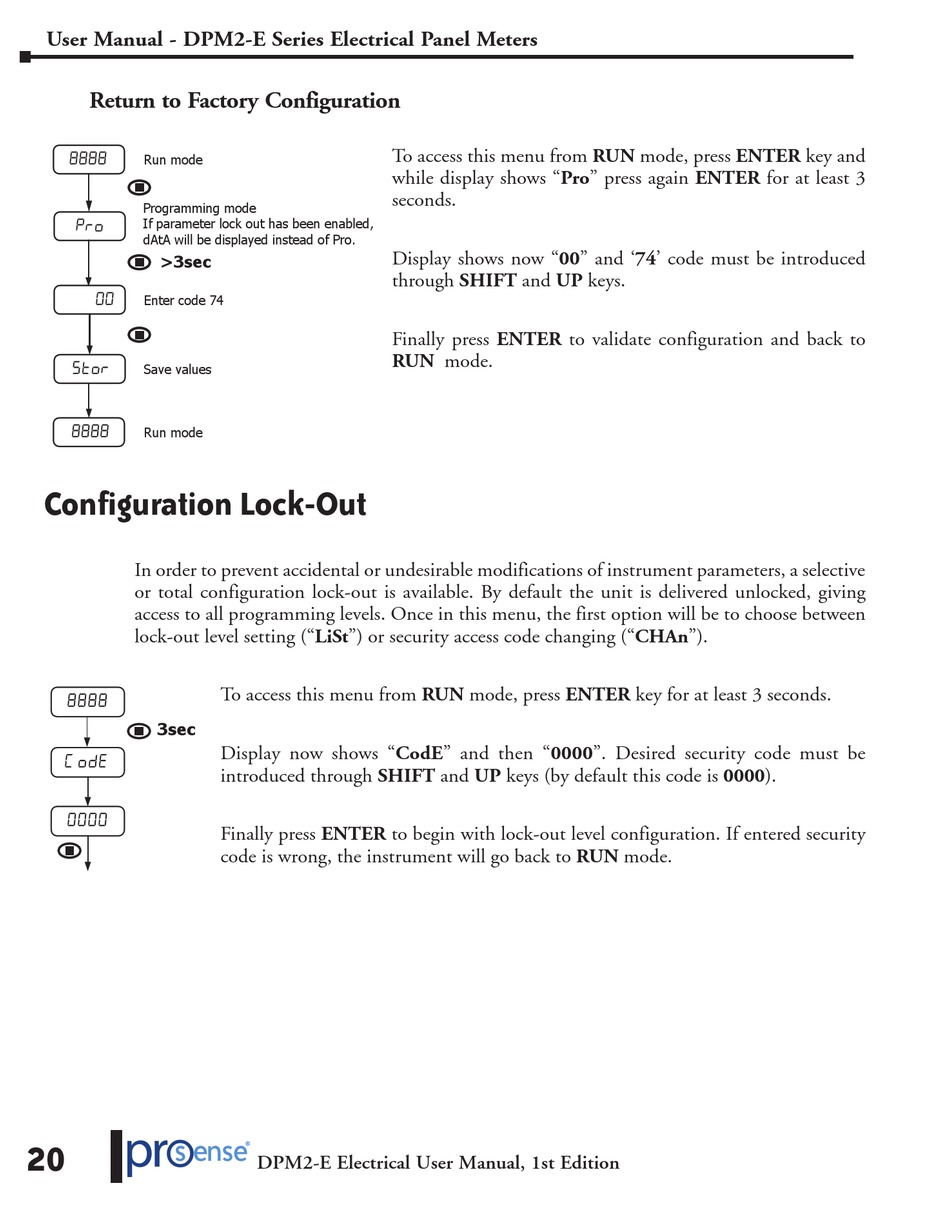

Return to Factory Configuration


Run mode
Programming mode
 If parameter lock out has been enabled,
dAtA will be displayed instead of Pro.
>3sec

Enter code 74

Save values

Run mode

Configuration Lock-Out

In order to prevent accidental or undesirable modifications of instrument parameters, a selective
or total configuration lock-out is available. By default the unit is delivered unlocked, giving
access to all programming levels. Once in this menu, the first option will be to choose between
lock-out level setting ("LiSt") or security access code changing ("CHAn").

3sec
 

20
To access this menu from RUN mode, press ENTER key and
while display shows "Pro" press again ENTER for at least 3
seconds.
Display shows now "00" and '74' code must be introduced
through SHIFT and UP keys.
Finally press ENTER to validate configuration and back to
RUN mode.
To access this menu from RUN mode, press ENTER key for at least 3 seconds.
Display now shows "CodE" and then "0000". Desired security code must be
introduced through SHIFT and UP keys (by default this code is 0000).
Finally press ENTER to begin with lock-out level configuration. If entered security
code is wrong, the instrument will go back to RUN mode.
