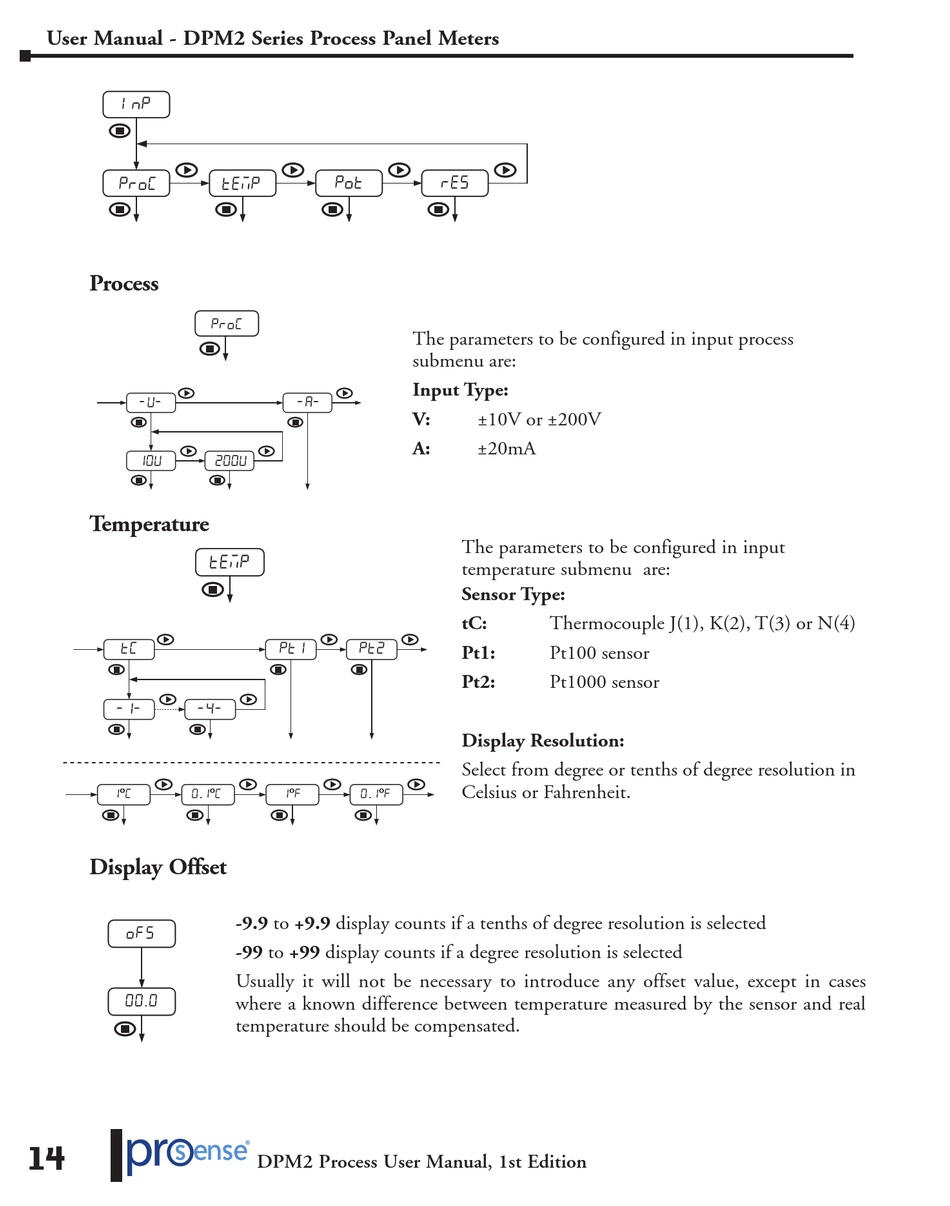

User Manual - DPM2 Series Process Panel Meters



Process




Temperature


 
º .º

Display Offset


.
14






 
º .º
-9.9 to +9.9 display counts if a tenths of degree resolution is selected
-99 to +99 display counts if a degree resolution is selected
Usually it will not be necessary to introduce any offset value, except in cases
where a known difference between temperature measured by the sensor and real
temperature should be compensated.
DPM2 Process User Manual, 1st Edition

The parameters to be configured in input process
submenu are:
Input Type:
V: ±10V or ±200V
A: ±20mA
The parameters to be configured in input
temperature submenu are:
Sensor Type:
tC:
Thermocouple J(1), K(2), T(3) or N(4)
Pt1: Pt100 sensor
Pt2: Pt1000 sensor
Display Resolution:
Select from degree or tenths of degree resolution in
Celsius or Fahrenheit.
