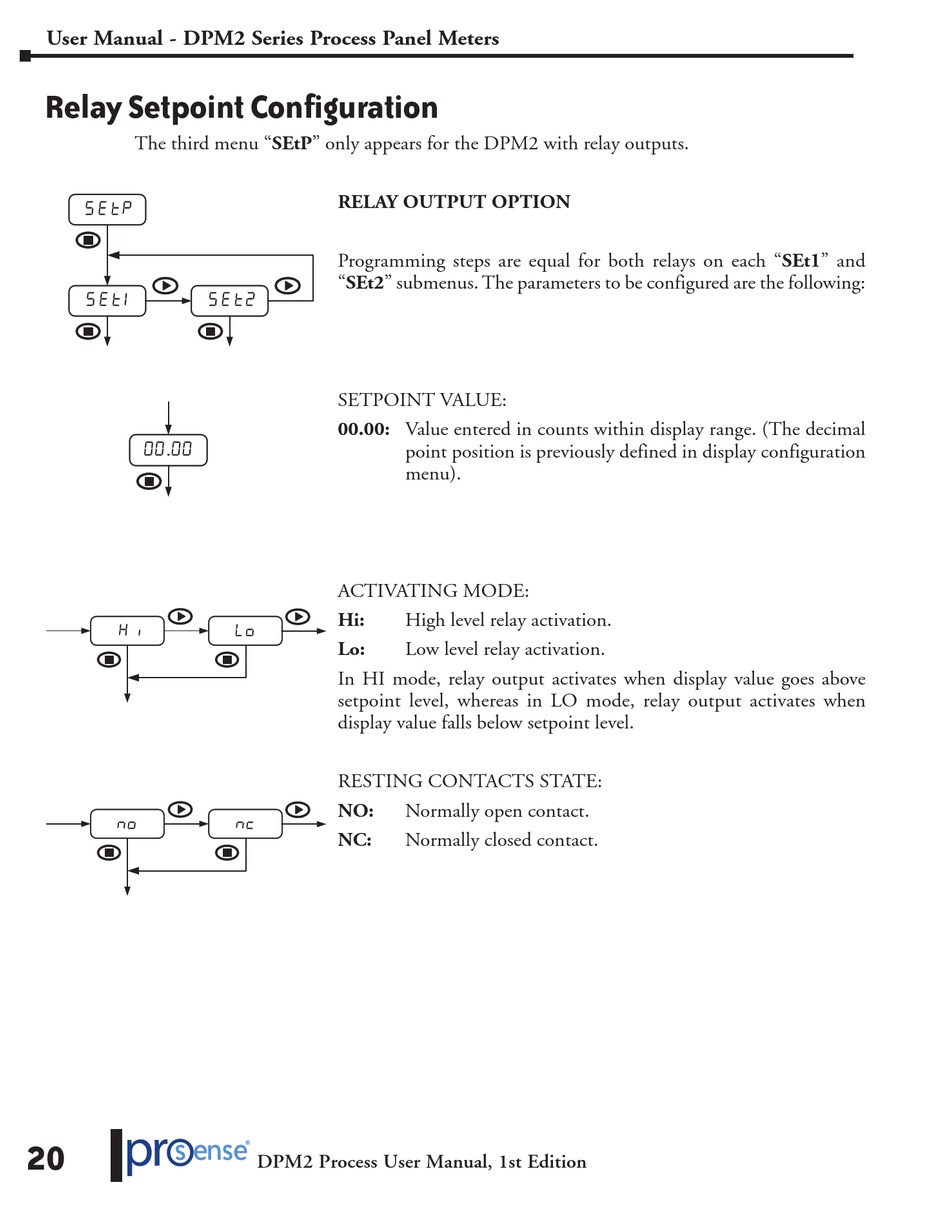

Relay Setpoint Configuration

The third menu "SEtP" only appears for the DPM2 with relay outputs.
  
   
.
 

20
RELAY OUTPUT OPTION
Programming steps are equal for both relays on each "SEt1" and
"SEt2" submenus. The parameters to be configured are the following:
  
SETPOINT VALUE:
00.00: Value entered in counts within display range. (The decimal
ACTIVATING MODE:
Hi:

Lo:
In HI mode, relay output activates when display value goes above
setpoint level, whereas in LO mode, relay output activates when
display value falls below setpoint level.
RESTING CONTACTS STATE:
NO:

NC:
DPM2 Process User Manual, 1st Edition
point position is previously defined in display configuration
menu).
High level relay activation.
Low level relay activation.
Normally open contact.
Normally closed contact.
