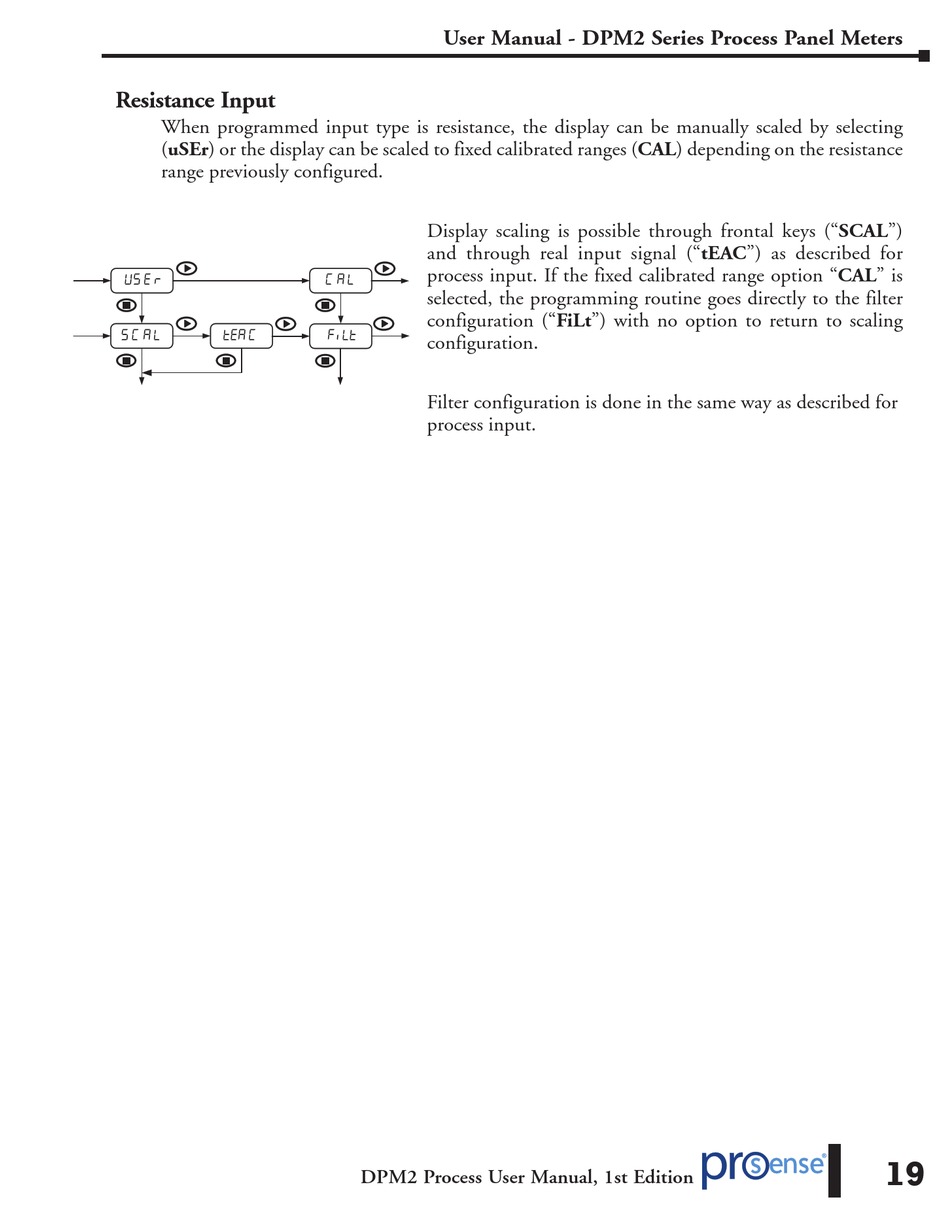

Resistance Input

When programmed input type is resistance, the display can be manually scaled by selecting
(uSEr) or the display can be scaled to fixed calibrated ranges (CAL) depending on the resistance
range previously configured.
  
     
User Manual - DPM2 Series Process Panel Meters
Display scaling is possible through frontal keys ("SCAL")
and through real input signal ("tEAC") as described for
process input. If the fixed calibrated range option "CAL" is
  
selected, the programming routine goes directly to the filter
configuration ("FiLt") with no option to return to scaling
  
configuration.
Filter configuration is done in the same way as described for
process input.
