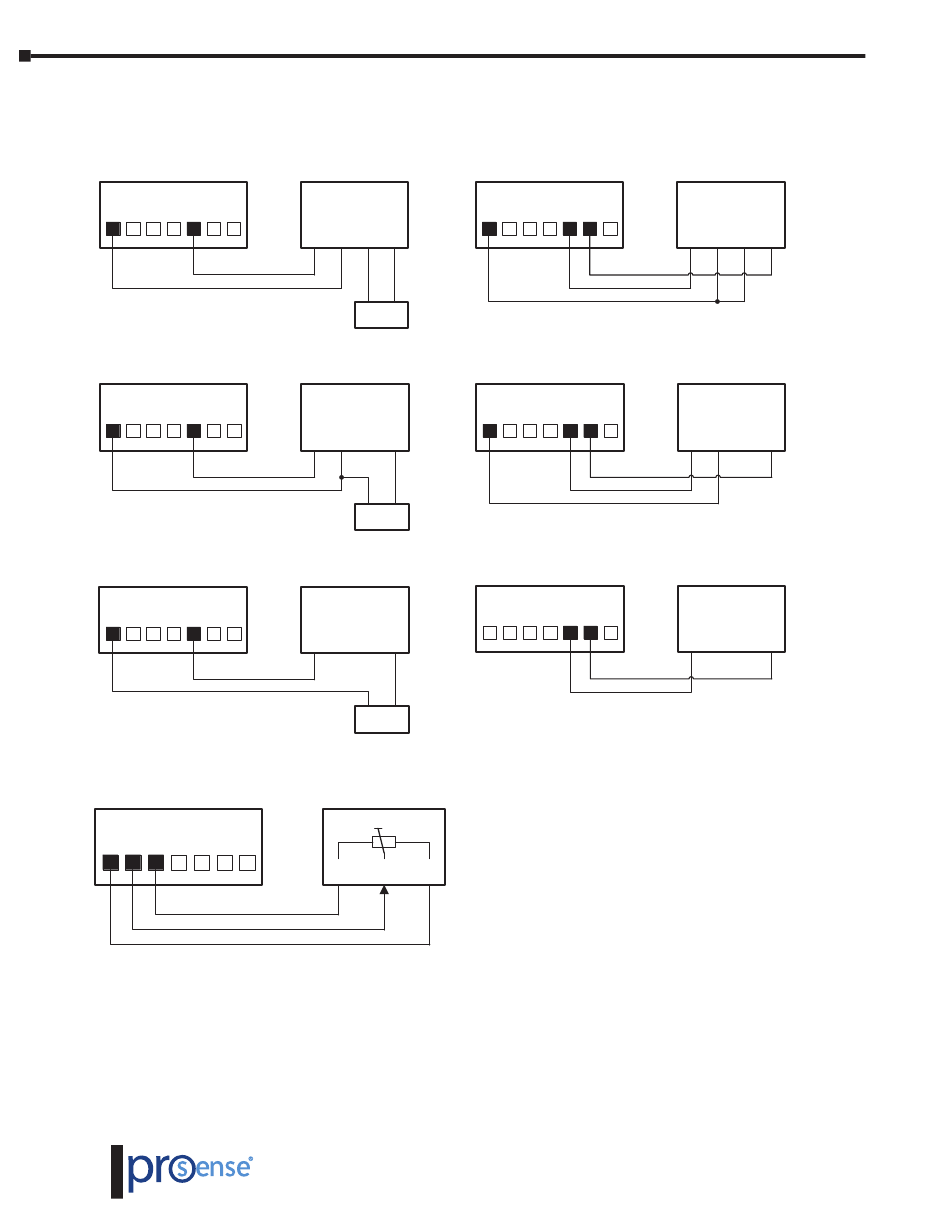

Process Input Signal Wiring Diagrams (mA)

4 WIRE CONNECTION WITH EXTERNAL EXCITATION
DPM2
1 5
+mA
COM.
3 WIRE CONNECTION WITH EXTERNAL EXCITATION
DPM2
1
5
+mA
COM.
2 WIRE CONNECTION WITH EXTERNAL EXCITATION
DPM2
1
5
+mA
COM.
Potentiometer Input Wiring Diagram (Ω)
DPM2
1 2 3
TERM.2
CENTER (WIPER)
TERM.1
NOTE:
Do not perform measurements with potentiometer subjected to external voltage, since it may
interfere in the measurement, alter the reading and even cause serious damages on this unit.
10
TRANSDUCER
0-20mA
4-20mA
+OUT -OUT -EXC. +EXC.
- +
EXC.
TRANSDUCER
0-20mA
4-20mA
+OUT -OUT +EXC.
- +
EXC.
TRANSDUCER
4-20mA
+OUT +EXC.
- +
EXC.
POTENTIOMETER
CENTER
TERM.2 (WIPER) TERM.1
DPM2 Process User Manual, 1st Edition
4 WIRE CONNECTION WITH EXCITATION SUPPLIED BY THE DPM2
DPM2
1 5 6
+EXC.
+mA
COM.
3 WIRE CONNECTION WITH EXCITATION SUPPLIED BY THE DPM2
DPM2
1
5 6
+EXC.
+mA
COM.
2 WIRE CONNECTION WITH EXCITATION SUPPLIED BY THE DPM2
DPM2
5 6
+EXC.
+mA
TRANSDUCER
0-20mA
4-20mA
+OUT -OUT -EXC. +EXC.
TRANSDUCER
0-20mA
4-20mA
+OUT -OUT +EXC.
TRANSDUCER
4-20mA
+OUT +EXC.
