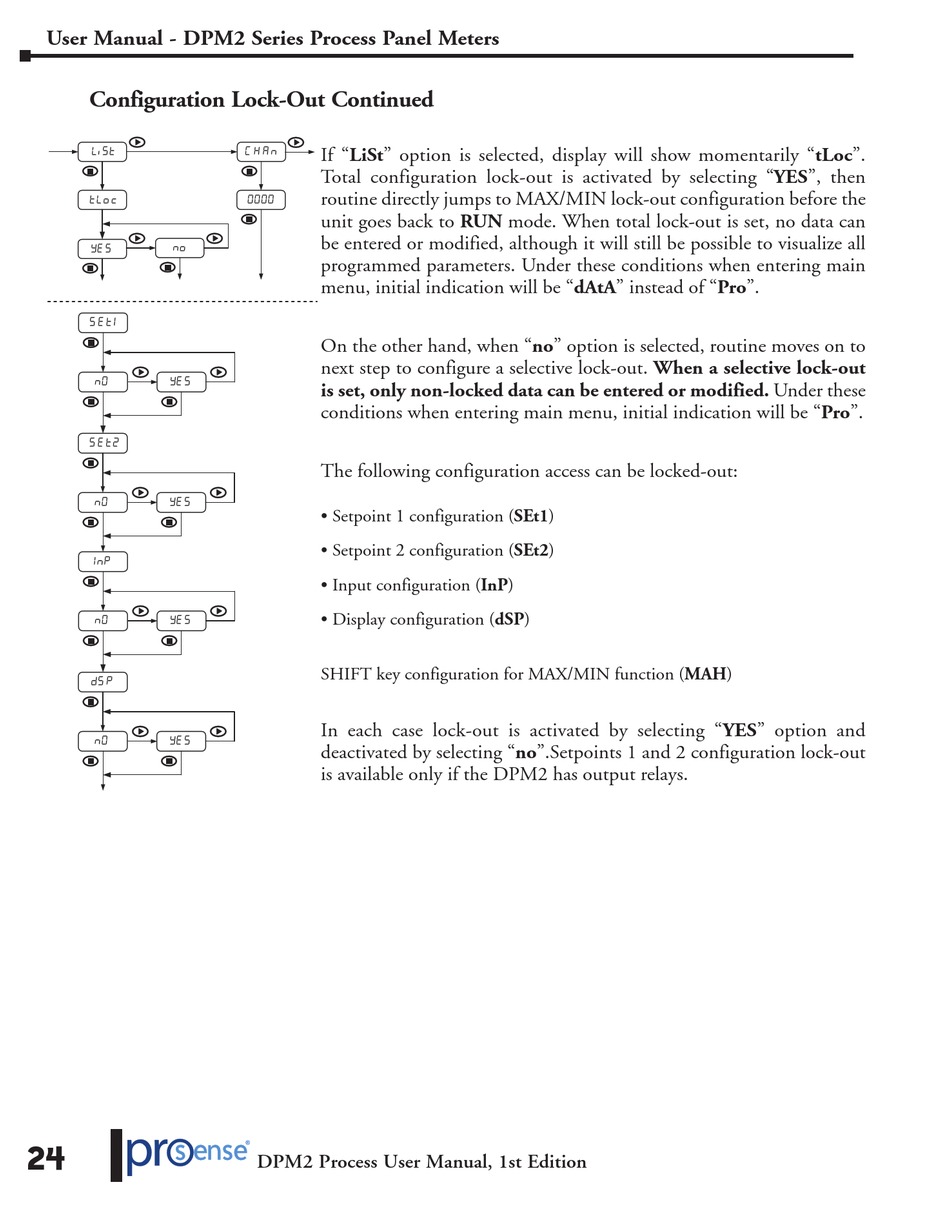

Configuration Lock-Out Continued
  
 

 
   
  
  
  
 
  
 
  
24
    If "LiSt" option is selected, display will show momentarily "tLoc".
Total configuration lock-out is activated by selecting "YES", then
routine directly jumps to MAX/MIN lock-out configuration before the

unit goes back to RUN mode. When total lock-out is set, no data can
be entered or modified, although it will still be possible to visualize all
programmed parameters. Under these conditions when entering main
menu, initial indication will be "dAtA" instead of "Pro".
On the other hand, when "no" option is selected, routine moves on to
next step to configure a selective lock-out. When a selective lock-out
is set, only non-locked data can be entered or modified. Under these
conditions when entering main menu, initial indication will be "Pro".
The following configuration access can be locked-out:
• Setpoint 1 configuration (SEt1)
• Setpoint 2 configuration (SEt2)
• Input configuration (InP)
• Display configuration (dSP)
SHIFT key configuration for MAX/MIN function (MAH)
In each case lock-out is activated by selecting "YES" option and
deactivated by selecting "no".Setpoints 1 and 2 configuration lock-out
is available only if the DPM2 has output relays.
