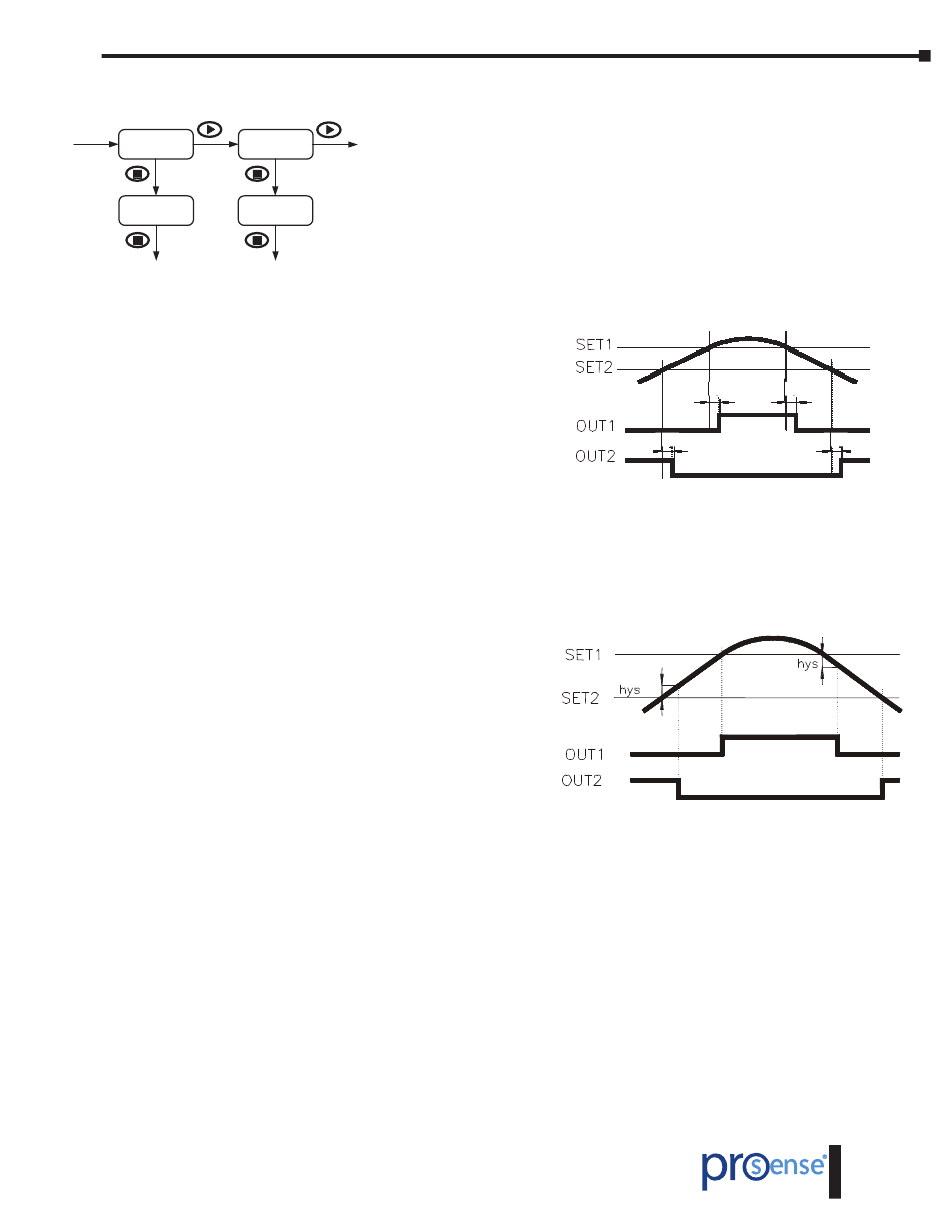

Time Delay:
Both relay output actions can be controlled by a
configurable time delay from 0 up to 99.9 seconds.
Time delay activation starts when display value
reaches each setpoint 'SET' either increasing or
decreasing.
Asymmetrical Hysteresis:
Both relay output actions can be controlled by a hysteresis level which is configurable in
counts within full available display. Decimal point position is the previously defined in display
configuration menu.
Asymmetrical hysteresis action only starts in the
output deactivation edge, the 'hys' as indicated on
the right figure.
Note that outputs activation is not affected by
hysteresis and they activate in each case just when
setpoint 'SET' is reached by display.
User Manual - DPM2 Series Process Panel Meters
TIME DELAY OR HYSTERESIS:
dLy: Programmable delay from 0 to 99.9s.
HyS: Hysteresis in counts within display range.
DPM2 Process User Manual, 1st Edition
dly
dly
Time delay for OUT1 (HI mode) and for OUT2 (LO mode)
Hysteresis delay for OUT1 (HI mode) and for OUT2 (LO mode)
dly
dly
