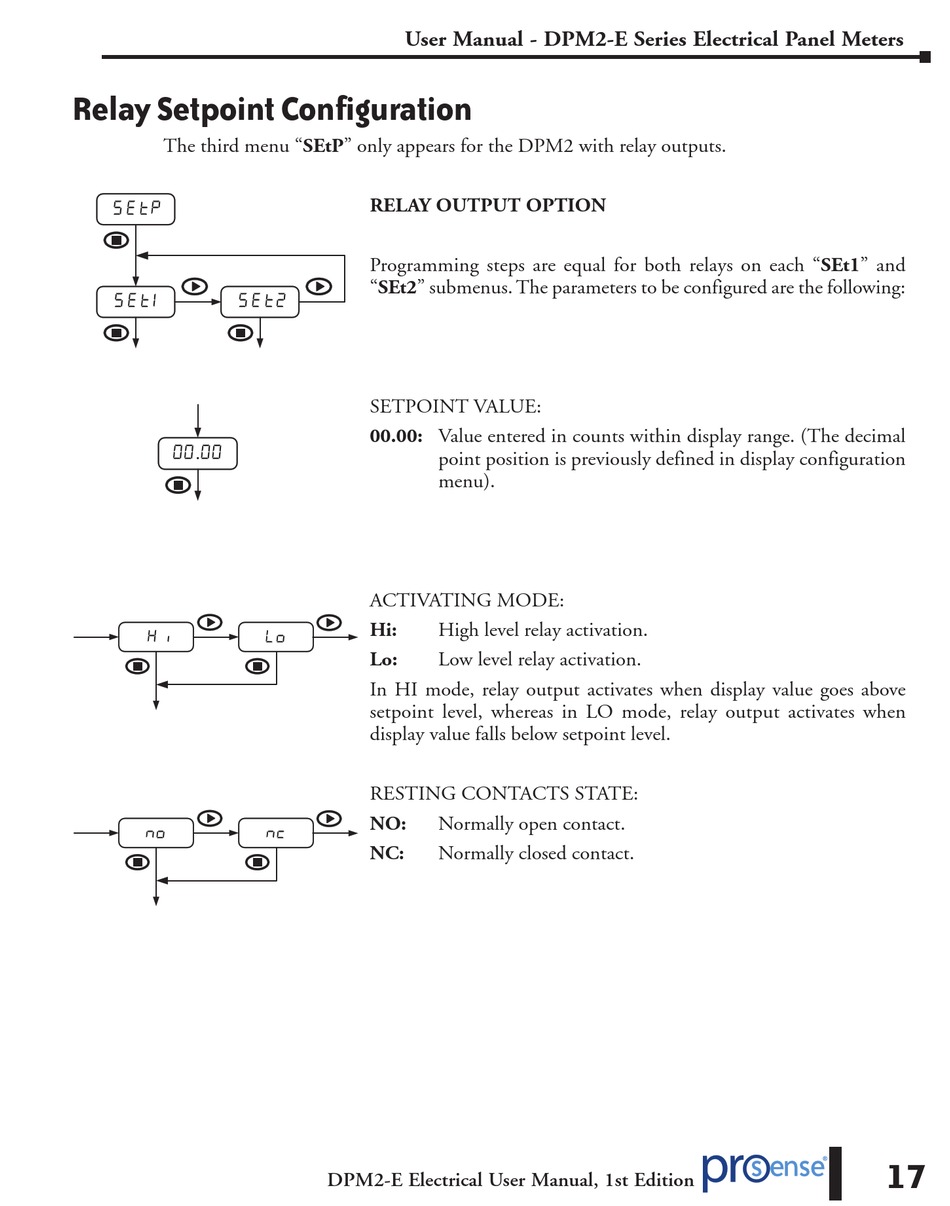

Relay Setpoint Configuration

The third menu "SEtP" only appears for the DPM2 with relay outputs.
  
      
.
 

User Manual - DPM2-E Series Electrical Panel Meters
RELAY OUTPUT OPTION
Programming steps are equal for both relays on each "SEt1" and
"SEt2" submenus. The parameters to be configured are the following:
SETPOINT VALUE:
00.00: Value entered in counts within display range. (The decimal
point position is previously defined in display configuration
menu).
ACTIVATING MODE:
Hi: High level relay activation.

Lo:
Low level relay activation.
In HI mode, relay output activates when display value goes above
setpoint level, whereas in LO mode, relay output activates when
display value falls below setpoint level.
RESTING CONTACTS STATE:
NO: Normally open contact.

NC: Normally closed contact.
