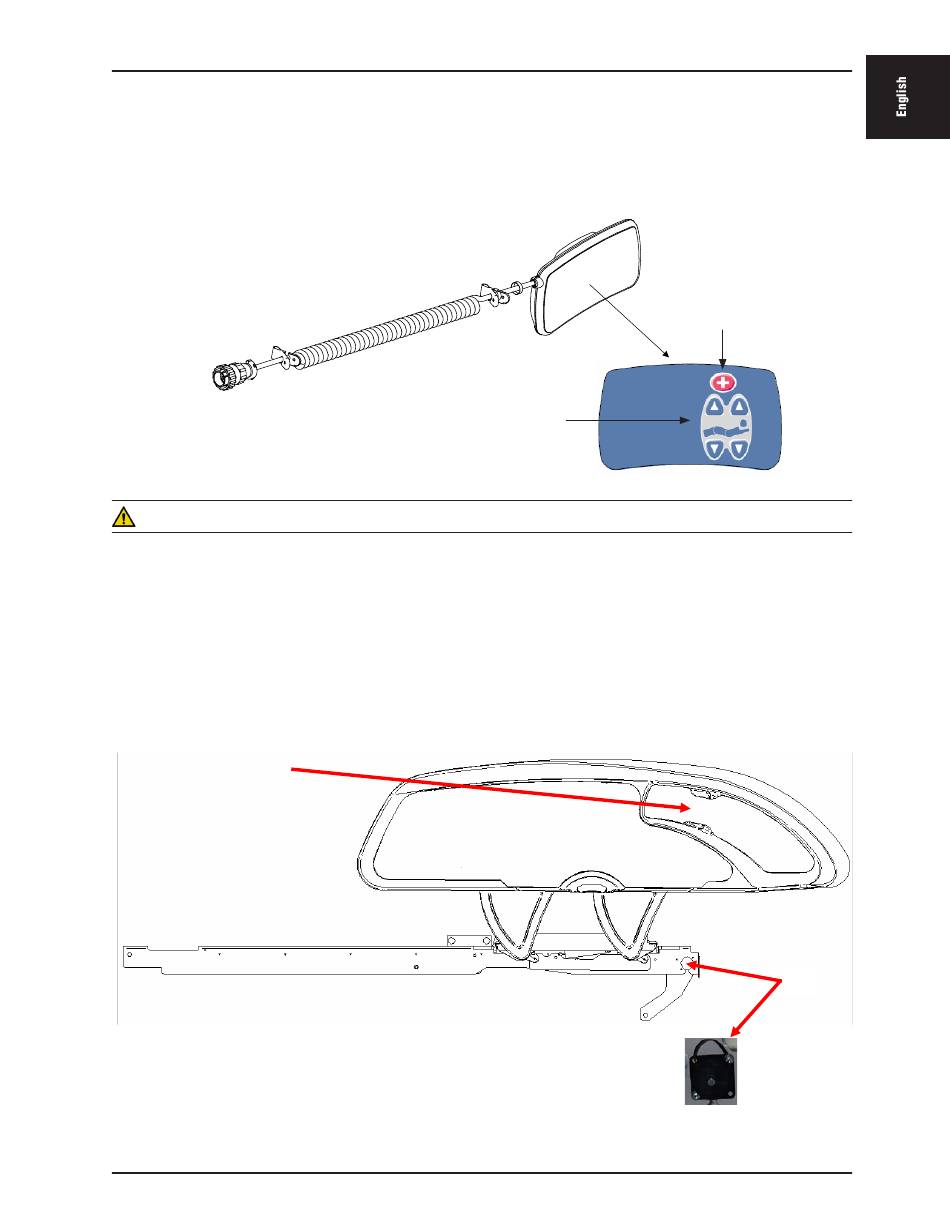

Pendant with Motion Control/Nurse Call - FA64194

The Optional Pendant with Motion Control and Nurse Call was designed to give the patient control over the bed's
motion and the ability to contact the nurses from the bed when needed .
The bed must be configured and synchronized with the hospital system in order for the Nurse Call function to be
available .
WARNING
The Weigh system as well as the Bed Exit system must be adjusted if this accessory is added when either system is
in function . Refer to the "Add/Remove Equipment" from the bed procedure on
INSTALLATION
Required Tools: None
1 . Plug the cable connector into connector (A) located on the right of the upper frame .
2 . Install the removable pendant on the right foot siderail .
Insert the removable pendant
in in this space. Slide it until it
clips.
www.stryker.com
Motion Control
Note: Illustration may differ according to bed model.
2131-009-005 REV A
Nurse Call
page 33 .
Return To Table of Contents
A
1-71
