Right Fit Oxygen Bottle Holder - FA64203

The Optional Right Fit Oxygen Bottle Holder is designed to support the oxygen bottle on the headboard .
INSTALLATION
Required Tools: None

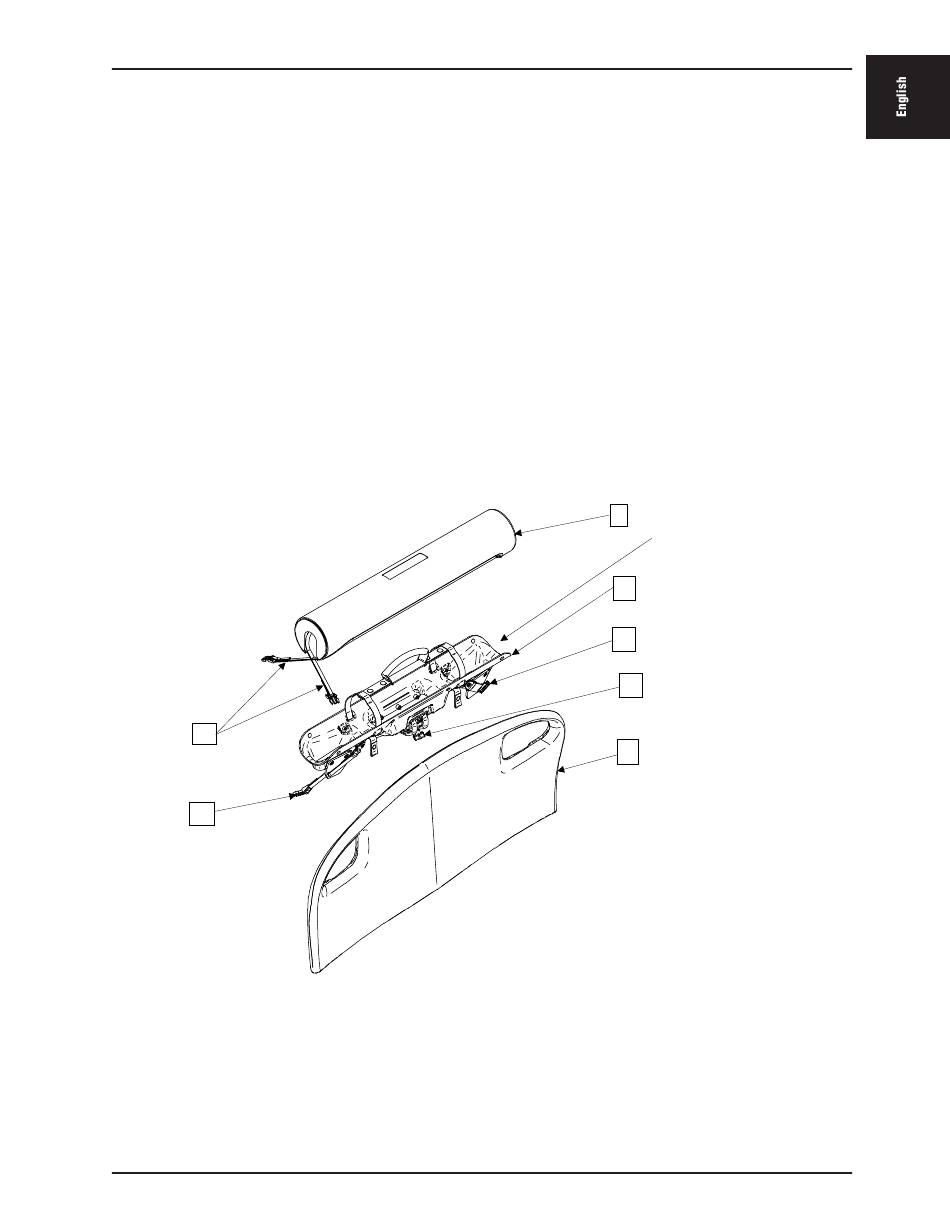

1 . Install bottle holder (A) on headboard (B) .
2 . Screw the holder handle (C) until the holder is installed properly on the headboard .
3 . Route the number 3 straps (D and E) through the holes in the headboard and attach them to their fasteners .
4 . Insert the oxygen bottle in the holder .
5 . Install the cover (F) on the holder and tie the number 1 straps (G) together .
Note: The cover is reversible. It can be placed so that the opening is on the right or on the left of the bed to
ease the use.
