Zoom ® Drive Operations (Model 2141); Using The Zoom ® Drive (Model 2141) - Stryker InTouch FL27 Operation Manual

ZOOM
USING THE ZOOM DRIVE (MODEL 2141)
®
1 . Disconnect the bed power cord from the wall
socket .
2 . Push the Drive button (see Figure 24) located on
either the head end siderail or on the footboard .
3 . The button will backlight and the LED will light
up .
Note
• Handles might be hidden in the head section (see
Figure 25) .
• To take them out you have to unfold them and
pull up to make sure they lock into place (See
Figure 26) .
4 . Use handles as follows:
• To move the bed forward, push on the
handles while holding the yellow triggers .
• To move the bed backward, pull on the
handles while holding the yellow triggers .
• To stop the movement, release both yellow
triggers and stop pushing or pulling on the
bed .
Note
• The speed of the bed's movement will change
according to the strength used to push or pull .
• If the bed battery charge level become too low,
the motorized wheel will retract (raise) while
driving, or won't go down .
www.stryker.com
Drive Operations (Model 2141)
®
2131-009-005 REV A

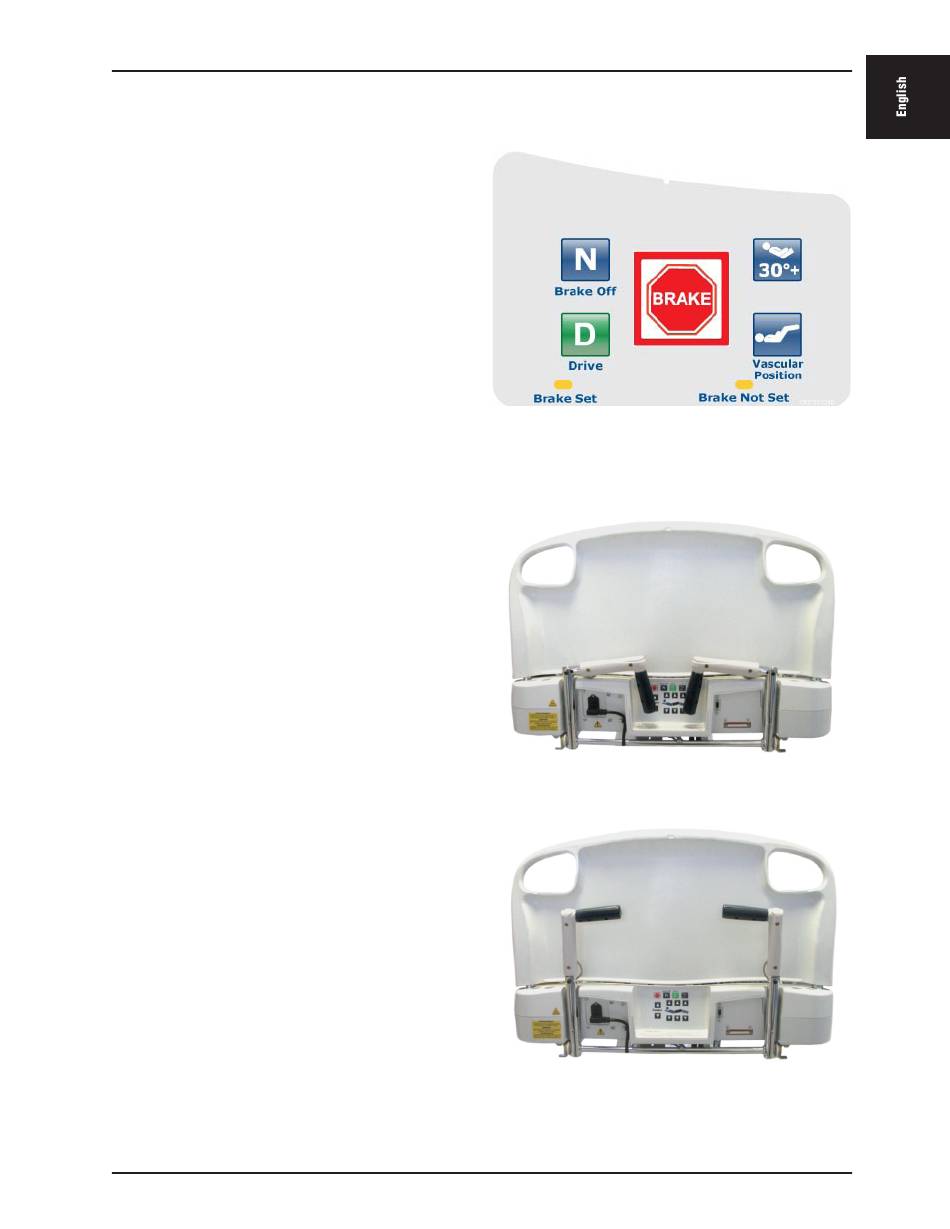

Figure 24
Figure 25
Figure 26
