Monitor Tray (Continued) - FA64214
OPERATION

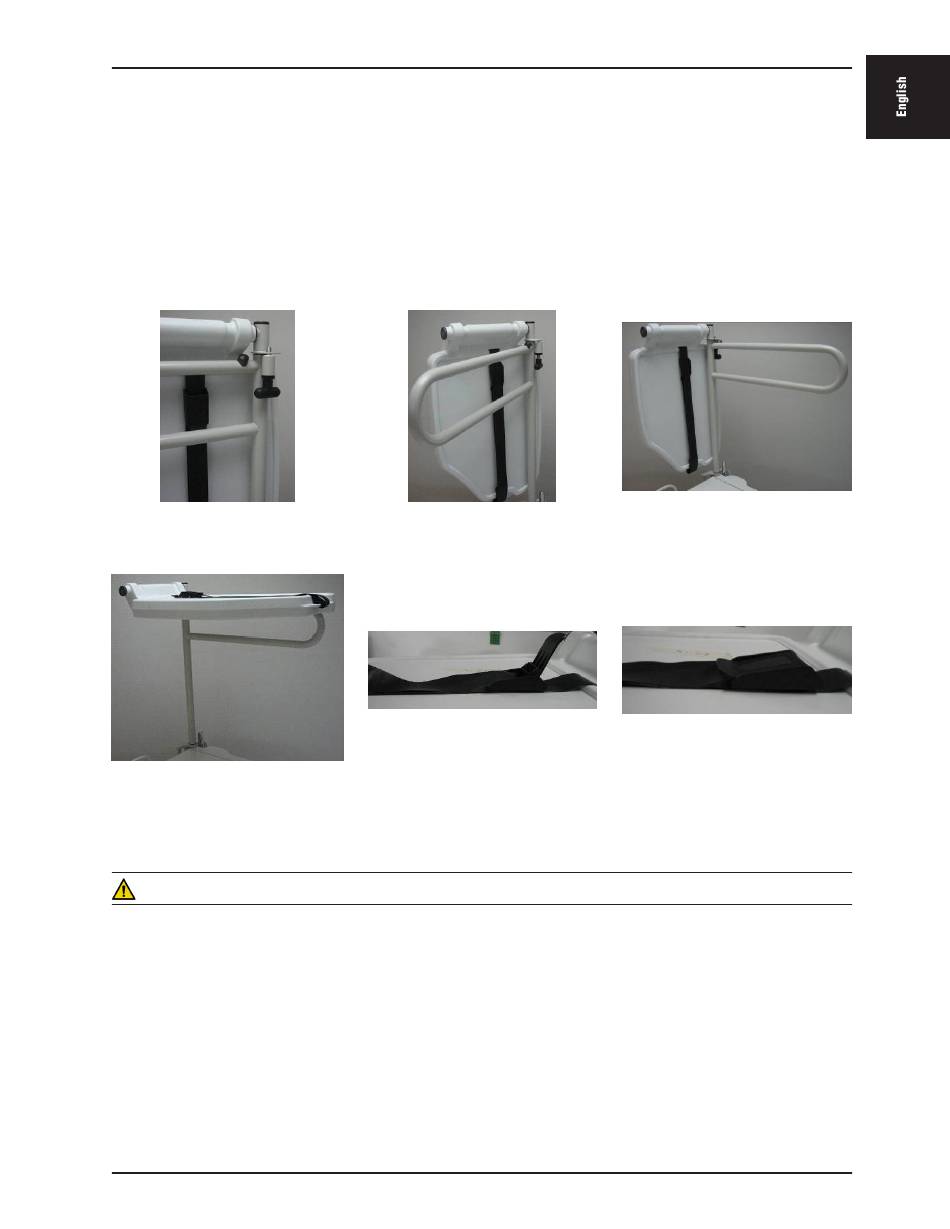

1 . Pull the lock down (see Figure G) and turn the tubular support 90° (see Figure H) to get it perpendicular to the
board (see Figure I) then release the lock .
2 . Hold the bottom of the plastic tray and flip it up and over so it rests on the tubular support . Apply a pressure on
the tray to stabilize it on the tubular suppport (see Figure J) .
3 . Secure the monitor to the tray using the strap (see Figure K, L) .
Note: The litter should be flat before installing the transport tray.
Figure G - pull the lock
Figure J - stabilize tray
WARNING
• The maximum load capacity of the tray is 40 lbs (18kg)
• The maximum load capacity of the tubular support is 150 lbs (68 kg)
www.stryker.com
Figure H - turn the tubular support
Figure K - secure with straps
2131-009-005 REV A
Figure I - pendicular to board
Figure L - secure with straps
