Installation and Assembly
appr. 37 (1.46)

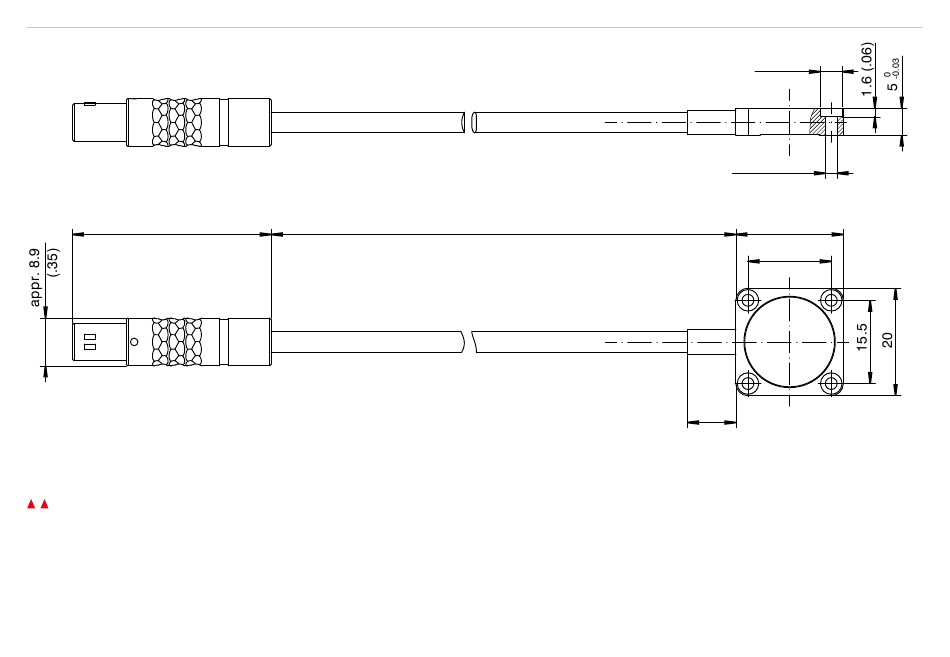

Fig. 8 Dimensional drawing of CSHA2FL-CRAxx flat sensor with integrated cable, measuring range = 2 mm nominal, dimensions in mm
Cable length x = 5 or 15 m
Sensor active measuring area
4.3

Sensor Cable

The sensor is connected to the controller via the sensor cable provided.
This is done simply by plugging it in. The plug connection will lock automatically. You can check that the fit is tight by pulling on the
connector housing (cable socket). You can unlock and release the plug connection by pulling on the knurled housing sleeve of the
cable socket.
capaNCDT 61x4
Cable length 5 m or 15 m
ø4 (4x)
(.16 dia.)
ø2.2 (4x)
(.09 dia.)
20 (.79)
15.5 (.61)
9 (.35)
Page 17
