Installation and Assembly
4.4
Controller
42.0 (1.65)
Mounting holes
for M4 screws

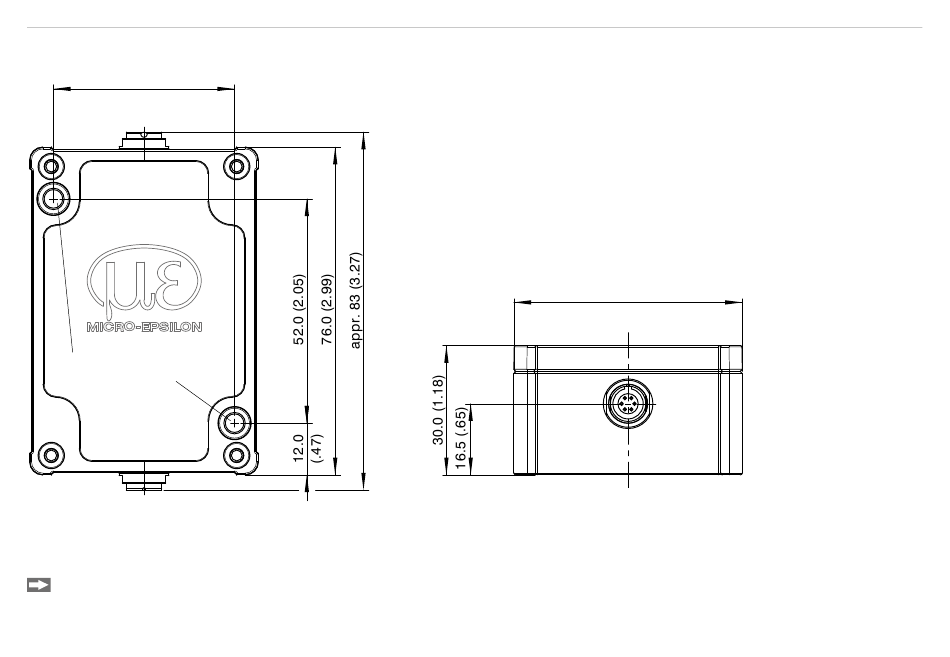

Fig. 9 Dimensional drawing of controller
4.5
Ground Connection, Grounding
Ensure sufficient grounding of the target, for example by connecting it to the sensor or the power supply ground.
capaNCDT 61x4
53.0 (2.09)
Page 18
