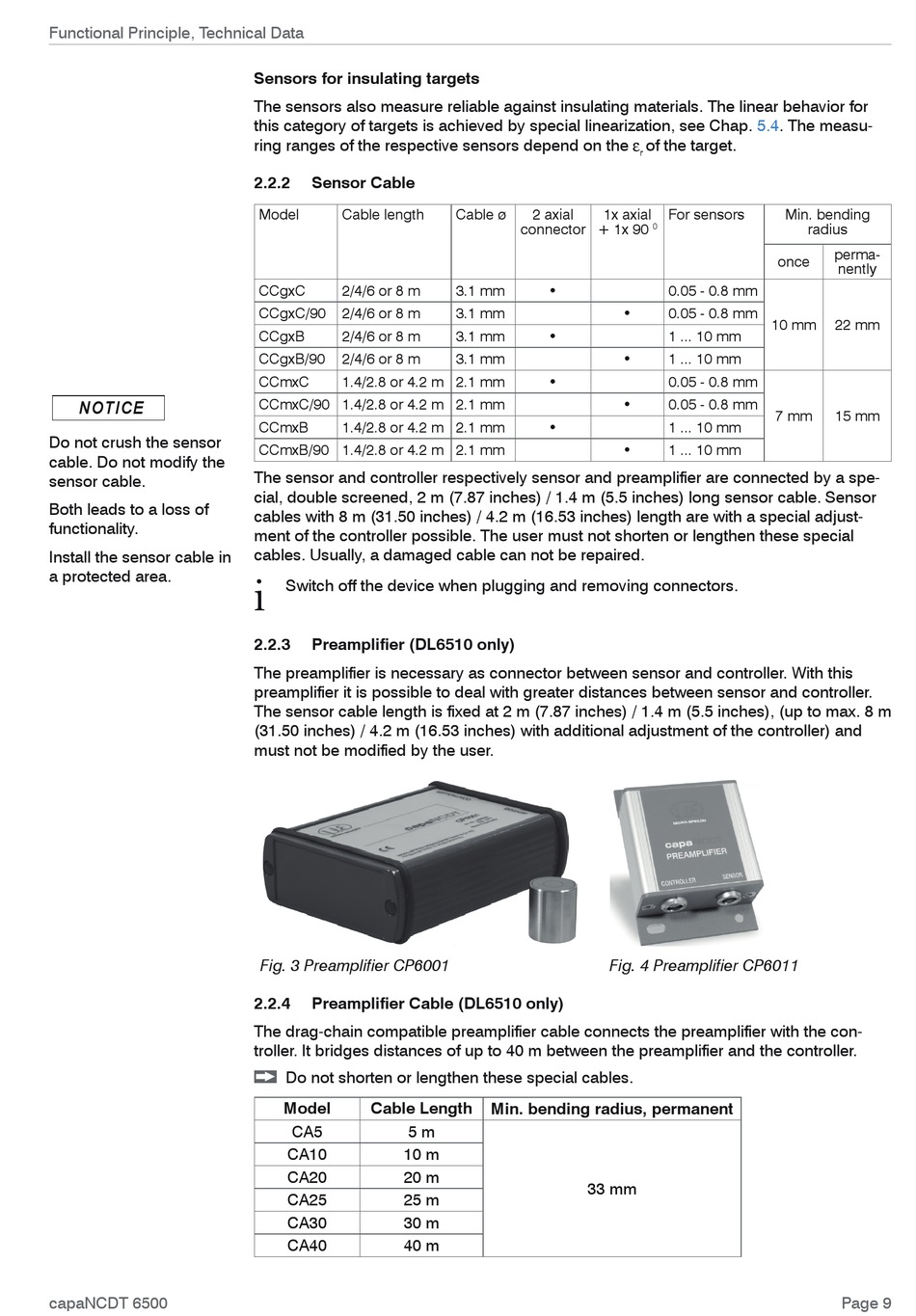

Functional Principle, Technical Data
NOTICE
Do not crush the sensor
cable. Do not modify the
sensor cable.
Both leads to a loss of
functionality.
Install the sensor cable in
a protected area.
capaNCDT 6500
Sensors for insulating targets
The sensors also measure reliable against insulating materials. The linear behavior for
this category of targets is achieved by special linearization, see Chap. 5.4. The measu-
ring ranges of the respective sensors depend on the e
2.2.2
Sensor Cable
Model
Cable length
CCgxC
2/4/6 or 8 m
CCgxC/90
2/4/6 or 8 m
CCgxB
2/4/6 or 8 m
CCgxB/90
2/4/6 or 8 m
CCmxC
1.4/2.8 or 4.2 m 2.1 mm
CCmxC/90 1.4/2.8 or 4.2 m 2.1 mm
CCmxB
1.4/2.8 or 4.2 m 2.1 mm
CCmxB/90 1.4/2.8 or 4.2 m 2.1 mm
The sensor and controller respectively sensor and preamplifier are connected by a spe-
cial, double screened, 2 m (7.87 inches) / 1.4 m (5.5 inches) long sensor cable. Sensor
cables with 8 m (31.50 inches) / 4.2 m (16.53 inches) length are with a special adjust-
ment of the controller possible. The user must not shorten or lengthen these special
cables. Usually, a damaged cable can not be repaired.
i
Switch off the device when plugging and removing connectors.
2.2.3
Preamplifier (DL6510 only)
The preamplifier is necessary as connector between sensor and controller. With this
preamplifier it is possible to deal with greater distances between sensor and controller.
The sensor cable length is fixed at 2 m (7.87 inches) / 1.4 m (5.5 inches), (up to max. 8 m
(31.50 inches) / 4.2 m (16.53 inches) with additional adjustment of the controller) and
must not be modified by the user.
Fig. 3 Preamplifier CP6001
2.2.4
Preamplifier Cable (DL6510 only)
The drag-chain compatible preamplifier cable connects the preamplifier with the con-
troller. It bridges distances of up to 40 m between the preamplifier and the controller.
Do not shorten or lengthen these special cables.
Model
Cable Length
CA5
5 m
CA10
10 m
CA20
20 m
CA25
25 m
CA30
30 m
CA40
40 m
Cable ø
2 axial
1x axial
connector
+ 1x 90
•
3.1 mm
•
3.1 mm
•
3.1 mm
•
3.1 mm
•
•
•
•
Fig. 4 Preamplifier CP6011
Min. bending radius, permanent
33 mm
of the target.
r
For sensors
Min. bending
radius
0
once
0.05 - 0.8 mm
0.05 - 0.8 mm
10 mm
1 ... 10 mm
1 ... 10 mm
0.05 - 0.8 mm
0.05 - 0.8 mm
7 mm
1 ... 10 mm
1 ... 10 mm
perma-
nently
22 mm
15 mm
Page 9
